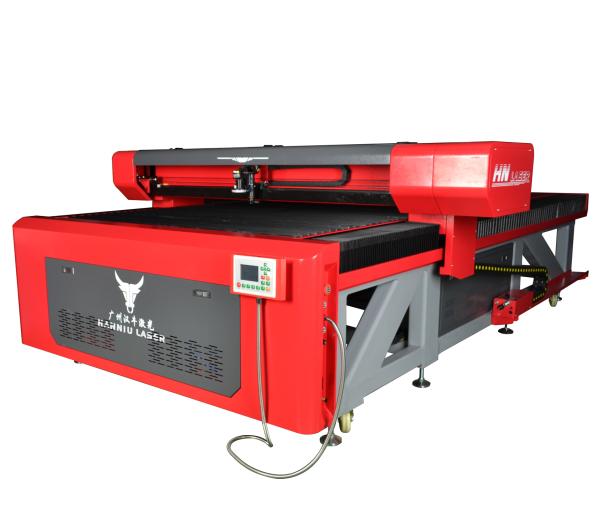

This K1325C laser engraving machine, equipped with a precision water-cooled CO2 laser generator, can engrave the surfaces of almost all non-metallic materials.
This non-metallic laser engraving machine can also be used to cut a variety of different materials.
With the cylindrical rotating accessory, you can carve any cylindrical object, such as cups, pen holders, Musical Instruments, etc.
Engraving Area | 1300*2500mm |
Laser power | 150w |
Engraving speed | 0-64000mm/min |
Resolution | 0.025mm |
Minimum shaping character | Chinese Character:2mm/Letter:1mm |
Resetting Positioning accuracy | ±0.01mm |
Transmission | Screw rod transmission |
Operating temperature | 0-45°c |
Operating humidity | 5%-95%(free of condensed water) |
Graphic format supported | BMP.GIF.JPG.PCX.TGA.TIFF.PLT.CDR.DWG.DXF |
Power supply | AC220V±10%.50Hz/60Hz |
Cooling method | Water cooling |
Gross power | <1800w |
Net weight | 680KG |
Dimension | 1950mm*3400mm*1150mm |
Max cutting thickness | 30mm(for acrylic),1.8mm(for stainless steel) |
1 Wide material adaptability
2 Precision cutting
3 Non-contact processing
4 High efficiency
5 Clean and smooth cuts
Advertisements, gifts, crafts, arts, toys, shoes, computers, model making, garments, building, paper, packaging and printing.
Applicable Materials | Cutting | Engraving |
Acrylic | Plexiglass | PMMA | Perspex | √ | √ |
Organic board | Double color sheet | √ | √ |
Wood | Plywood | Veneer | MDF | Balsa | √ | √ |
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
Fabric | Cloth | Textile | √ | √ |
Carpet | Mat | Rug | Wool Felt | √ | √ |
Paper | Cardboard | Chipboard | Press Board | √ | √ |
Plastic | √ | √ |
Fiber Glass | Filter Cloth | √ | |
Ceramic | Tile | Marble | Glass | √ | |
Coated metal/anodized metal | √ |
Company&Factory:
1 Standard plywood case, no need to steam, can export directly.
2 car-lift machine up and down loading. more safe for machine.
3 when importing, the plywood case is with fumigation-free, the procedure is simple.
4 Delivery Detail: within 3-5 days after received your payment.
1.Q: Are you a factory or trading company?
A:We are a professional manufacturer specializing in laser for about 10 years with export license.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport.
3.Q: Can you do OEM?
A: Yes, we can do OEM products as you requested.
4.Q: Where will the machines be shipped from?
A: It will be shipped from Huangpu Port Guangzhou,China.
And We will find the shipping company which will offer best and most economical freight for our customers.
But If you have a preferred carrier,that will be more helpful for us.
5.Q:How does your factory do regarding quality control?
A:Quality is priority,we always attach great importance to quality control from the very beginning to the very end:
1)All raw material we used are environmental-friendly;
2)Skillful workers care every details in handling the producing and packing processes;
3)Quality Control Department is specially responsible for quality checking in each process.
6.Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are legitimate certification company (VIP), and we support payment terms Like L/C,Escrow to ensure your money safety.And we welcome you to visit our factory.
7.Q:There are too many models, I don't know which one to choose?
A: Welcome to contact us through Trade Manager,we will recommend most suitable machine according to your specific requirements.
8.Q:How to ensure that I received the machine undamaged?
A: Our package is standard for shipping, before packing,we will confirm product undamaged, otherwise, please contact us within 2 days.
Because we've bought insurance for you, we or shipping company will be responsible!
