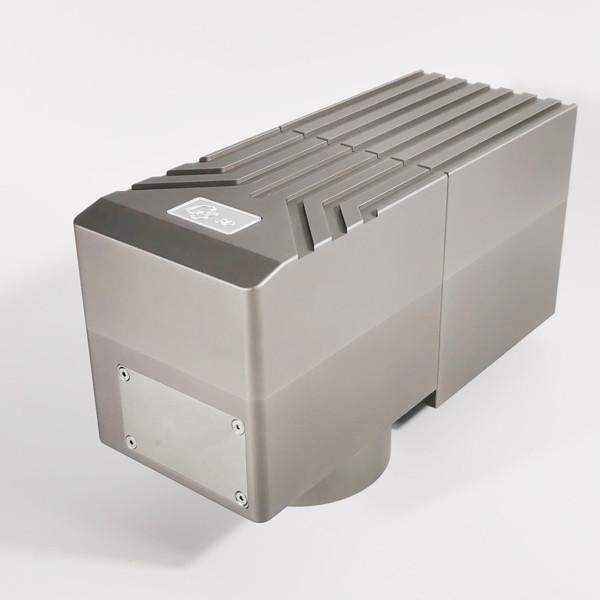

1064nm Galvo Scanner Head , Laser Engraving Head
1064nm Galvo Scanner Head , Laser Engraving Head
Specifications
Brand Name :
BJJCZ
Model Number :
G3-3D
Place of Origin :
china
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000set
Delivery Time :
3-5 work days
Packaging Details :
carton
Wavelength :
1064nm,1064nm/10.6um or other
Application :
Laser Marking,Laser Precision Marking&Engraving
name :
1064nm Galvo Scanner Head , Laser Engraving Head
keyword :
galvo scanner head
Description

High Precision and High Speed Galvanometer Scanning Head for Laser Marking, Laser Welding, and Laser Cutting...

G3 3D laser galvo scanning system is designed for high-precision and high focus shifting range, integrating data acquisition, data processing, electronic control, mechanical follower, optical imaging, optical compensation, optical scanning, and other functions.G3 3D adopts JCZ's self-developed focus shifting axis module, with faster response, faster and more stable focus shifting. Adopting various anti-interference methods, it has strong anti-interference ability, high reliability, good linearity, high repetition accuracy, and short response time. G3 3D adopts integral structure, small size, lightweight, and good sealing to ensure stability under a long time working condition.

The Ezcad3 software and DLC controller, used with G3 3D galvo scanner adopts an advanced point-by-point tracking dynamic laser beam compensation algorithm. The whole system can achieve a small focal spot, wide scanning field, and high flexibility.

1064nm Galvo Scanner Head , Laser Engraving Head

Specifications

Scanner Marking Speed 4000mm/s Positioning Speed 10000mm/s
Tracking Error 0.25ms Nonlinearity <3.5mrad/ 44°
1% Full scale ≤0.4ms Gain Drift <50PPM/K
Offset Drift <15μrad/k Drift over 8h <0.3mrad
Scan Angle ±0.35rad Mirror Aperture 10mm
Basic Interface XY2-100 Working Temp 25℃±10℃
Power ±15VDC,3A Wavelenght 1064nm/
532nm/ 355nm
Z AXIS Input Aperture 7mm/ 3mm Beam Ratio 1.4/ 3
Focus Range ±30mm Marking Area 150mm
(Replaceable F-theta lens)
