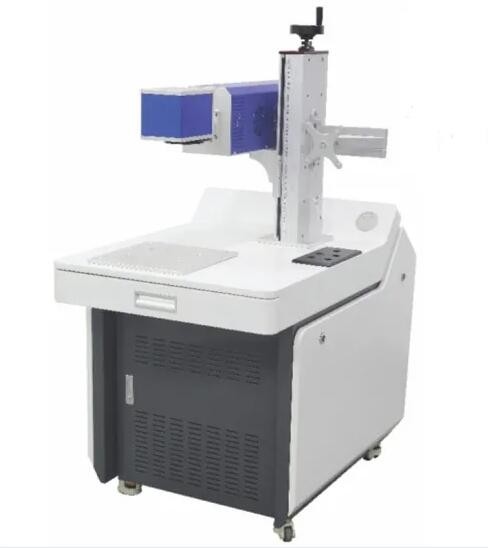

Uv 5-70w Laser Marking Machine 355nm Picosecond Laser Source
Uv 5-70w Laser Marking Machine 355nm Picosecond Laser Source
Uv 5-70w Laser Marking Machine 355nm Picosecond Laser Source
Uv 5-70w Laser Marking Machine 355nm Picosecond Laser Source
Uv 5-70w Laser Marking Machine 355nm Picosecond Laser Source
Uv 5-70w Laser Marking Machine 355nm Picosecond Laser Source
Specifications
Brand Name :
HUARAY
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
negotiated
Payment Terms :
Western Union, T/T
Supply Ability :
3-5days
Delivery Time :
5-8 work days
Packaging Details :
carton
Control software :
EZCAD
Cooling mode :
Air Cooling,Water Cooling
Application :
Laser Marking
Laser wavelength :
355nm,355
Laser source :
UV laser
Warranty :
1 Year
Laser power :
10watt 20watt 30watt 50watt
Description

Huaray Laser (A invested company of JCZ) is developing and manufacturing reliable picosecond ultrafast laser with the wavelength of infrared 1064nm, Ultraviolet 355nm(for example laser engraving machine for glassware), and Green 532nm with the power of 5W, 7W, 10W, 20W, 30W, 60W, and 70W for high precision marking, welding, and cuttings of glass, FPC, PCB, LCD, OLED, ceramic, film, wafer, battery tab...

SPECIFICATIONS PINE-532-7 PINE-532-15 PINE-532-30
Wavelength 532nm
Output Power and Energy ＞7W@1MHz ＞15W@500kHz ＞30W@1MHz
Repetition Rate 100kHz~1MHz 400kHz~1MHz 400kHz~1MHz
Pulse Width ＜10ps
Spatial Mode Tempo(M²＜1.2)
Beam Waist Diameter 1.5mm±0.2mm
Beam Circularity ＞85%
Beam Divergence ＜2mrad
Polarization Ratio ＞100:1
Polarization Direction Horizontal polarization
Beam Pointing Stability  ＜50μrad/℃
Pules Energy Stability ＜2％rms
Power Stability ＜1％rms
Maximum single pulse energy 60μJ 30μJ 60μJ
Maximum pulses energy / / /
Warm-up Time  30min
Ambient Temperature Storage 0℃~50℃
Shipping 0℃~50℃
Working 15℃~35℃
Ambient Humidity Storage 0%~65%
(No condensing)
Shipping 0%~65%
(No condensing)
Working 0%~65%
(No condensing)
Power Consumption(VAC) 1200 W
Cooling Water
Safety Level Class 4

Uv 5-70w Laser Marking Machine 355nm Picosecond Laser SourceUv 5-70w Laser Marking Machine 355nm Picosecond Laser Source
