Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder
Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder
Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder
Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder
Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder
Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder
Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder
Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder
Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder
Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder
Specifications
Place of Origin :
Guangdong, China
Brand Name :
DAPENG
Packaging Details :
Wooden boxes that meet international export standards
Price :
USD1000-3200
Model Number :
DPH-200
Certification :
CE, ISO
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
5-10 days
Condition :
New
Max. Output Power :
200W
Usage :
Jewelry Welding
Single Pulse Energy :
120J
Pulse Width :
0.1-20ms
Wavelength :
1064nm
Focal Spot Diameter :
0.3-2.5 mm
Dimensions :
1080*590*1230mm
Warranty :
2 years
Laser Source Brand :
DP LASER
Laser Head Brand :
DP LASER
Weight (KG) :
180 KG
Key Selling Points :
Easy to Operate
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
2 years
Core Components :
YAG Power
Product name :
Jewelry Laser Welding Machine
Laser type :
Nd:YAG
Application material :
Gold Silver Platinum Copper
Laser power :
200W
Application :
Jewelry Welding Products
Laser wavelength :
1064nm
Welding mode :
YAG Spot Welding
Keywords :
Jelwery Laser Welding
Power supply :
110V/220V
After-sales Service Provided :
Overseas engineers provide door-to-door service
Description

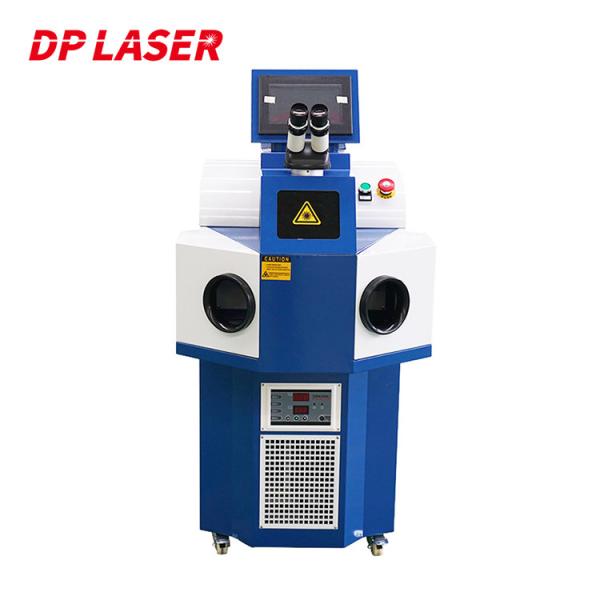

CE 200W Built-In Water Chiller YAG Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum

Product Description:

The 200W Built-in Water Chiller YAG Jewelry Laser Welding Machine is designed for welding various jewelry pieces such as rings, bangles, bracelets, and platinum items. It utilizes YAG laser technology and comes with a built-in water chiller for efficient cooling. The machine is capable of delivering a maximum output power of 200W and offers precise and reliable welding performance. With its compact dimensions of 10805901230mm, it is suitable for jewelry workshops and manufacturing plants. The laser welding machine is easy to operate and is equipped with advanced features for enhancing productivity and quality.

Features:

  • New condition machine with a warranty of 2 years.
  • Maximum output power of 200W for efficient welding.
  • Suitable for jewelry welding applications.
  • Single pulse energy of 120J and pulse width ranging from 0.1 to 20ms.
  • Laser wavelength of 1064nm for precise welding.
  • Focal spot diameter adjustable from 0.3 to 2.5mm.
  • Easy to operate with user-friendly controls.
  • Applicable in various industries such as hotels, garment shops, manufacturing plants, and more.
  • Provided with a machinery test report and video outgoing-inspection.

Technical Parameters:

Model DPH-200SS-YAG-W
Laser wavelength 1064nm
Condenser reflector Imported ceramic condensing cavity
Maximum laser power 200W
Voltage 380V three-phase / 220V single-phase (Voltage transformer is needed if for 110v)
Pulse width 0-20ms
Laser frequency 0-50Hz
Spot adjustment range 0.3-2.5mm
Cooling system Built-in water chiller 1P
Rated power 6.5KW
Power demand Standard three-phase 380V±5%/50Hz/20A Optional single-phase 220V
Packaging size(mm) 1080*590*1230mm
Gross weight(kg) 180
Usage environment temperature 10-30℃

Applications:

The YAG Jewelry Laser Welding Machine is specifically designed for jewelry welding applications. It is suitable for welding various materials including gold, silver, platinum, and copper. The machine can be used in jewelry workshops, manufacturing plants, and repair shops. Its precise and reliable welding capabilities make it ideal for creating intricate designs, repairing jewelry pieces, and ensuring strong and durable welds.

200W Built-in Water Chiller YAG Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum

Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot WelderRing Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder

Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot WelderRing Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot WelderRing Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot WelderRing Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder

Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.

We are looking for distributor. Price is more competitive.

We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
