Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Specifications
Place of Origin :
Shenzhen
Brand Name :
DAPENG
Packaging Details :
Plywood box
Supply Ability :
150 sets per month
Price :
USD1000-4500
Model Number :
DPH-1500
Certification :
CE, ISO
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
5-10 days
Condition :
New
Max. Output Power :
1000W-3000W
Usage :
metal welding
Wavelength :
1064nm
Focal Spot Diameter :
0.2-2mm
Dimensions :
1000x550x1150mm
Warranty :
1 Year
Laser Source Brand :
MAX
Weight (KG) :
230 KG
Key Selling Points :
Easy to Operate
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1.5 years
Product name :
Hand held laser welding machine
Function :
Welding Steel Tube
Welding materials :
Stainless Steel Stud
Power Consumption :
500-3000W
Cooling method :
Water Chiller Hanli
Advantage :
Welding and Cutting Double Function
Application :
Metal Stainless Steel Laser Welder
Keywords :
Fiber Laser Welding Equipment
Port :
China or SHENZHEN Ports
Description
Product Description
DAPENG 1000w 2000w 1500w Stainless Steel Aluminium Iron Handheld Laser Welding Machine Laser Welders
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Specification
Model
DPH-1000
DPH-1500
DPH-2000
DPH-3000
Laser source type
Fiber source
Fiber source
Fiber source
Fiber source
Laser Out Power
1000W
1500W
2000W
3000W
Laser wavelength
1070nm
1070nm
1070nm
1070nm
Laser Source
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Focal spot diameter
0.1-3mm
0.1-3mm
0.1-3mm
0.1-3mm
Laser frequency
1-50Hz
1-50Hz
1-50Hz
1-50Hz
Repeatability
±0.01mm
±0.01mm
±0.01mm
±0.01mm
Machine operating temperature
0~40℃
0~40℃
0~40℃
0~40℃
Electricity demand
220V/380V
220V/380V
220V/380V
220V/380V
Cooling method
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Water Chiller Hanli
Continuous operating time
24 hours
24 hours
24 hours
24 hours
Weight
150kg
150kg
150kg
150kg
Dimensions
120*60*104cm
120*60*104cm
120*60*104cm
120*60*104cm
Laser control system
Depeng Touch screen
Depeng Touch screen
Depeng Touch screen
Depeng Touch screen
Features:

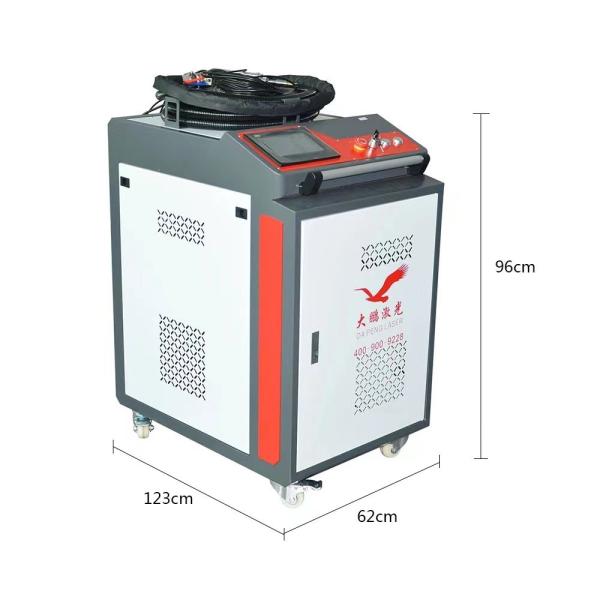

Dapeng laser handheld welding machine with simple design and nice looking , size only 120*60*104cm. Adopts world-class laser source, better beam quality and excellent welding performance. It's very easy to operate, equipped with one-key start function. All parameters are controlled by touch screen, the welding spot size is adjustable. The welding head has dual motor optional, welding path workable for straight line"-", "S" and "O" type. A full set of original welding nozzles and protective lenses are included with the package. Machine sold with automatic wire feeding system, which can weld wider gap and high welding strength requirments.
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Company Profile
Shenzhen Dapeng Laser Technology Co, Ltd. was established in 2011. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting. Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries. Dapeng laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Dapeng laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products. Dapeng Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2016, sold more than 5,000 laser equipment. Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Our Workshop
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Why Choose US
Dapeng Laser has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services. Dapeng people know that quality and service are fundamental to the survival of the company. Innovation is the foundation for the long-tem development of the company. It helps customers create value and strives to build a well-known brand in the laser equipment industry.
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Laser Welding Machine Team
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Laser Cutting Machine Team
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Oversea Marketing Team
Our Exhibition
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Our Certificates
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
CE
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
ISO
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
Packing & Delivery
We support to ship via Sea, Railway,Air, Express(UPS, DHL, EMS, Swiss Post, HongKong Post, FedEx, TNT). You also can choose the shipping method you like if you prefer another courier.
Handheld Mold Laser Welding Machine For Stainless Steel Aluminium Iron
FAQ:
Q1: I know nothing about this machine, what kind of machine should I choose?
Don't worry, you just need to tell us below simple info, then we will give you professional suggestion and quote you price very soon.
1. What do you want to cut? Sheet, pipe or both?
2. Material of the metal
3. Max thickness
Q2: When I get this machine, but I don't know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly.
Q3: If the machine have problems or borken in the future, what can you do for me?
We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer by DHL, UPS freely. Besides guarantee period, we still provide you free online services for life. If parts broken, you can order replacement parts from us.
