Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source
Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source
Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source
Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source
Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source
Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source
Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source
Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source
Specifications
Brand Name :
DAPENG
Model Number :
RFL-C1500/2000/3000
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
USD2000-USD4000
Payment Terms :
T/T
Supply Ability :
500 Sets per month
Delivery Time :
3-7 Days
Packaging Details :
Plywood box
Wavelength :
1064nm
Warranty :
2 Years
Key word :
Raycus Fiber laser cutting source
Laser type :
fiber Laser
Description

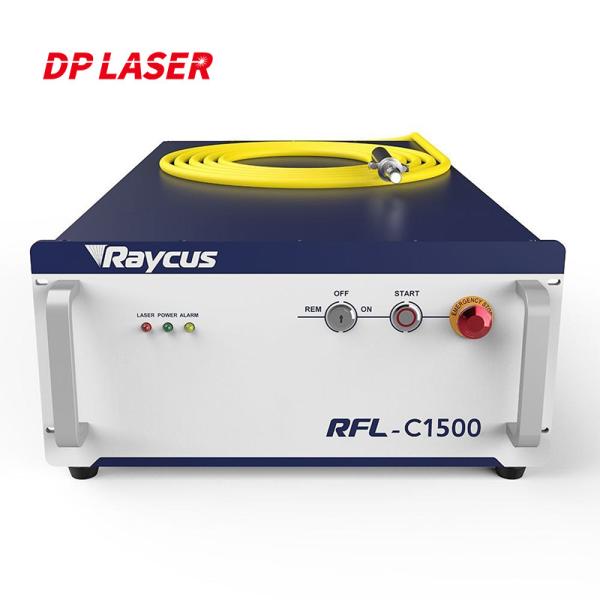

Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source

(Raycus Single Mode 1500w CW Fiber Laser Source For Laser Cutting Machine)

Prodcut Introduction

The third-generation single module CW fiber laser series developed by Raycus ranges from 300W to 3,000W, the new lasers has higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.

Model RFL-C1500X RFL-C2000X RFL-C3000S
Nominal Output Power (W) 1500 2000 3000
Operation Modes CW/Modulated
Polarization State Random
Output Power Tunability(%) 10~100
Emission Wavelength(nm) 1080±5
Output Power Instability(%) ±1.5
Modulation Frequency(Hz) 1~5000
Red Guide Laser Power(mW) 0.5~1
Beam Quality (mm×mrad) BPP <2.7 BPP <2.7 1.5~2
Fiber Core Diameter(μm) 50
Delivery Cable Length(m) 20
Power Supply 380±10% V AC,50/60Hz
Max. Power Consumption(W) 5500 6500 10000
Control Mode RS-232/AD/Ethernet

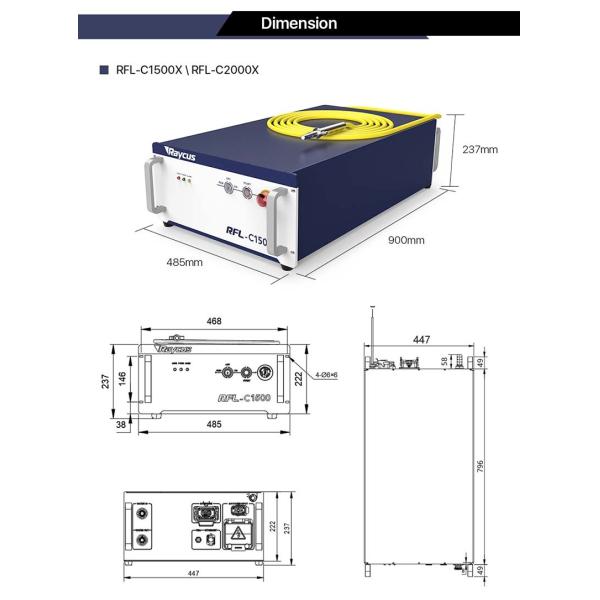

Dimensions(W×H×D) 900×447×237 900×447×250
Weight(kg) <70 <80
Operating Ambient Temperature(℃) 10℃~40℃
Humidity (%) 30-70
Storage Temperature (℃) -10℃~60℃
Cooling Method

Water Cooling

Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source

Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut sourceRaycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source

Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut sourceRaycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source

Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut sourceRaycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source

Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source

Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source

Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source

Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source

Raycus Fiber laser cutting source 1500W 2000W 3000W cut metal fiber Laser cut source

Tag: laser cutting source, Raycus laser cutting

We supply the laser parts to help you to assemble laser machine by your side for saving cost.

1. Parts for laser marking machine:
1.1. Raycus, MAX, JPT, 20W/30W/50W/100W
1.2. JCZ original card
1.3. Galvo Scanhead
1.4. F-theta lens, f160/210/254/330mm
1.5. Power supply, 5V/15V/24V

2. Parts for laser welding machine
2.1. Raycus/MAX welding laser source, 1000W, 1500W, 2000W,3000W
2.2 Qilin handheld laser welding head
2.3 Chiller
2.4 Laser power supply for 200W/400W
2.5 Laser rod, Cavity, Xenon lamp, protection lens

3. Parts for laser cutting machine
3.1. Raycus/MAX cutting laser source, 1000W, 1500W, 2000W, 3000W, 6000W, 12,000W, 20,000W

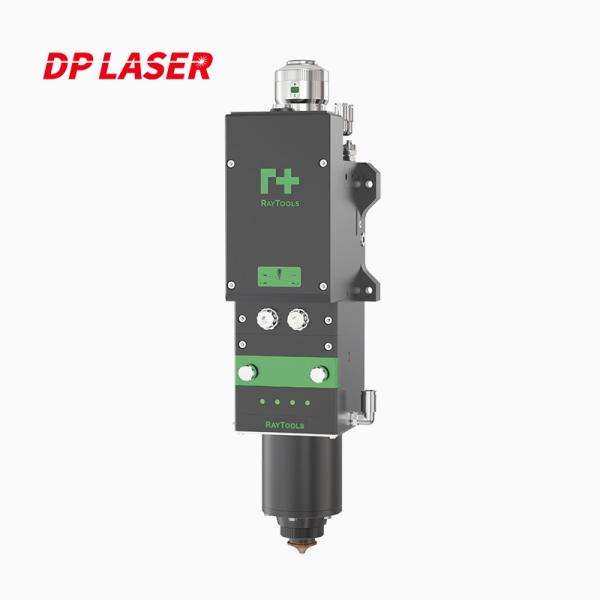

3.2. Raytools cutting head
3.3 Cypcut cutting system, FSCUT2000C+BCS100
3.4 Chiller

We are manufacturer of fiber laser cutting machine with 12 years of production experience.We offer complete machine solution,also provide laser source,CNC controller ,laserhead, water chiller,servo,custom made machine table,training and service,etc. one-stop solution!


Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.

We are looking for distributor. Price is more competitive.

We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
