Specifications
Brand Name :
Ruida
Model Number :
RDD6584V-NET
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable, contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2-3 work days
Packaging Details :
Carton
Model :
Mark point vision positioning cutting model
Axes :
Eight
Input and output :
32/28
Installment encryption :
Support
Onboard clock :
Support
Firmware upgrade :
Remote upgrade of panel and mainboard program
Feeding :
Support X/Y/U axis feeding independently or Y and U axes feeding synchronously

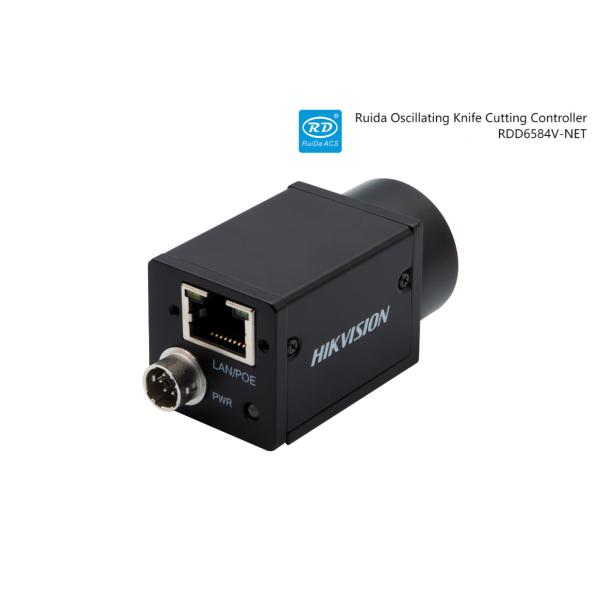

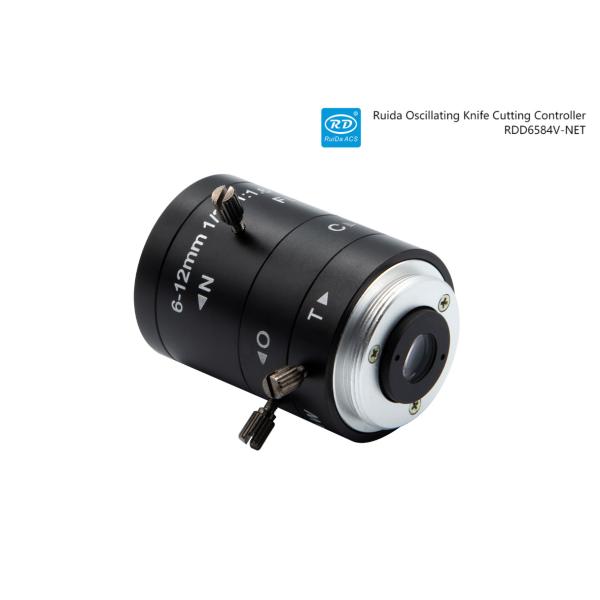

Camera :
Network interface camera, 1.3 and 5 megapixels are available

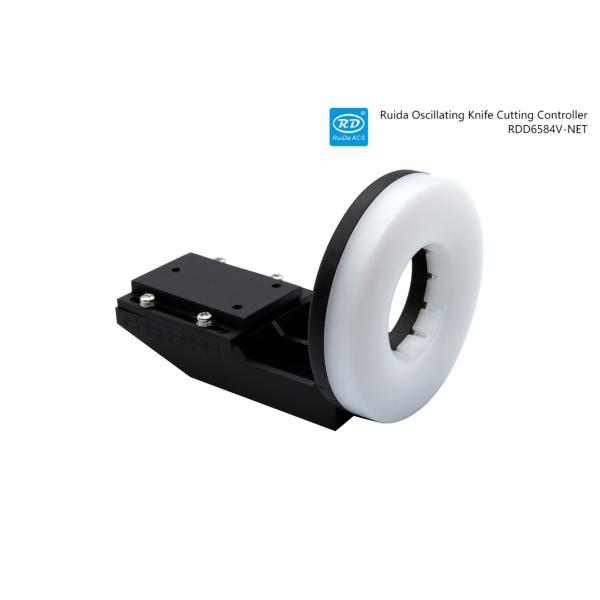

Light source system :
Red and white light source are available
Cutting function :
Mark point vision positioning cutting
Description
Ruida Single Track Small Vision Oscillating Knife Cutting Machine Controller RDD6584V-NET
Product Specifications
Attribute Value
Model Mark point vision positioning cutting model
Axes Eight
Input and output 32/28
Installment encryption Support
Onboard clock Support
Firmware upgrade Remote upgrade of panel and mainboard program
Feeding Support X/Y/U axis feeding independently or Y and U axes feeding synchronously
Camera Network interface camera, 1.3 and 5 megapixels are available
Light source system Red and white light source are available
Cutting function Mark point vision positioning cutting
Product Description

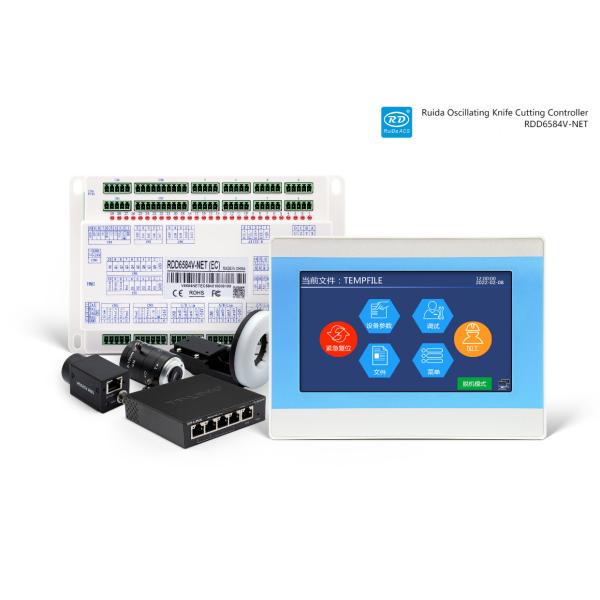

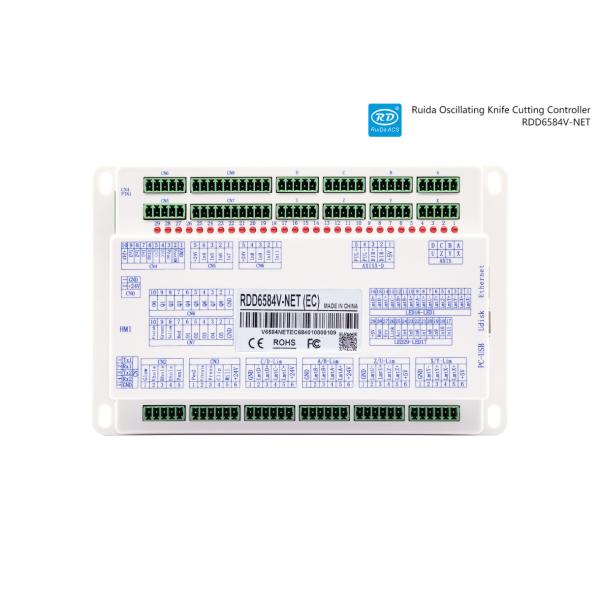

The RDD6584V-NET is a knife cutting controller with tool direction following control, developed by Ruida Technology. It integrates processing for vibrating knives, circular knives, milling cutters, pressure wheels and other tools, along with feeding, circular punching, V-shaped special punching, brush processing, and red light positioning functions.

Key Features
  • Cutting Edge Following Control: Adapts to various cutting tools for optimal performance
  • Tool Compatibility: Supports vibrating cutters, circular cutters, milling cutters, and rollers
  • Integrated Functions: Combines multiple processing capabilities including:
    • Automated feeding mechanisms
    • Precision circular punching
    • V-Shaped special punching
    • Surface brush processing
    • Red light positioning system

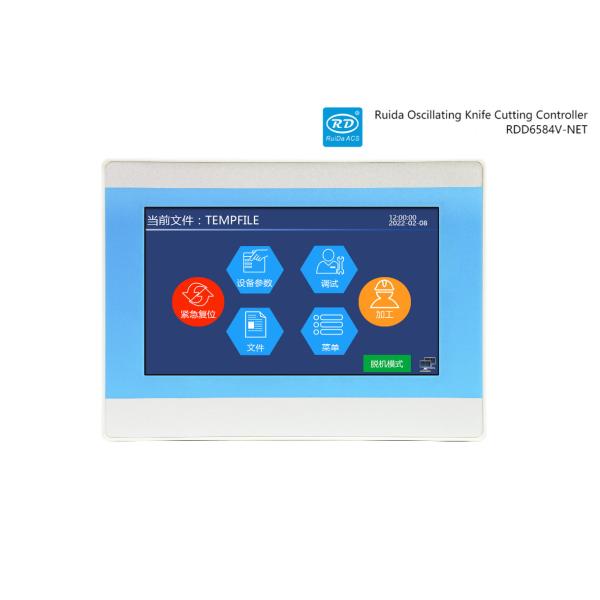

  • 7" touch screen panel with parameter modification and graphic display
  • Supports 15 languages including English, Chinese, Spanish, and more
  • Includes wireless handheld box, RD-APP and RD-WIFI accessories
Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET
Application Fields

Primarily used in non-metal cutting applications including:

  • Clothing and textiles
  • Furniture and upholstery
  • Digital printing
  • Advertising materials
  • Curtains and drapes
  • Bags and luggage
  • Footwear manufacturing
Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET
Software

VCutWorks - Free cutting software included with controller

Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET
Product Certification
Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET
