Specifications
Brand Name :
Ruida
Model Number :
RDD6584U-DFM
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable, contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2-3 work days
Packaging Details :
Carton
Model :
Double track panoramic large vision
axes :
16
Communication :
Ethernet, USB and WIFI

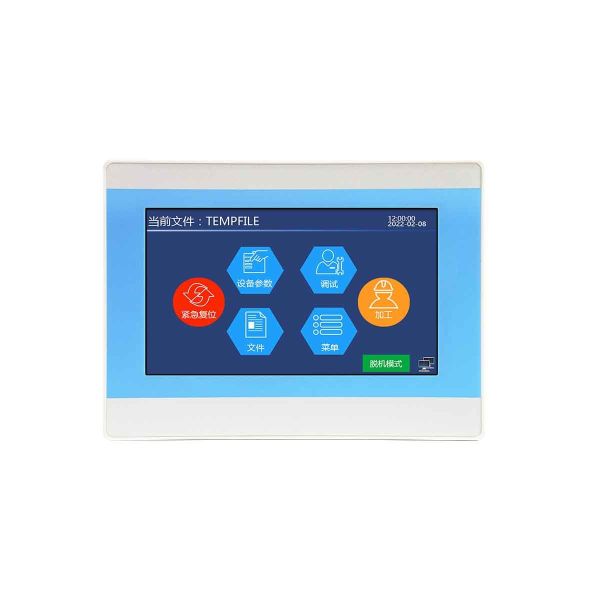

Panel :
7''touch screen, support parameter modification, static preview and dynamic display of graphics
Tool :
vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding :
Support X/Y/U axis feeding independently or Y and U axes feeding synchronously

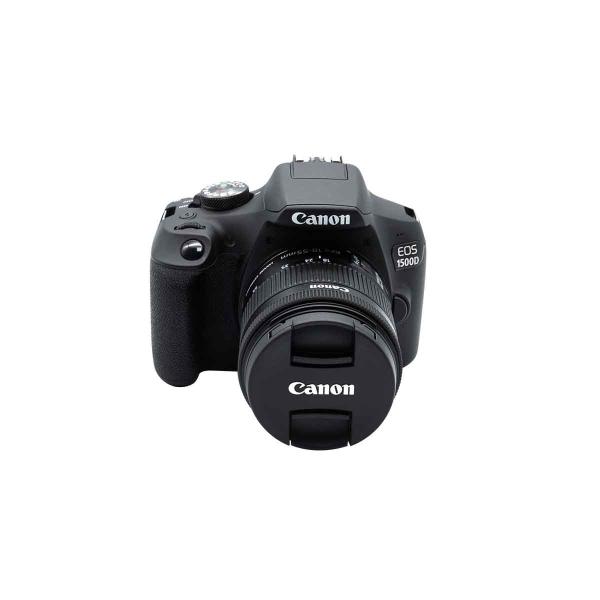

Camera :
2400W high resolutionSLR camera
Light source system :
None
Cutting function :
Double coordinate system large vision contour recognition cutting
Software :
VCutWorks+RDVisionWorks-Vcut
Description
Double Beam Large Visual Oscillating Knife Cutter Controller RDD6584U-DFM
Product Specifications
Attribute Value
Model Double track panoramic large vision
Axes 16
Communication Ethernet, USB and WIFI
Panel 7" touch screen, supports parameter modification, static preview and dynamic display of graphics
Tool Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding Supports X/Y/U axis feeding independently or Y and U axes feeding synchronously
Camera 2400W high resolution SLR camera
Light source system None
Cutting function Double coordinate system large vision contour recognition cutting
Software VCutWorks+RDVisionWorks-Vcut
Product Description

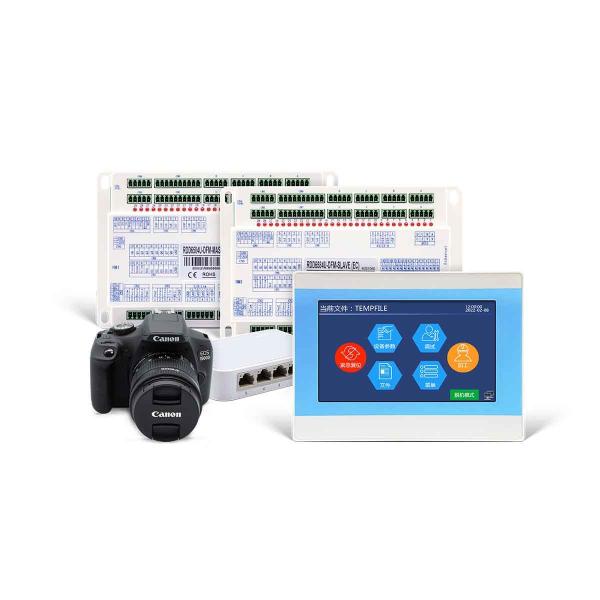

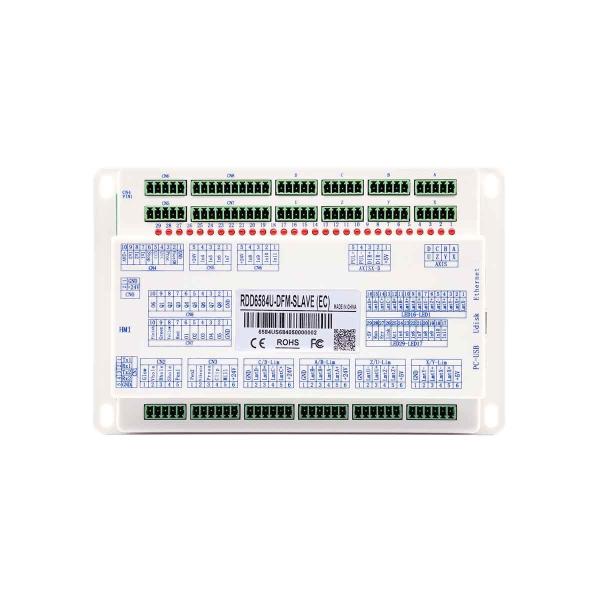

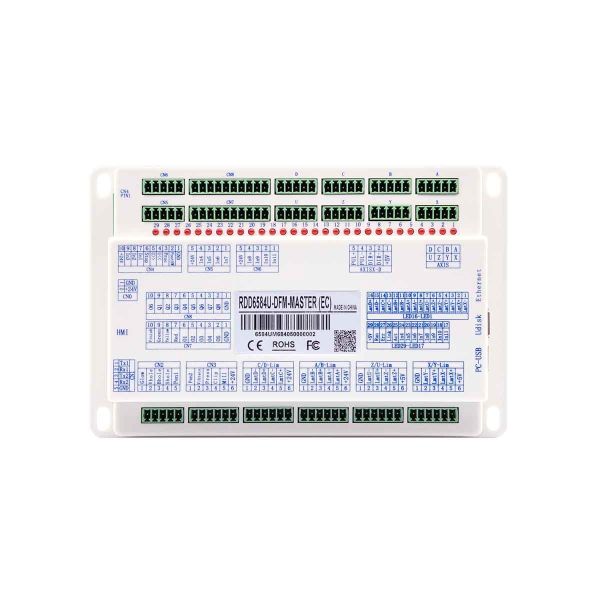

The Ruida Controller RDD6584U-DFM is a dual coordinate system tool cutting controller with tool direction following control function, independently developed by Ruida Technology. This advanced system integrates multiple processing methods including vibrating cutter, circular cutter, milling cutter, and pressing wheel operations.

Key Features
  • Double Coordinate Systems: Supports asynchronous processing in double beam (dual Y axes) or double cantilever (dual X axes) modes, with each system capable of synchronous processing for two heads.
  • Integrated Tool Processing: Accommodates various tools including vibration tools, round tools, milling cutters, pressing wheels, and slot cutters for mixed cutting applications.
  • Advanced Cutting Techniques: Features mark point positioning cutting, large-format panoramic visual cutting, and projection cutting for enhanced precision and flexibility.
  • Multi-language Support: Available in 15 languages including English, Chinese, Spanish, French, German, and more.
  • Remote Upgrade Capability: Supports firmware upgrades for both panel and mainboard programs.
Industrial Oscillating Knife Cutting Controller Double Beam Ruida RDD6584U-DFM
Application Fields

Primarily used in non-metal cutting applications including clothing, furniture, digital printing, advertising, curtains, bags, footwear, and related industries.

Industrial Oscillating Knife Cutting Controller Double Beam Ruida RDD6584U-DFM
Software

VCutWorks+RDVisionWorks-Vcut software package included
