Specifications
Brand Name :
Ruida
Model Number :
RDD6584U
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable, contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2-3 work days
Packaging Details :
Carton
Model :
Ordinary double track
axis :
16
Communication interface :
Ethernet, USB and WIFI (optional)
Panel :
7''touch screen, support parameter modification, static preview and dynamic display of graphics
Tool :
vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding :
Support X/Y/U axis feeding independently or Y and U axes feeding synchronously
Camera :
None
Light source system :
None
Cutting function :
Double coordinate systems asynchronous cutting
Encryption :
Support
Description

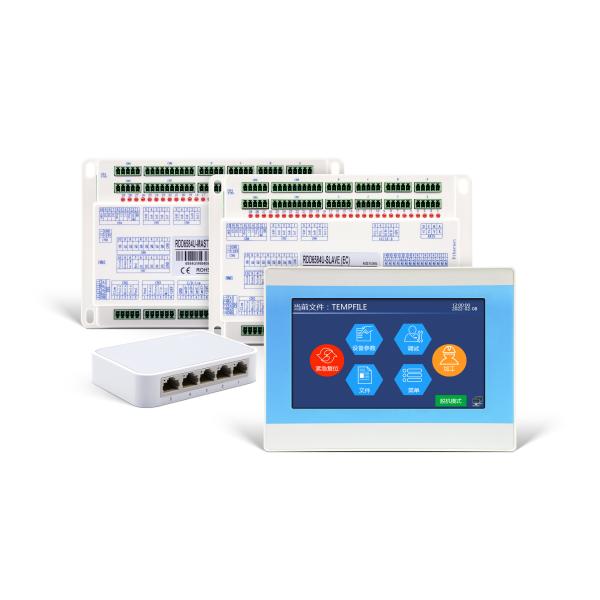

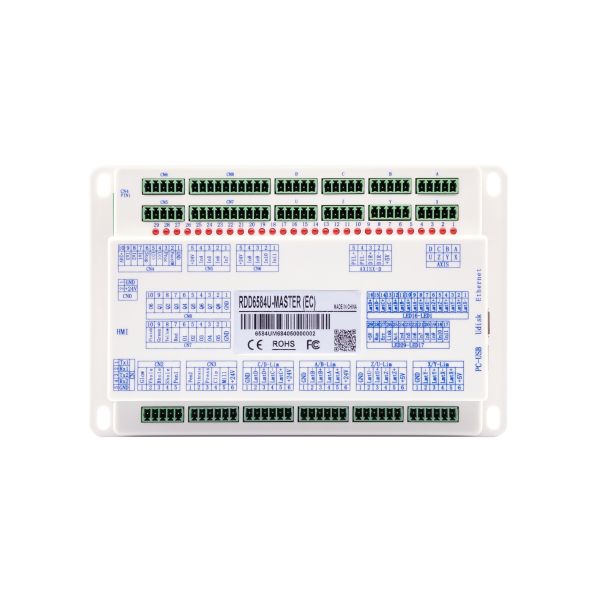

Ruida Double Beam Oscillating Knife Cutting Control System RDD6584U Controller
Product Overview

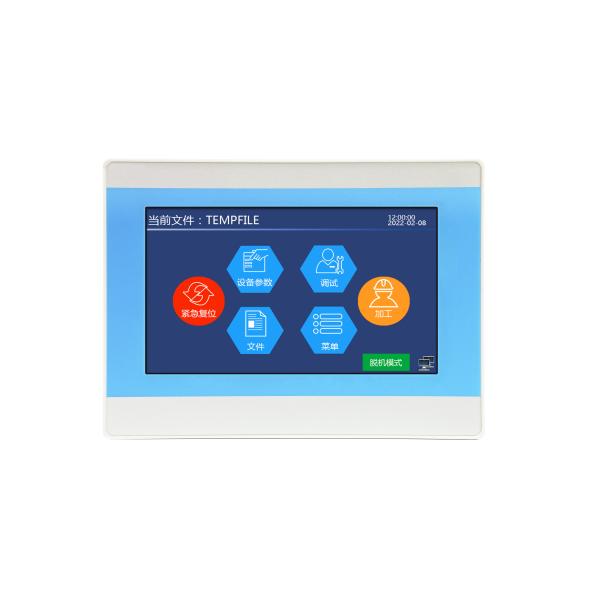

The RDD6584U integrates multiple processing methods including vibrating cutter, circular cutter, milling cutter, and pressing wheel. It features a 7" industrial touch screen for easy operation and supports both online and offline working modes.

Key Specifications
Attribute Value
Model Ordinary double track
Axis 16
Communication interface Ethernet, USB and WIFI (optional)
Panel 7'' touch screen with parameter modification and graphic display
Tool Support Vibration knife, round knife, milling cutter, press wheel, punching tools, brush processing
Cutting Function Double coordinate systems asynchronous cutting
Key Features
  • Supports double coordinate systems asynchronous processing in double beams or double cantilevers mode
  • Integrated processing for multiple tools including vibration cutter, round tool, and milling cutter
  • Supports single XY axis processing, double XY axes asynchronous processing
  • Mark point positioning cutting and large-format panoramic visual cutting
  • Onboard clock and remote firmware upgrade capability
  • Supports 15 languages including English, Chinese, Spanish, and more
Precision Double Beam Oscillating Knife Cutting Machine Controller Ruida RDD6584U
Applications

Primarily used in non-metal cutting fields including:

  • Clothing and textile industries
  • Sofa and furniture manufacturing
  • Digital printing and advertising
  • Luggage and shoe production
  • Curtain and fabric processing
Precision Double Beam Oscillating Knife Cutting Machine Controller Ruida RDD6584U
Included Software

VCutWorks - Free cutting software included with the controller

Precision Double Beam Oscillating Knife Cutting Machine Controller Ruida RDD6584U
