Specifications
Brand Name :
Ruida
Model Number :
RDD6584U-DFM
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable, contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2-3 work days
Packaging Details :
Carton
Model :
Double track panoramic large vision
axis :
Sixteen
Installment encryptio :
Support
Onboard clock :
Support
Tool :
vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding :
Support X/Y/U axis feeding independently or Y and U axes feeding synchronously
Camera :
2400W high resolutionSLR camera
Light source system :
None
Cutting function :
Double coordinate system large vision contour recognition cutting
Software :
VCutWorks+RDVisionWorks-Vcut
Description
Double Beam Large Visual Oscillating Knife Cutting Machine Controller Ruida RDD6584U-DFM
Product Specifications
Attribute Value
Model Double track panoramic large vision
Axis Sixteen
Installment encryption Support
Onboard clock Support
Tool vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding Support X/Y/U axis feeding independently or Y and U axes feeding synchronously
Camera 2400W high resolution SLR camera
Light source system None
Cutting function Double coordinate system large vision contour recognition cutting
Software VCutWorks+RDVisionWorks-Vcut
Product Description

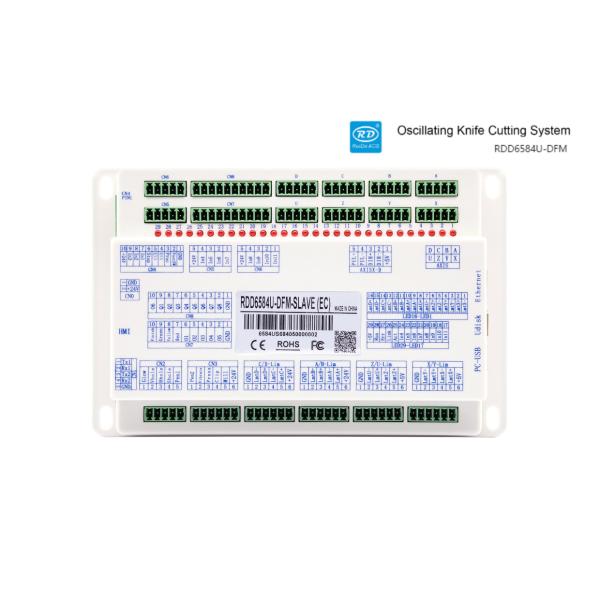

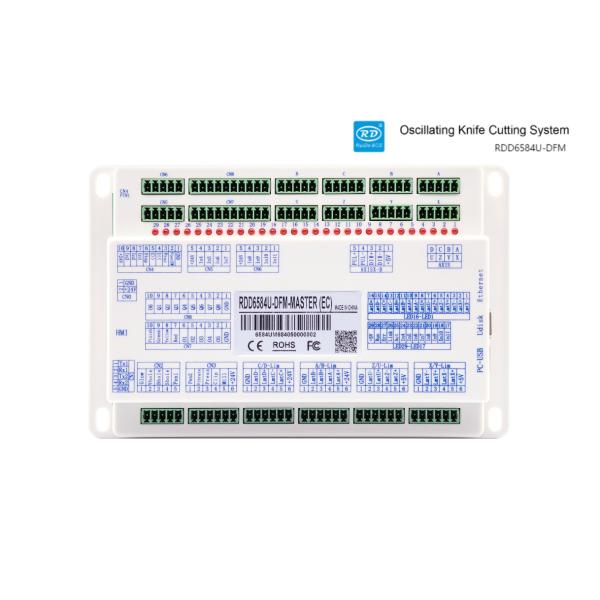

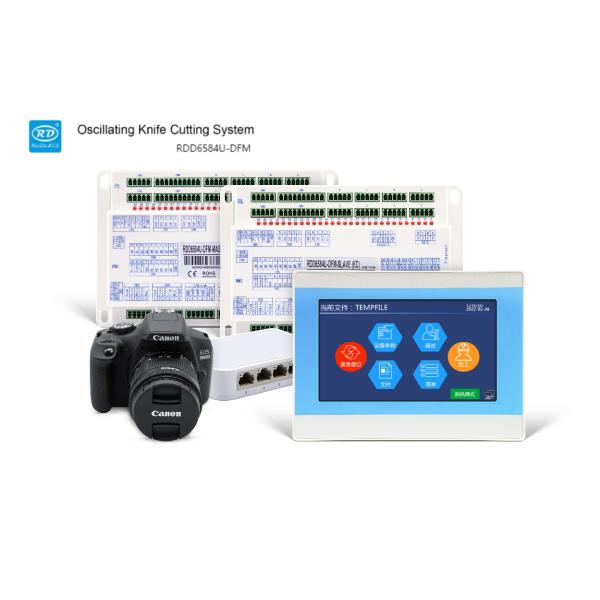

The RDD6584U-DFM is a dual coordinate system tool cutting controller with tool direction following control function independently developed by Ruida technology. This advanced controller integrates multiple processing methods including vibrating cutter, circular cutter, milling cutter, and pressing wheel operations.
Key Features
  • Dual Coordinate System: Supports asynchronous processing in double beams (dual Y axes) or double cantilevers (dual X axes) with synchronous processing capability
  • Integrated Tool Processing: Supports vibration knife, round knife, milling cutter, press wheel, and various punching operations
  • Advanced Cutting Functions: Includes automatic feeding, ultra-wide segmentation cutting, circular punching, V-shaped punching, brush processing, and red light positioning
  • Vision Positioning: Features mark point vision positioning, large format panoramic visual cutting, and projection cutting capabilities

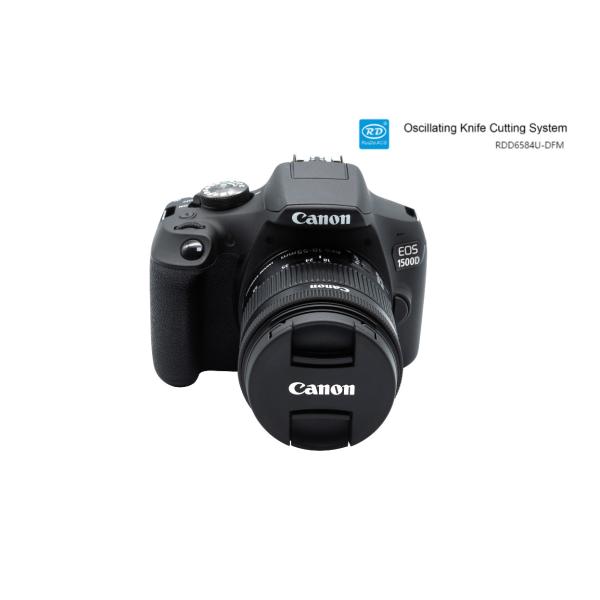

  • High-Resolution Imaging: Equipped with 2400W SLR camera for precise contour recognition
  • Multi-Language Support: Interface available in 15 languages including English, Chinese, Spanish, and more
Double Beam Oscillating Knife Cutting Controller Ruida RDD6584U-DFM
Technical Parameters

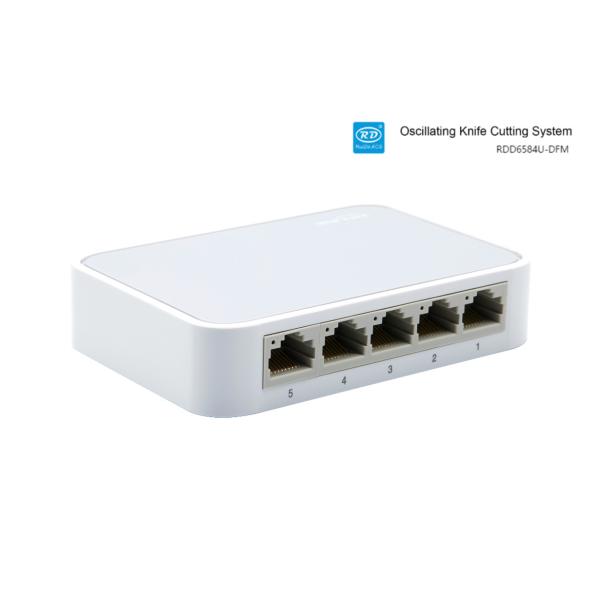

Communication interface Ethernet, USB and WIFI (optional)

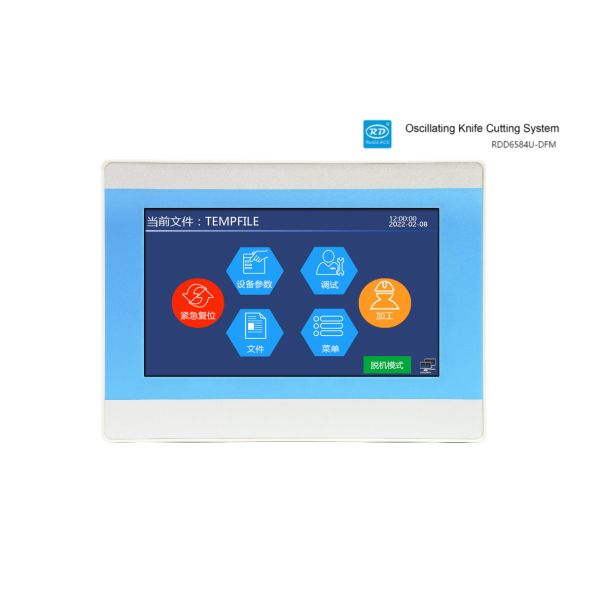

Panel 7'' touch screen with parameter modification and graphic display
Firmware upgrade Remote upgrade of panel and mainboard program
Accessories Wireless handheld box, RD-APP and RD-WIFI
Application Fields
  • Textiles and Clothing
  • Upholstery and Furniture
  • Digital Printing and Advertising
  • Curtain Fabrics
  • Luggage and Accessories
  • Footwear Production
Double Beam Oscillating Knife Cutting Controller Ruida RDD6584U-DFM
Software
VCutWorks+RDVisionWorks-Vcut
Double Beam Oscillating Knife Cutting Controller Ruida RDD6584U-DFM
