Specifications
Brand Name :
Ruida
Model Number :
RDC6585PC
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable, contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2-3 work days
Packaging Details :
Carton
Laser :
CO2 glass tube and CO2 RF tube
Nozzle :
Support solenoid valve and piezoelectric valve
Axis :
8
Laser channel :
2
Spray adhesive channel :
2
Double head synchronous :
Support
Installment encryption :
Support
Software :
RDWorksV8
Cutting :
Support
Firmware upgrade :
Remote upgrade of panel and mainboard program
Glue spray process :
Support the adjustment of position and amount of glue spray, delay process control
Size :
Panel: L180mm*W140mm*H42.1mm Mainboard: L211.5mm*W134mm*H33mm
Description

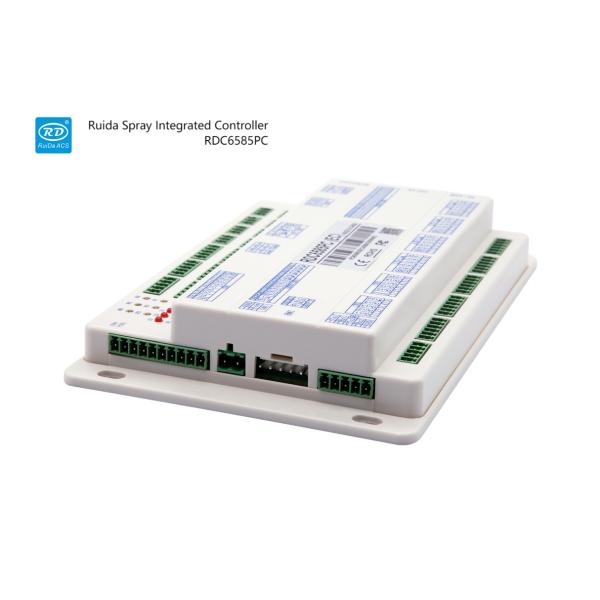

Ruida Laser Height Controller RDC6585PC Spray Cutting Integrated Control Card
Product Overview

The RDC6585PC system is a new generation integrated spray-cut control system featuring a 5-inch color screen interface with enhanced functionality and user-friendly operation. This controller provides complete motion control capabilities for both laser processing and glue spraying applications.

Technical Specifications
Laser Compatibility CO2 glass tube and CO2 RF tube
Nozzle Support Solenoid valve and piezoelectric valve
Axis 8
Laser Channels 2
Spray Adhesive Channels 2
Double Head Synchronization Supported
Software RDWorksV8
Dimensions Panel: 180×140×42.1mm | Mainboard: 211.5×134×33mm
Key Features
  • Intuitive 5-inch color screen interface for enhanced user experience
  • Comprehensive motion control with multiple IO interfaces
  • Dual processing capabilities for laser cutting and glue spraying
  • Supports synchronous operation of dual-head systems
  • Layered processing for two-channel laser and glue spraying operations
  • Remote firmware upgrade capability for both panel and mainboard
  • Multi-language support (12 languages including English, Chinese, Spanish, etc.)
Applications

Ideal for glue spray, dispensing, drawing lines and laser cutting applications in:

  • Clothing and textile industries
  • Leather goods manufacturing
  • Toy production
  • Footwear industry
  • 3C electronics manufacturing
Included Software

RDWorksV8 (Free license included)
