Specifications
Brand Name :
Ruida
Model Number :
RDC6585PC-U
Place of Origin :
China
MOQ :
1
Price :
Negotiable, contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2-3 work days
Packaging Details :
Carton
Certification :
CE, FCC, RoHS
Laser :
CO2 glass tube and CO2 RF tube
Nozzle :
Support solenoid valve and piezoelectric valve
Axes :
16
Laser channels :
4
Spray adhesive channels :
4
Double head synchronous :
Support
Communication interface :
Ethernet, USB
Panel :
5'' color screen + keys
Feeding :
U axis feeding/ Y and U axes feeding synchronously, ordinary feeding, ultra-wide segmentation feeding
Double coordinate system processing :
Support
Glue spray process :
Support the adjustment of position and amount of glue spray, delay process control
Model :
Double heads asynchronously
Description
Dual Track Laser Height Controller Large Visual Spray Cutting Integrated Controller RDC6585PC-U
Product Specifications
Attribute Value
Laser CO2 glass tube and CO2 RF tube
Nozzle Support solenoid valve and piezoelectric valve
Axes 16
Laser channels 4
Spray adhesive channels 4
Double head synchronous Support
Communication interface Ethernet, USB
Panel 5" color screen + keys
Feeding U axis feeding/ Y and U axes feeding synchronously, ordinary feeding, ultra-wide segmentation feeding
Double coordinate system processing Support
Glue spray process Support the adjustment of position and amount of glue spray, delay process control
Model Double heads asynchronously
Ruida Controller RDC6585PC-U Description

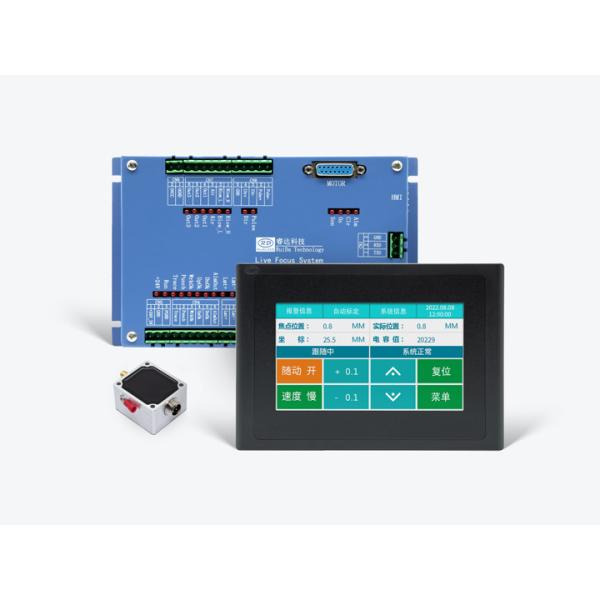

The system features a 5-inch color screen for intuitive operation and supports separate processing for laser cutting and glue spraying. It offers comprehensive motion control for precise movements during operations and includes multiple I/O control interfaces for enhanced compatibility with peripherals.
Technical Parameters
Installment encryption Support
Onboard clock Not support
Firmware upgrade Remote upgrade of panel and mainboard program
Software RDWorksV8
Size Panel: 180×140×42.1mm
Mainboard: 211.5×134×33mm
Language 12 languages including English, Chinese, French, German, Spanish, etc.
Accessories Wireless handheld box, RD-APP and RD-WIFI
Key Features
  • Precise PPI control mode
  • Simultaneous laser cutting and glue spray through different layers
  • Support for large-format panoramic visual positioning
  • Double heads asynchronous processing capability
16 Axis Dual Track Laser Height Controller With 5 Inch Screen Ruida RDC6585PC-U
Application Areas
Suitable for glue spray, dispensing, drawing lines and laser cutting in clothing, leather, toys, shoes and 3C industries.
