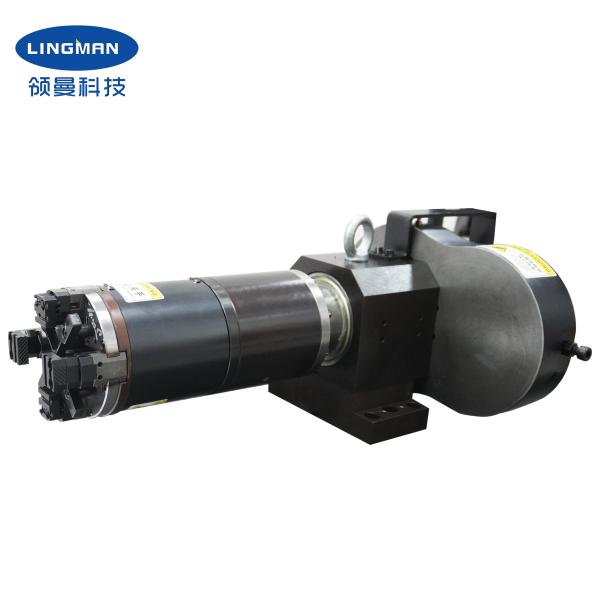

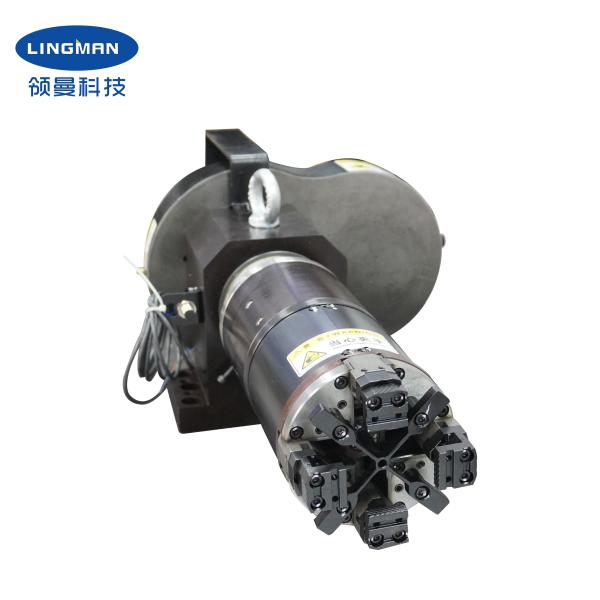

LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
Specifications
Brand Name :
LINGMAN
Model Number :
R125C
Certification :
Provided
Place of Origin :
China
MOQ :
1 Set
Price :
1200USD
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden case

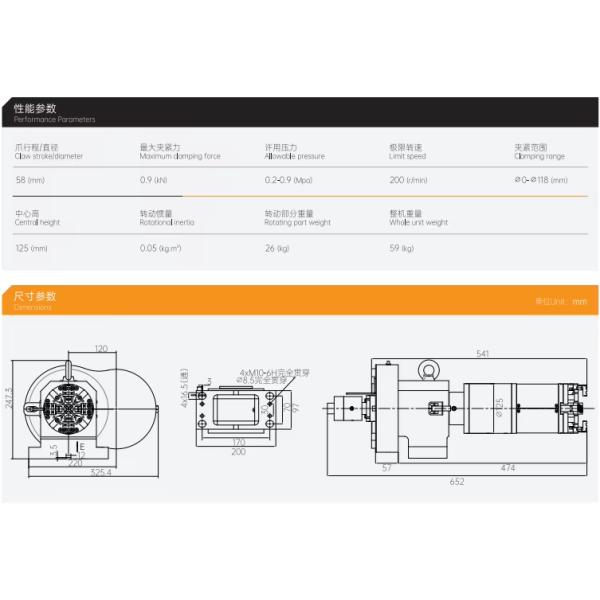

Model :
R125C
Claw stroke :
58
Max Clamping Force :
0.9KN
Allowable pressure :
0.2-0.9MPa
Limited speed :
200r/min
Clamping range :
φ5-φ175
Central height :
125mm
Rotational inertia :
0.08kg.m2
Rotating part weight :
30kg
Net Weight :
46KG
Description

Company Profile:

LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck

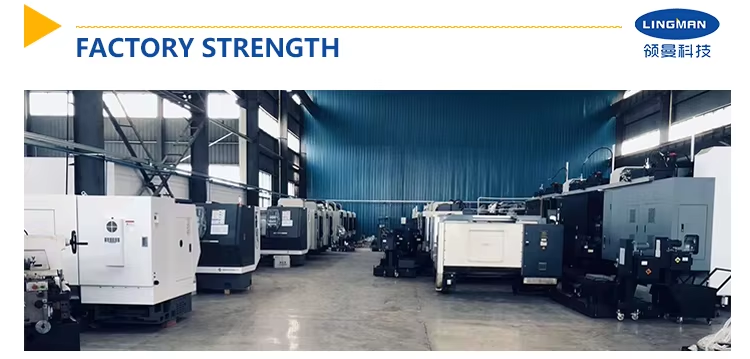

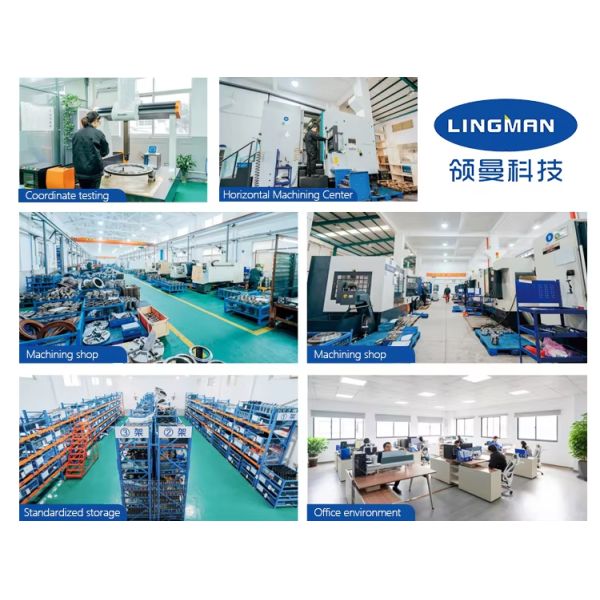

Linkman Machinery Technology (Changzhou) Co., Ltd. was established on June 8, 2020 and has passed ISO9001:2015 quality management system certification. It is an enterprise that focuses on R&D, production and sales of various power clamps and chucks for laser pipe cutting machines, pneumatic chucks, electric chucks, hydraulic chucks, digital chucks and other power chucks. The company will create a 4,000-square-meter production base. It is estimated that 20 million yuan will be invested in production and processing equipment, plant construction and raw material costs within 2 to 3 years. The company has a professional technical R&D team and innovative R&D and design capabilities.

Product picture:

LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck

LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck

LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck

LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck

LINGMAN 125C Double-acting Laser Rotary Axis Chuck Feeding Rear Chuck
