Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining
Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining
Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining
Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining
Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining
Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining
Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining
Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining
Specifications
Brand Name :
LINGMAN
Model Number :
RH Series
Certification :
Provided
Place of Origin :
China
MOQ :
1 Set
Price :
USD 600-800 set
Payment Terms :
T/T, L/C
Supply Ability :
500 set per month
Delivery Time :
10-15 work days
Packaging Details :
Wood carton
Piston area(Press side) :
31-310cm²
Piston area(Pull side) :
27.9-286.3cm²
Stroke :
15-35mm
Highest turnover min :
4000-6000r.p.m
Maximum working pressure MPa :
3.5(35)-4.0(40)kgf/cm²
GD²kg.m² :
0.01-0.38
Weight :
2.9-20.4Kg
Description

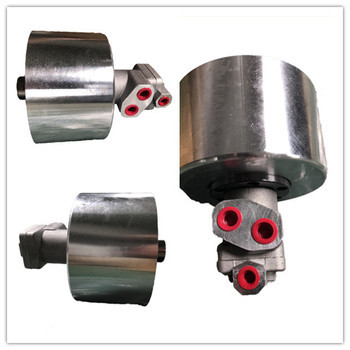

RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining

1. Description

Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.

1.Made of dense, light aluminum alloy, low inertia and lightweight, it can reduce the load on the machine spindle.
2. High-speed continuous rotation and balance, long life, most parts are imported from Chenchen.
3.High-pressure type, long-stroke type, and super-large positive diameter type can be customizedaccording to customer needs.

The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

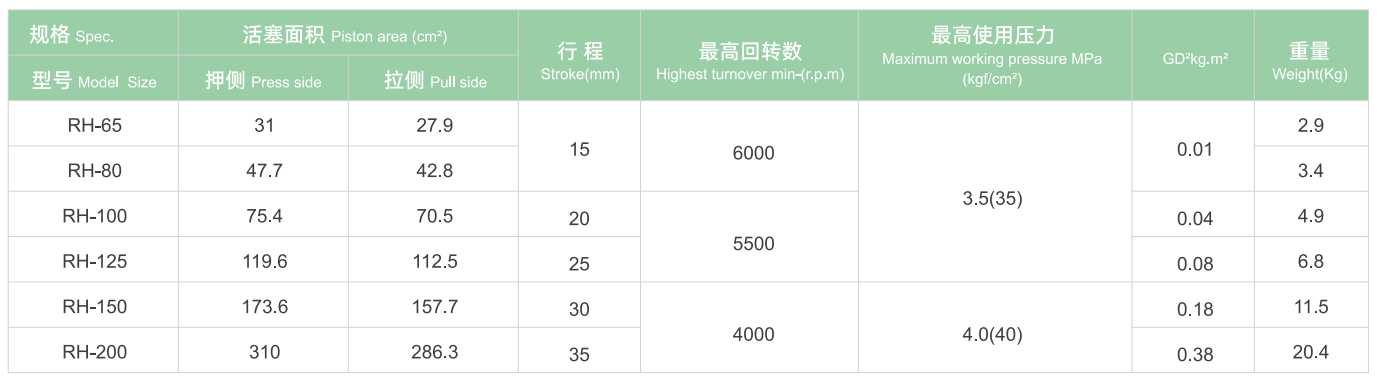

2. Performance Parameters

Model number RH Series
Piston area(Press side) 31-310cm²
Piston area(Pull side) 27.9-286.3cm²
Stroke 15-35mm
Highest turnover min 4000-6000r.p.m
Maximum working pressure MPa 3.5(35)-4.0(40)kgf/cm²
GD²kg.m² 0.01-0.38
Weight 2.9-20.4Kg

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

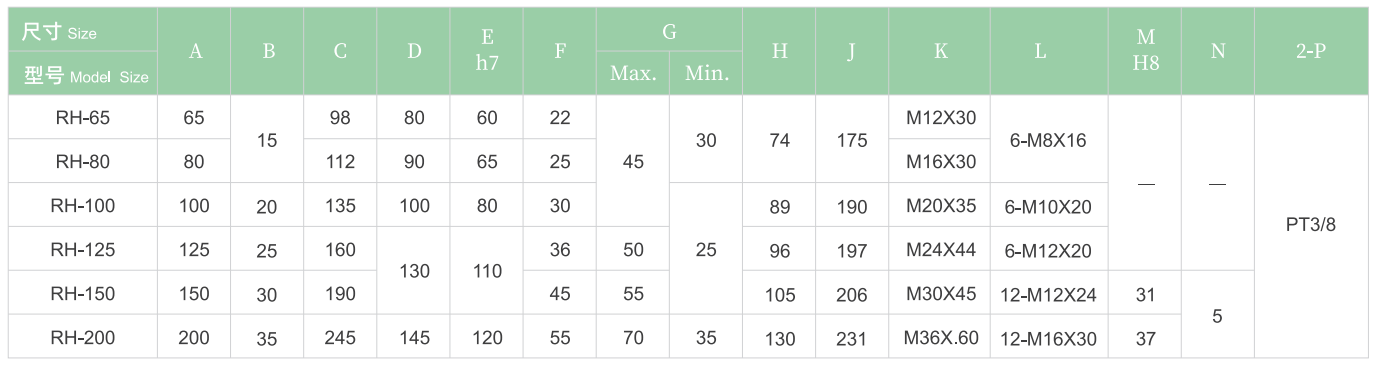

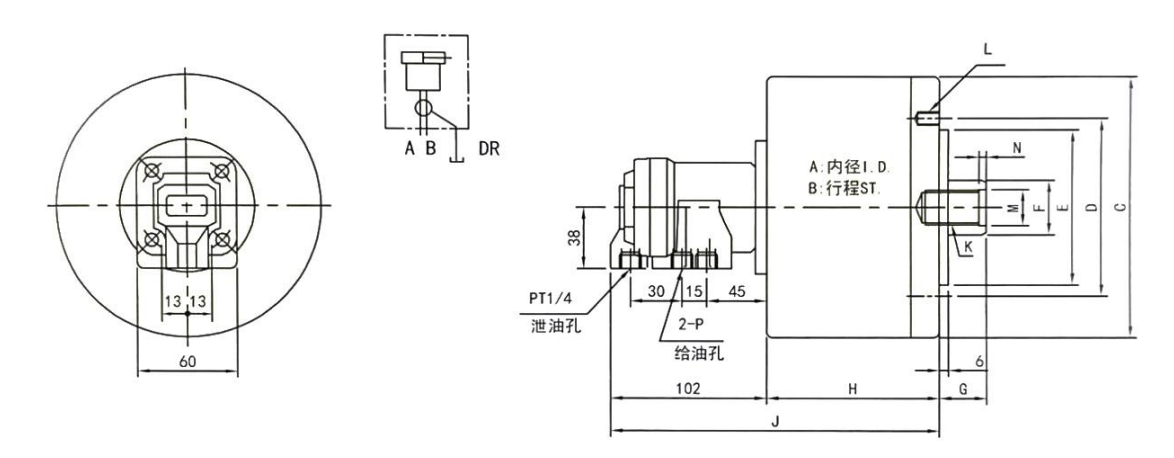

​3. Dimensions

Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining

Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining

Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining

4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.

6. Production Line

Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining

Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining

Lingman RH Non-thru-hole Hydraulic Cylinder with Low Inertia Long Stroke and Long Service Life Suitable for CNC Machining
