Specifications
Brand Name :
LINGMAN
Model Number :
TH Series
Certification :
Provided
Place of Origin :
China
MOQ :
1 Set
Price :
USD 600-1000 set
Payment Terms :
T/T, L/C
Supply Ability :
500 set per month
Delivery Time :
10-15 work days
Packaging Details :
Wood carton
Piston area(Press side) :
53.2-345.4cm²
Piston area(Pull side) :
50.5-334.6cm²
Stroke :
10-30mm
Highest turnover min :
2800-8800r.p.m
Maximum working pressure MPa :
4.0(40)kgf/cm²
GD²kg.m² :
0.02-1.5
Total volume of oil leakage drainage :
3-7lit./min
Weight :
5.8-50Kg
Description

TH series Hollow Rotating Hydraulic Cylinder Lightweight Large-through-hole Rotating Hydraulic Cylinder High Rotational Speed

1. Description

Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.

1. Lightweight, large-through-hole rotary oil cylinder, with through-holes running through, capable of processing long shaft parts.
2. Built-in reverse valve self-locking mechanism, which can prevent pipe damage, loss of pressure source, and ensure stable clamping of the processed parts. Safe and reliable.
3. High rotational speed, long service life. All internal components are made of imported parts.
4. Customizable according to customer requirements.

The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

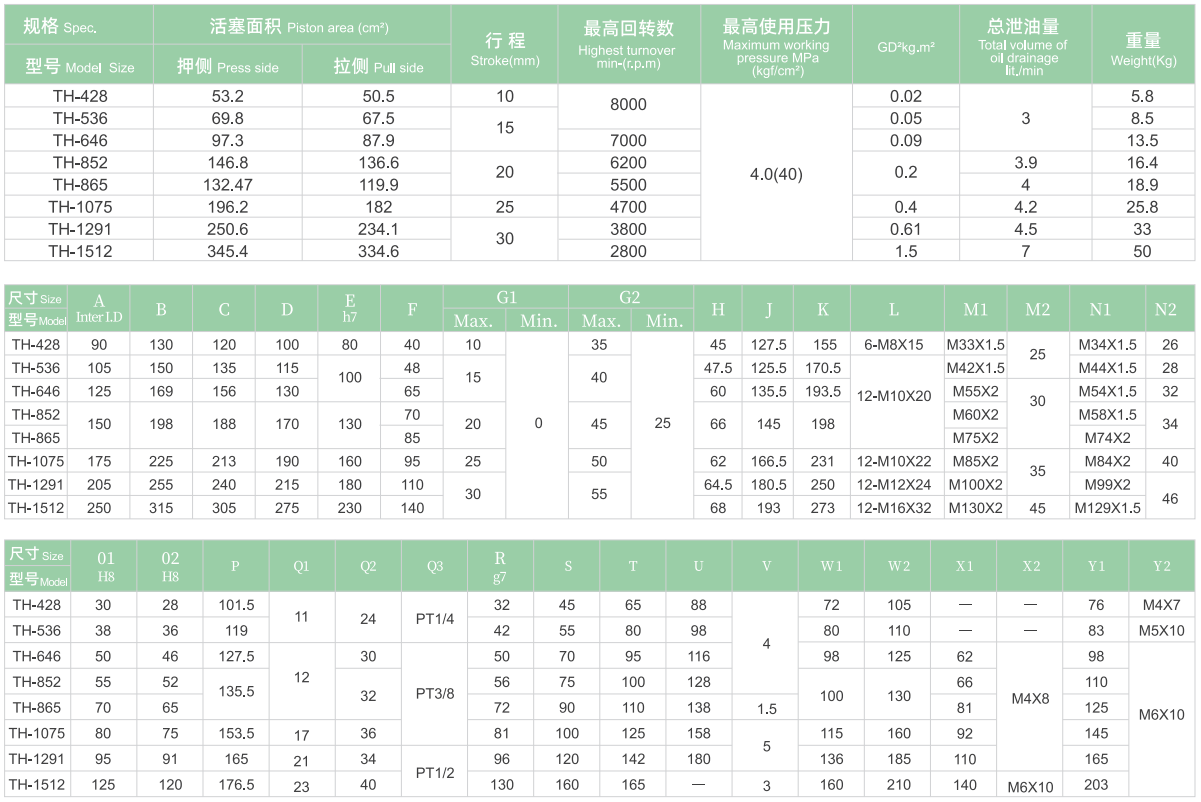

2. Performance Parameters

Model number TH Series
Piston area(Press side) 53.2-345.4cm²
Piston area(Pull side) 50.5-334.6cm²
Stroke 10-30mm
Highest turnover min 2800-8800r.p.m
Maximum working pressure MPa 4.0(40)kgf/cm²
GD²kg.m² 0.02-1.5
Total volume of oil leakage drainage 3-7lit./min
Weight 5.8-50Kg

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

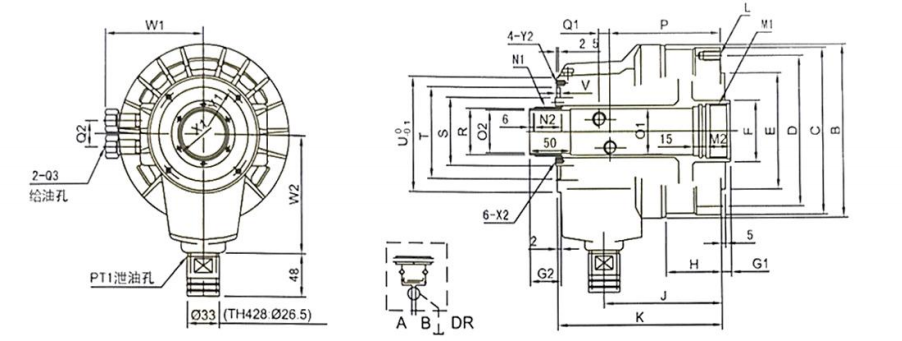

​3. Dimensions

Lingman Hollow Rotating Hydraulic Cylinder Lightweight Large-through-hole Rotating Hydraulic Cylinder High Rotational Speed

Lingman Hollow Rotating Hydraulic Cylinder Lightweight Large-through-hole Rotating Hydraulic Cylinder High Rotational Speed

4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.

6. Production Line

Lingman Hollow Rotating Hydraulic Cylinder Lightweight Large-through-hole Rotating Hydraulic Cylinder High Rotational Speed

Lingman Hollow Rotating Hydraulic Cylinder Lightweight Large-through-hole Rotating Hydraulic Cylinder High Rotational Speed

Lingman Hollow Rotating Hydraulic Cylinder Lightweight Large-through-hole Rotating Hydraulic Cylinder High Rotational Speed
