Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
Specifications
Brand Name :
Lingman
Model Number :
Laser chuck F130EF
Place of Origin :
Changzhou, Jiangsu, China
MOQ :
1 set
Price :
USD2200 set
Payment Terms :
T/T, L/C
Supply Ability :
200 sets per month
Delivery Time :
15-20 work days
Packaging Details :
Wood BOX
Product name :
Laser chuck
Jaw stroke :
124mm
Maximum clamping force :
0.6KN(0.6MPa)
Allowable pressure :
0.4-0.9MPa
Clamping range :
6-130mm
Central height :
235mm
Rotational inertia :
1.42kg.㎡
Rotating part weight :
71kg
Whole unit weight :
134kg
Brand :
Lingman
Description

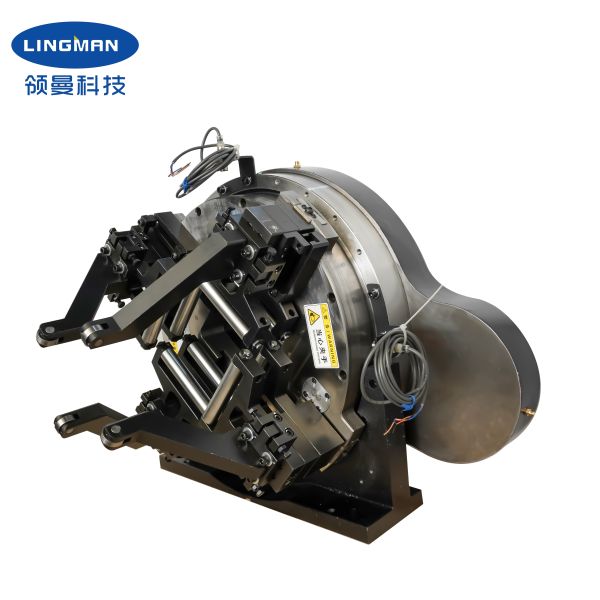

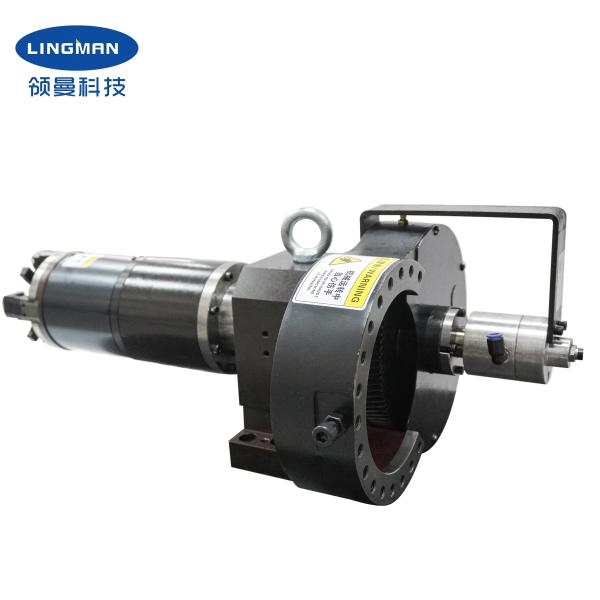

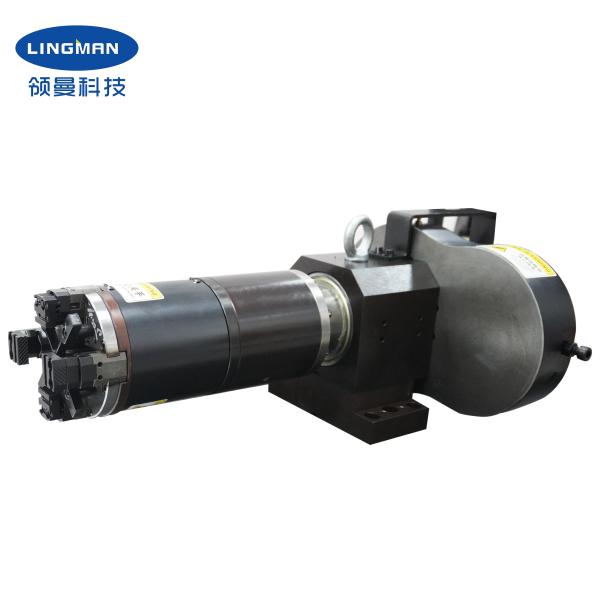

Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine

1. Description

The product is designed for laser tube cutting equipment and supporting, the product itself can be used as an independent rotating spindle, through the side rotation of air intake to achieve fast clamping and loosening action, disconnected air source, can work. After the product base is fixed, it only needs to install the supporting motor and gear connection, and connect with the compressed air source (0.25-0.9mpa) to achieve clamping workpiece and driving the workpiece rotation. Mainly used for clamping workpiece and rotating.

The product adopts cylinder direct output, high mechanical efficiency, small energy loss, output clamping force, clamping force stability. Due to the use of cylinder directly clamping workpiece, cylinder working stroke is chuck working stroke, clamping range is wide. Using cylinder direct output, output force and air pressure is linear proportion, easy to achieve software control.

Chuck simple structure, small number of components, light weight, low failure rate, stable performance, small moment of inertia, low energy consumption. The axial size of chuck is small, and the cost of zero tail is lower.

The product is designed for square hole, compared with the round hole chuck, increase the size of square tube, expand the scope of use.

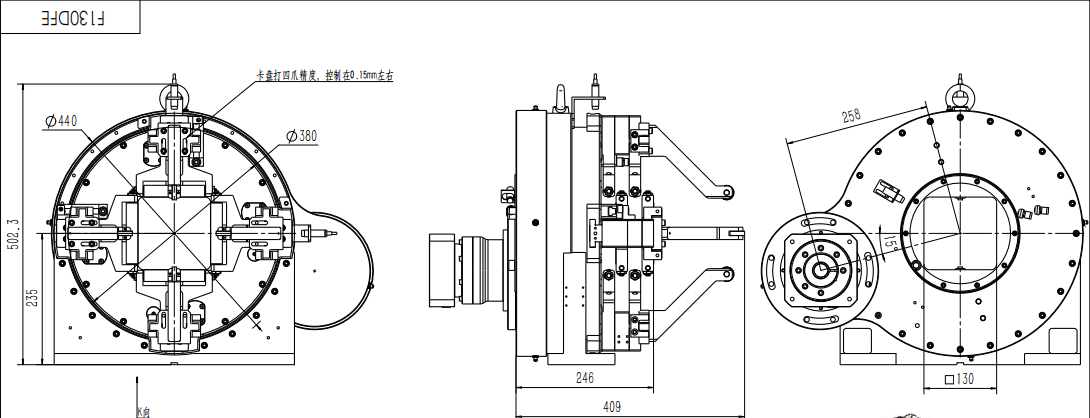

2. Performance Parameters

  • Product name
 Laser chuck
  • Model number
 F130EF
  • Jaw stroke
 124mm
  • Maximunm clamping force
 0.6KN
  • Allowable pressure
 0.4-0.9MPa
  • Maximum rotation diameter
 380mm
  • Clamping range
 6-130mm
  • Central height
 235mm
  • Rotational inertia
 1.42kg.m2
  • Rotating part weight
 71kg
  • Whole unit weight
 134kg

Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine

Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine

Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine


3. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available

4. Our Service

1. We are professional manufacturer of laser chuck over 20 years.
2. Professional design team work with you.

3. Professional QC team to guarantee the high quality.

4. Providing OEM & ODM service.

5. Production Line

Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine

Lingman Laser Bevel Cutting Chuck 120mm 170mm 230mm 290mm Clamping Range Pneumatic For Tube Cutting Machine
