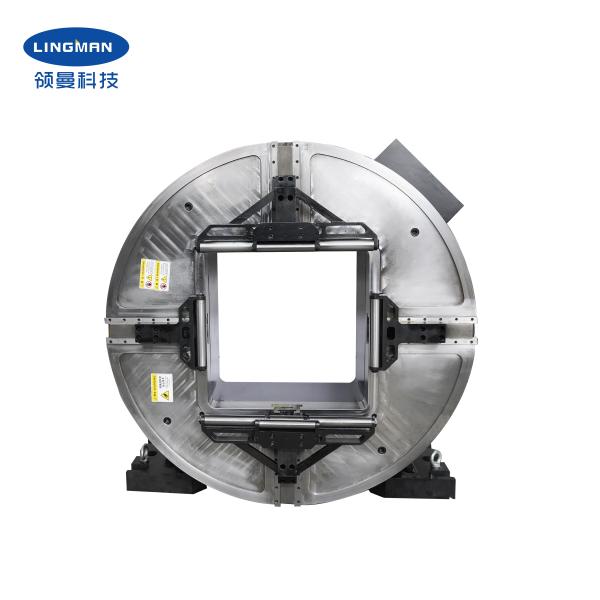

LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type
LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type
LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type
LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type
LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type
LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type
LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type
LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type
Specifications
Brand Name :
LINGMAN
Model Number :
F130DF
Certification :
Provided
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2500 set
Payment Terms :
T/T, L/C
Supply Ability :
500 set per month
Delivery Time :
10-15 work days
Packaging Details :
Wood carton
Product Name :
Precision Square Hole Full Stroke Front Chuck
Claw stroke/diameter :
124mm
Maximun clamping :
0.6KN
Allowable pressure :
0.2-0.9
Limit speed :
200r/min
Clamping range :
4-128mm
Central height :
235mm
Rotational inertia :
1.42kg.m²
Rotating part weight :
71kg
Whole unit weight :
134kg
Description

LINGMAN 4-Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type

1. Description

Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.

This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp work-piece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. The product is widely used in special laser pipe cutters and other pipe processing machine systems.

The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

2. Performance Parameters

Model number F130DF
Jaw stroke/diameter 124mm
Max. clamping force 0.6KN
Allowable pressure 0.2-0.9MPa
Clamping range 4-128mm
Central height 235mm
Rotational inertia 1.42kg.m²
Rotating part weight 71kg
Whole unit weight 134kg

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

​3. Dimensions

LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type

LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type

Specifications A B B1 C D E F G H
F130DF 430 235 440 620 120 80 368 272 130

4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.

6. Production Line

LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type

LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type

LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type
