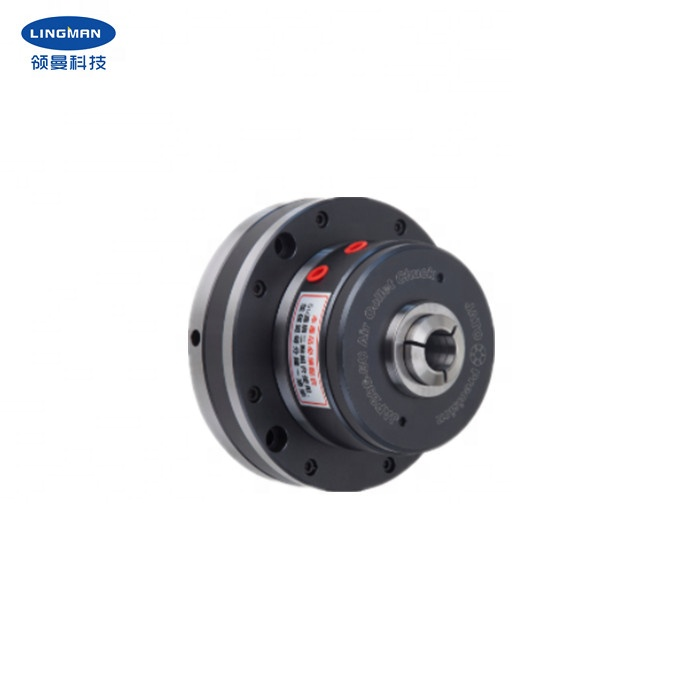

JAB-60 Collet Hollow Pneumatic Rotary Chuck For Lathe Processing Machine
JAB-60 Collet Hollow Pneumatic Rotary Chuck For Lathe Processing Machine
JAB-60 Collet Hollow Pneumatic Rotary Chuck For Lathe Processing Machine
JAB-60 Collet Hollow Pneumatic Rotary Chuck For Lathe Processing Machine
Specifications
Clamping Range :
5-60mm
MOQ :
1
Model Number :
JAB-60
Weight :
20.5KG
Price :
1000 USD
Packaging Details :
Plywood Box
Max. Clamping Force :
35N.m
Supply Ability :
500 sets per month
Stroke(Diameter) :
1.5mm
Bracing Range :
60mm
Payment Terms :
D/P, L/C, D/A, T/T, Western Union, MoneyGram
Allowable Pressure :
0.3-0.8Mpa
Delivery Time :
25 days
Core Components :
Bearing
Place of Origin :
Changzhou, Jiangsu, China
Brand Name :
Lingman
Application :
Laser Cutting
Description

1.Overview

The Pneumatic Chuck is a high-performance workholding solution specifically designed for CNC lathes and conventional turning machines. Unlike traditional hydraulic chucks that require a drawbar and a rear-mounted cylinder, this power chuck integrates the actuation mechanism directly into the chuck body, which is mounted at the front end of the spindle

2.Parameter

JAB-60 Collet Hollow Pneumatic Rotary Chuck For Lathe Processing MachineJAB-60 Collet Hollow Pneumatic Rotary Chuck For Lathe Processing Machine

Item Specification
Model JAB-60
Clamping Range Φ60mm
Function Lathe processing
Drive Type Pneumatic / Servo
Repeat Accuracy ≤0.015mm
Rotation Accuracy ≤0.015mm
Working Pressure 0.4–0.8MPa
Application CNC Lathe Processing

3.Product Line

JAB-60 Collet Hollow Pneumatic Rotary Chuck For Lathe Processing Machine

JAB-60 Collet Hollow Pneumatic Rotary Chuck For Lathe Processing Machine

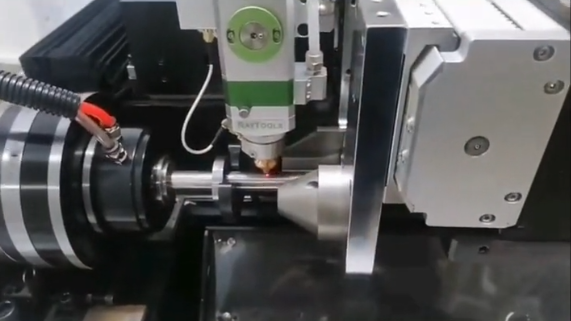

4.Application

JAB-60 Collet Hollow Pneumatic Rotary Chuck For Lathe Processing Machine

Construction Furniture & Fitness Equipment Automotive Industry

5.Why Choose US?

✅ Over 12 years of manufacturing experience

✅ Professional R&D team

✅ Strict quality inspection before shipment

✅ Complete after-sales support

✅ OEM & ODM available

✅ Global customers trust our brand

6.Contact US

If you need catalog, quotation, sample or customization, please feel free to contact us now!

Email: sales56@lmjxkj.com

WhatsApp: +86 15961281158

Address: No.8-2 Dongfang East Road, Hengshanqiao Town, Changzhou Economic Development Zone, Jiangsu Province, China
