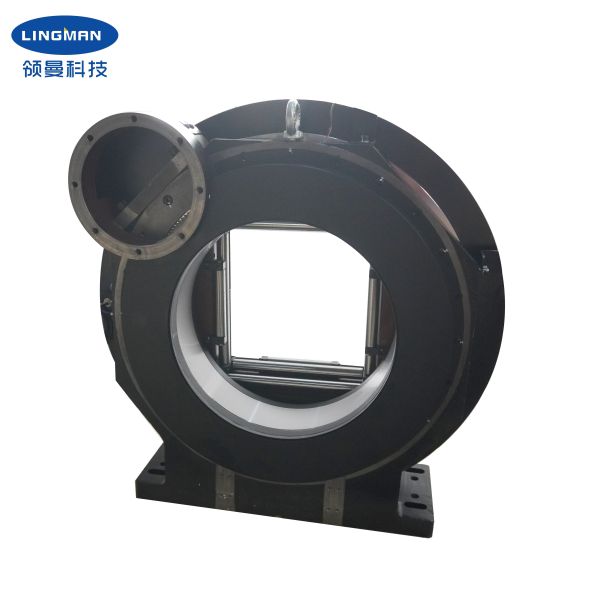

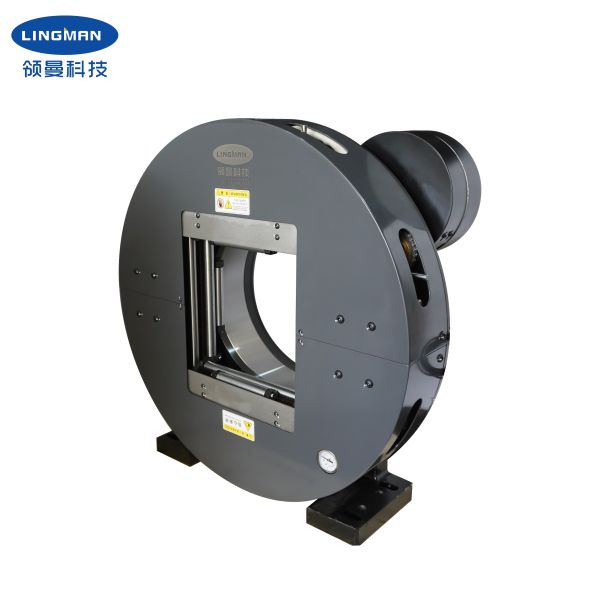

Lingman Simple Pneumatic Pipe Cutting Chuck With Square Hole For Laser Pipe Cutter
Lingman Simple Pneumatic Pipe Cutting Chuck With Square Hole For Laser Pipe Cutter
Lingman Simple Pneumatic Pipe Cutting Chuck With Square Hole For Laser Pipe Cutter
Lingman Simple Pneumatic Pipe Cutting Chuck With Square Hole For Laser Pipe Cutter
Specifications
Model Number :
F245JF
Maximum clamping force :
2KN
Brand Name :
LINGMAN
Claw stroke/ diameter :
230mm
Payment Terms :
T/T, L/C
Rotational inertia :
5.48 Kg.m²
Price :
USD 3000 set
Central height :
350mm
Supply Ability :
500 set per month
Rotating part weight :
173kg
MOQ :
1 Set
Delivery Time :
10-15 work days
Clamping range :
10-245mm
Whole unit weight :
257kg
Certification :
Provided
Allowable pressure :
0.1-1.0MPa
Place of Origin :
China
Limit speed :
200r/min
Packaging Details :
Wood carton
Description

Lingman Simple Pneumatic Pipe Cutting Chuck With Square Hole for Laser Pipe Cutter Best-selling Chuck with a Long Service Life

1. Description

Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.

The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

2. Performance Parameters

Claw stroke/ diameter 230mm
Claw stroke/diameter 120mm
Maximun clamping 0.96KN
Allowable pressure 0.2-1MPa
Limit speed 150r/min
Clamping range 0-120mm
Central height 230mm
Rotational inertia 1.63kg.m²
Rotating part weight 76kg
Whole unit weight 123kg



Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
​3. Dimensions
Lingman Simple Pneumatic Pipe Cutting Chuck With Square Hole For Laser Pipe CutterLingman Simple Pneumatic Pipe Cutting Chuck With Square Hole For Laser Pipe Cutter

4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.


6. Production Line
Lingman Simple Pneumatic Pipe Cutting Chuck With Square Hole For Laser Pipe Cutter
