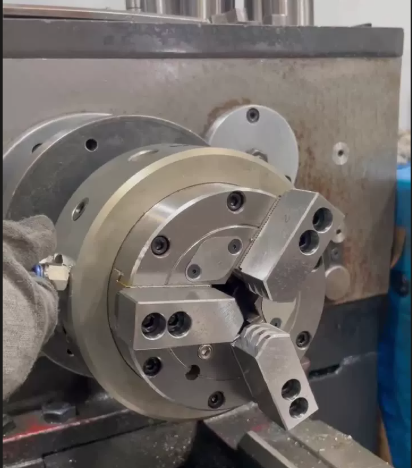

12 Inch 320mm Front Mounted Pneumatic Rotary Chuck with 80.5KN Clamping Force and 1200R/Min Speed for CNC Lathe
12 Inch 320mm Front Mounted Pneumatic Rotary Chuck with 80.5KN Clamping Force and 1200R/Min Speed for CNC Lathe
12 Inch 320mm Front Mounted Pneumatic Rotary Chuck with 80.5KN Clamping Force and 1200R/Min Speed for CNC Lathe
12 Inch 320mm Front Mounted Pneumatic Rotary Chuck with 80.5KN Clamping Force and 1200R/Min Speed for CNC Lathe
Specifications
Price :
1800 USD
Packaging Details :
Plywood Box
Clamping Range :
60-350mm
Payment Terms :
D/P, L/C, D/A, T/T, Western Union, MoneyGram
Number of Jaws :
3
Allowable Pressure :
0.4-0.8Mpa
Weight :
95.8KG
Application :
Laser Cutting
Model Number :
LM320FA
Bracing Range :
60-350mm
Supply Ability :
500 sets per month
Stroke(Diameter) :
8.5mm
Limit Speed :
1200R/Min
Delivery Time :
25 days
Core Components :
Bearing
Place of Origin :
Changzhou, Jiangsu, China
MOQ :
1
Brand Name :
Lingman
Max. Clamping Force :
80.5KN
Description

1.Overview

The Front-Mounted Pneumatic Chuck is a high-performance workholding solution specifically designed for CNC lathes and conventional turning machines. Unlike traditional hydraulic chucks that require a drawbar and a rear-mounted cylinder, this power chuck integrates the actuation mechanism directly into the chuck body, which is mounted at the front end of the spindle

2.Parameter

12 Inch 320mm Front Mounted Pneumatic Rotary Chuck with 80.5KN Clamping Force and 1200R/Min Speed for CNC Lathe12 Inch 320mm Front Mounted Pneumatic Rotary Chuck with 80.5KN Clamping Force and 1200R/Min Speed for CNC Lathe

Item Specification
Model LM320FA
Clamping Range Φ60 – Φ350mm
Function Lathe processing
Drive Type Pneumatic / Servo
Repeat Accuracy ≤0.05mm
Rotation Accuracy ≤0.05mm
Max Speed 1200 RPM
Working Pressure 0.4–0.8MPa
Application CNC Lathe Processing

3.Product Line

12 Inch 320mm Front Mounted Pneumatic Rotary Chuck with 80.5KN Clamping Force and 1200R/Min Speed for CNC Lathe

12 Inch 320mm Front Mounted Pneumatic Rotary Chuck with 80.5KN Clamping Force and 1200R/Min Speed for CNC Lathe

4.Application

12 Inch 320mm Front Mounted Pneumatic Rotary Chuck with 80.5KN Clamping Force and 1200R/Min Speed for CNC Lathe

Construction Furniture & Fitness Equipment Automotive Industry

5.Why Choose US?

✅ Over 12 years of manufacturing experience

✅ Professional R&D team

✅ Strict quality inspection before shipment

✅ Complete after-sales support

✅ OEM & ODM available

✅ Global customers trust our brand

6.Contact US

If you need catalog, quotation, sample or customization, please feel free to contact us now!

Email: sales56@lmjxkj.com

WhatsApp: +86 15961281158

Address: No.8-2 Dongfang East Road, Hengshanqiao Town, Changzhou Economic Development Zone, Jiangsu Province, China
