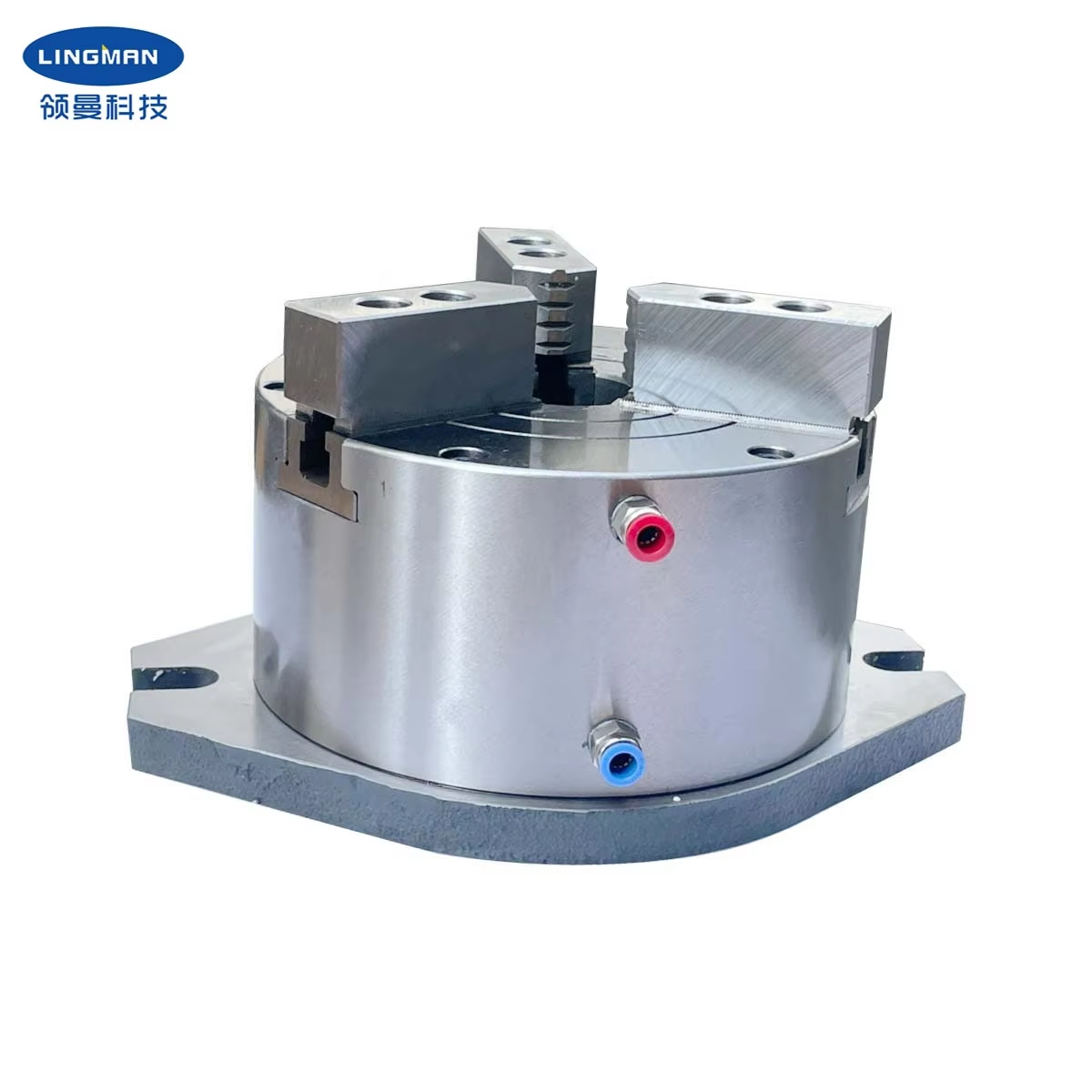

8 Inch 200mm Vertical Hollow Pneumatic Rotary Chuck with 49.1KN Clamping Force for CNC Lathe Machine
8 Inch 200mm Vertical Hollow Pneumatic Rotary Chuck with 49.1KN Clamping Force for CNC Lathe Machine
8 Inch 200mm Vertical Hollow Pneumatic Rotary Chuck with 49.1KN Clamping Force for CNC Lathe Machine
8 Inch 200mm Vertical Hollow Pneumatic Rotary Chuck with 49.1KN Clamping Force for CNC Lathe Machine
Specifications
Allowable Pressure :
0.4-0.8Mpa
Weight :
28KG
Price :
300 USD
Packaging Details :
Plywood Box
Clamping Range :
5-210mm
Payment Terms :
D/P, L/C, D/A, T/T, Western Union, MoneyGram
Core Components :
Bearing
Model Number :
LM200HAL
Bracing Range :
20-240mm
Supply Ability :
500 sets per month
Max. Clamping Force :
49.1KN
Delivery Time :
25 days
Stroke(Diameter) :
4.2mm
Place of Origin :
Changzhou, Jiangsu, China
Number of Jaws :
3
MOQ :
1
Application :
Laser Cutting
Brand Name :
Lingman
Description

1.Overview

The Pneumatic Chuck is a high-performance workholding solution specifically designed for CNC lathes and conventional turning machines. Unlike traditional hydraulic chucks that require a drawbar and a rear-mounted cylinder, this power chuck integrates the actuation mechanism directly into the chuck body, which is mounted at the front end of the spindle

2.Parameter

8 Inch 200mm Vertical Hollow Pneumatic Rotary Chuck with 49.1KN Clamping Force for CNC Lathe Machine8 Inch 200mm Vertical Hollow Pneumatic Rotary Chuck with 49.1KN Clamping Force for CNC Lathe Machine

Item Specification
Model LM160HAL
Clamping Range Φ5 – Φ210mm
Function Lathe processing
Drive Type Pneumatic / Servo
Repeat Accuracy ≤0.05mm
Rotation Accuracy ≤0.05mm
Working Pressure 0.4–0.8MPa
Application CNC Lathe Processing

3.Product Line

8 Inch 200mm Vertical Hollow Pneumatic Rotary Chuck with 49.1KN Clamping Force for CNC Lathe Machine

8 Inch 200mm Vertical Hollow Pneumatic Rotary Chuck with 49.1KN Clamping Force for CNC Lathe Machine

4.Application

8 Inch 200mm Vertical Hollow Pneumatic Rotary Chuck with 49.1KN Clamping Force for CNC Lathe Machine

Construction Furniture & Fitness Equipment Automotive Industry

5.Why Choose US?

✅ Over 12 years of manufacturing experience

✅ Professional R&D team

✅ Strict quality inspection before shipment

✅ Complete after-sales support

✅ OEM & ODM available

✅ Global customers trust our brand

6.Contact US

If you need catalog, quotation, sample or customization, please feel free to contact us now!

Email: sales56@lmjxkj.com

WhatsApp: +86 15961281158

Address: No.8-2 Dongfang East Road, Hengshanqiao Town, Changzhou Economic Development Zone, Jiangsu Province, China
