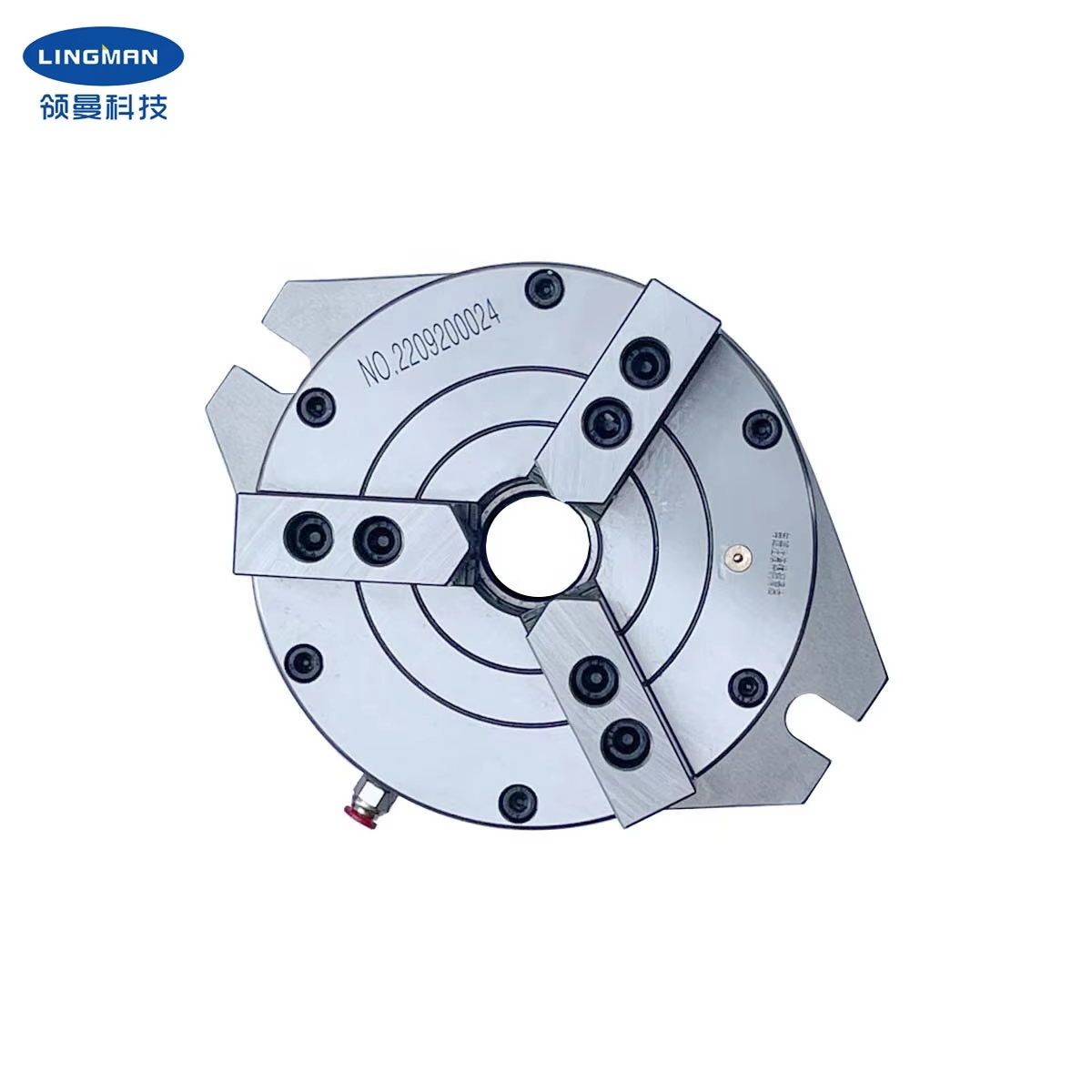

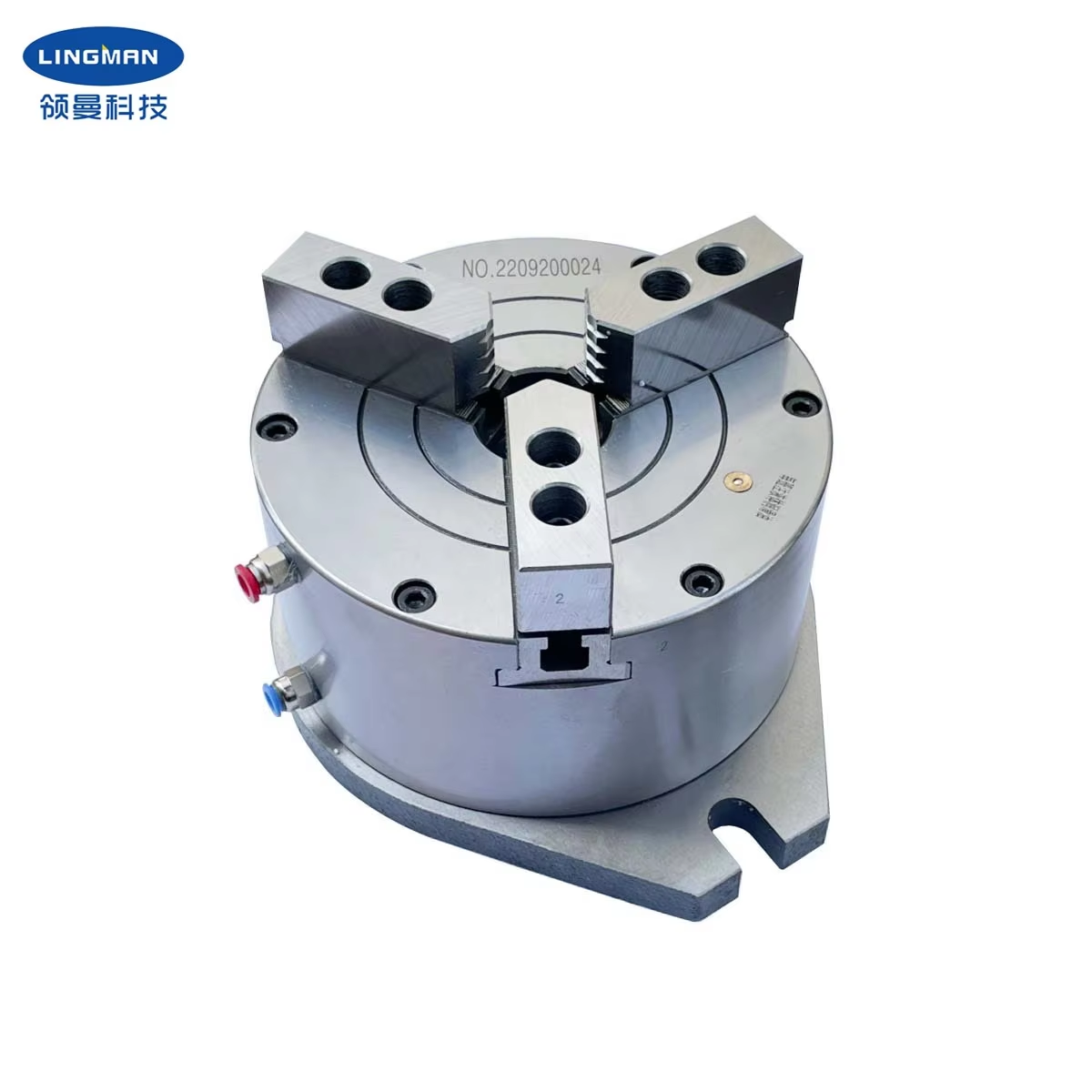

6 Inch 160mm Vertical Hollow Pneumatic Rotary Chuck with Max. Clamping Force 32.9KN for CNC Lathe Machine
6 Inch 160mm Vertical Hollow Pneumatic Rotary Chuck with Max. Clamping Force 32.9KN for CNC Lathe Machine
6 Inch 160mm Vertical Hollow Pneumatic Rotary Chuck with Max. Clamping Force 32.9KN for CNC Lathe Machine
6 Inch 160mm Vertical Hollow Pneumatic Rotary Chuck with Max. Clamping Force 32.9KN for CNC Lathe Machine
Specifications
Price :
300 USD
Packaging Details :
Plywood Box
Allowable Pressure :
0.4-0.8Mpa
Weight :
18.6KG
Payment Terms :
D/P, L/C, D/A, T/T, Western Union, MoneyGram
Clamping Range :
2-170mm
Model Number :
LM160HAL
Core Components :
Bearing
Supply Ability :
500 sets per month
Bracing Range :
20-180mm
Delivery Time :
25 days
Max. Clamping Force :
32.9KN
Place of Origin :
Changzhou, Jiangsu, China
Stroke(Diameter) :
3.7mm
MOQ :
1
Number of Jaws :
3
Brand Name :
Lingman
Application :
Laser Cutting
Description

1.Overview

The Pneumatic Chuck is a high-performance workholding solution specifically designed for CNC lathes and conventional turning machines. Unlike traditional hydraulic chucks that require a drawbar and a rear-mounted cylinder, this power chuck integrates the actuation mechanism directly into the chuck body, which is mounted at the front end of the spindle

2.Parameter

6 Inch 160mm Vertical Hollow Pneumatic Rotary Chuck with Max. Clamping Force 32.9KN for CNC Lathe Machine6 Inch 160mm Vertical Hollow Pneumatic Rotary Chuck with Max. Clamping Force 32.9KN for CNC Lathe Machine

Item Specification
Model LM160HAL
Clamping Range Φ2 – Φ170mm
Function Lathe processing
Drive Type Pneumatic / Servo
Repeat Accuracy ≤0.05mm
Rotation Accuracy ≤0.05mm
Working Pressure 0.4–0.8MPa
Application CNC Lathe Processing

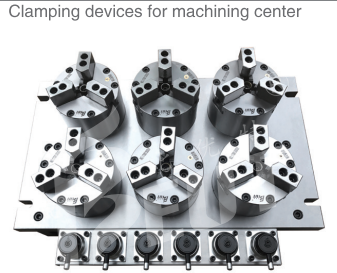

3.Product Line

6 Inch 160mm Vertical Hollow Pneumatic Rotary Chuck with Max. Clamping Force 32.9KN for CNC Lathe Machine

6 Inch 160mm Vertical Hollow Pneumatic Rotary Chuck with Max. Clamping Force 32.9KN for CNC Lathe Machine

4.Application

6 Inch 160mm Vertical Hollow Pneumatic Rotary Chuck with Max. Clamping Force 32.9KN for CNC Lathe Machine

Construction Furniture & Fitness Equipment Automotive Industry

5.Why Choose US?

✅ Over 12 years of manufacturing experience

✅ Professional R&D team

✅ Strict quality inspection before shipment

✅ Complete after-sales support

✅ OEM & ODM available

✅ Global customers trust our brand

6.Contact US

If you need catalog, quotation, sample or customization, please feel free to contact us now!

Email: sales56@lmjxkj.com

WhatsApp: +86 15961281158

Address: No.8-2 Dongfang East Road, Hengshanqiao Town, Changzhou Economic Development Zone, Jiangsu Province, China
