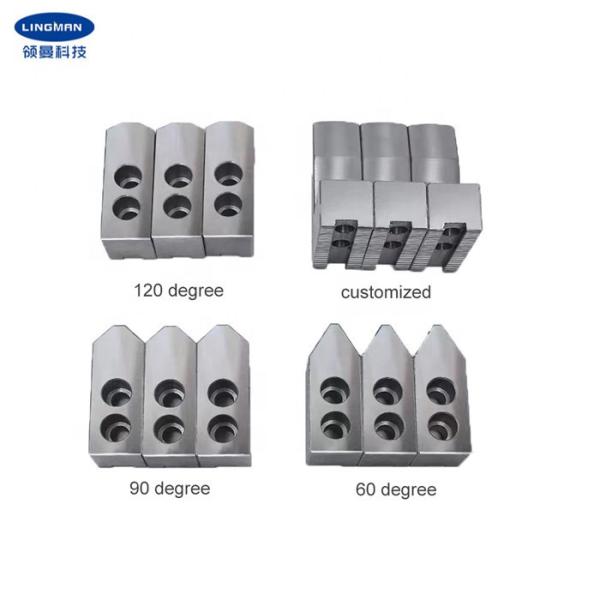

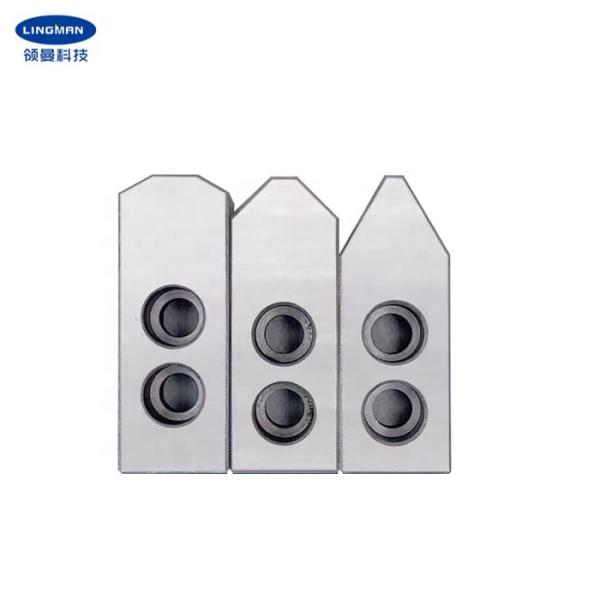

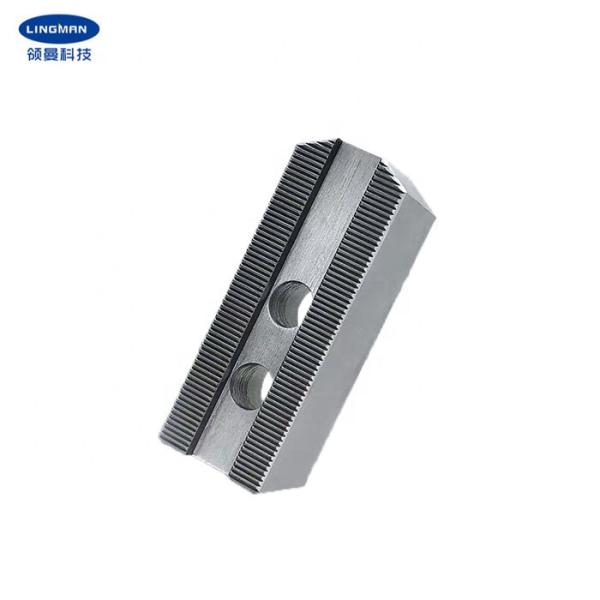

Widely Used 4/5/6/8 Inch Soft 3 Jaws For Hydraulic Power Chuck
Widely Used 4/5/6/8 Inch Soft 3 Jaws For Hydraulic Power Chuck
Widely Used 4/5/6/8 Inch Soft 3 Jaws For Hydraulic Power Chuck
Widely Used 4/5/6/8 Inch Soft 3 Jaws For Hydraulic Power Chuck
Widely Used 4/5/6/8 Inch Soft 3 Jaws For Hydraulic Power Chuck
Widely Used 4/5/6/8 Inch Soft 3 Jaws For Hydraulic Power Chuck
Specifications
Brand Name :
Lingman
Model Number :
NJ04/05/06/08/10
Place of Origin :
Changzhou, Jiangsu, China
MOQ :
5 sets
Price :
USD 8-55 set
Payment Terms :
T/T, L/C
Supply Ability :
200 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Wood carton
Product name :
Soft jaws
Material :
Steel
Serration pitch :
1.5x60°
Weight :
0.5KG
Package :
Wooden carton
Application :
CNC Lathe Cutting Machine
Feature :
Higher precision
Description
Multi-Specification Soft Jaws 4/5/6/8/10 Inch for Hydraulic Chucks

1. Description

Our company is a professional manufacturer of CNC lathes and chucks for laser cutting machines.

The soft jaw can change the diameter and shape of the arc of the jaw surface at any time according to actual needs, and change the hardened jaw of the three jaw chuck to a low carbon steel, copper or aluminum alloy jaw.
The positioning accuracy of the soft jaw chuck can still be maintained within 0.05mm. Soft-jaw chucks hold machined surfaces or soft metals and are not easy to grip surfaces. For thin-walled workpieces, fan-shaped claws can be used to increase the contact area with the workpiece and reduce the deformation of the workpiece.

When turning a large number of workpieces, in order to improve the positioning accuracy of the workpiece during processing and save the auxiliary time during workpiece installation, a soft jaw chuck can be used.

​ 2. Dimensions
Widely Used 4/5/6/8 Inch Soft 3 Jaws For Hydraulic Power Chuck

Widely Used 4/5/6/8 Inch Soft 3 Jaws For Hydraulic Power Chuck

3. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws

4. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
s. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.


5. Production Line
Widely Used 4/5/6/8 Inch Soft 3 Jaws For Hydraulic Power Chuck
