Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Specifications
Place of Origin :
Shandong, China
Condition :
New
Warranty :
1 Year
After-sales Service Provided :
Video technical support, Field maintenance and repair service, Online support
Spare Parts Type :
Laser module
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product
Brand Name :
Lasence
Key Selling Points :
High stability, Focus adjustable, Little beam spot
Showroom Location :
Germany
Applicable Industries :
Retail, Other, Industry
Weight (KG) :
0.1 KG
Wavelength :
561nm±2nm
Output Power :
2-9mW
Output Power Mode :
Pulse
Beam Divergence: :
≤1.5mrad
Beam Diameter at output window :
≤5mm
Beam Mode :
TEMoo
Power Type :
PWM/50% duty cycle
Operating Voltage :
2.6-3V
Operating Current :
≤50mA
Module size :
8x25mm
Packaging Details :
ESD Plastic bag, outside with carton package
Supply Ability :
5000 Piece/Pieces per Day
Price :
$200.00/pieces 1-9 pieces
Description
Product Overview

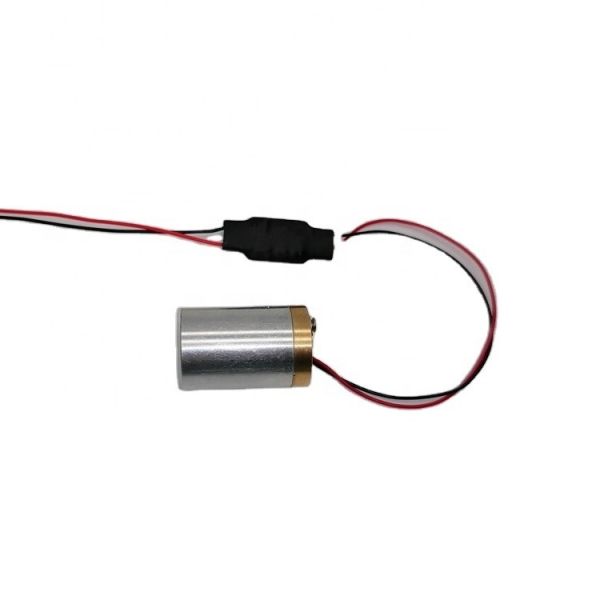

561nm DPSS dot laser module

This small size yellow 561nm laser module can used in science testing, laser pointers and other pointing purpose applications.
FEATURES AT A GLANCE
· DPSS 561nm yellow dot laser module
· Fast Rise Time
· High Reliability
-TEMoo

Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
yellow
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
dot
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
561nm
PRODUCT SPECIFICATIONS
No
Parameters
1
Wavelength
561nm±2nm
2
Output Power
2-9mW
3
Output Mode
Pulsed
4
Beam Divergence
≤1.5mrad
5
Beam Size at output window
≤5mm
6
Operating Voltage
2.5-3V
7
Operating Current
≤500mA
8
Module Size
8x25mm
PRODUCT CONFIGURATION
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
SIMILAR PRODUCTS
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Operating Voltage 2.6-3V Customizable 561nm Yellow Laser Module for Laser Precision
Why Choose Us

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products.
The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years.
Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module,as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications ofbiomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have 30+engineers and have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia.
Just tell us what you want to achieve, and Lasence will help you get there.
