Specifications
Place of Origin :
Shandong, China
Condition :
New
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field maintenance and repair service, Online support
Spare Parts Type :
Laser module
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product
Brand Name :
Lasence
Key Selling Points :
High stability
Showroom Location :
Germany
Applicable Industries :
Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food & Beverage Shops, Other, Industry
Weight (KG) :
1.8 KG
Wavelength :
561nm±2nm
Output Power :
≥100mW
Power Stability at constant temperature :
±10%
Beam Divergence :
2mrad
Beam diamerer at ourput window :
8mm
Beam height from beam plate :
85mm
Power Supply(DC,V) :
100-240V
Power Consumption :
60W
Operating Case Temperature :
15 to 35℃
Output Powermode :
CW
Packaging Details :
Safty Box inside, carton outside.
Port :
Qingdao,China
MOQ :
5 pieces
Price :
$3,900.00/pieces 5-9 pieces
Description
Specifications
Solid State DPSS Laser with 1.8 KG Weight and 85mm Beam Height 100mW Yellow Laser
Wavelength:

561nm±2nm

Application: Medical, Military, Optical Instrument, Scientific Experiment

Output Power: ≥ 100mW

Output Mode: CW

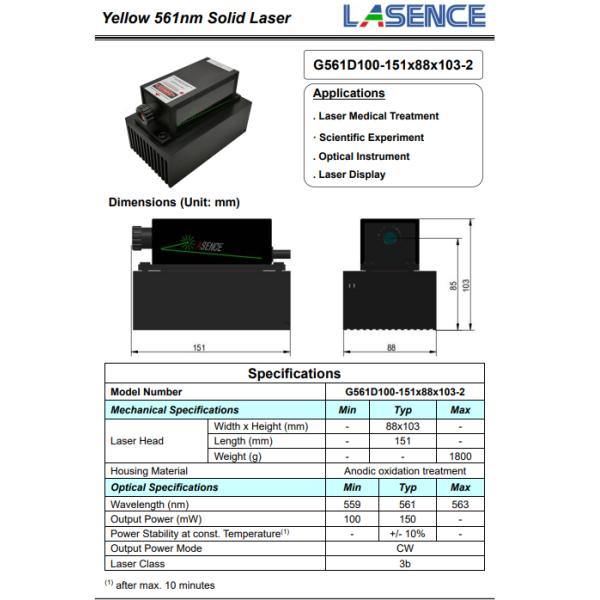

Dimention: see below drawings


Dimensions (Unit: mm)
Solid State DPSS Laser with 1.8 KG Weight and 85mm Beam Height 100mW Yellow Laser
Solid State DPSS Laser with 1.8 KG Weight and 85mm Beam Height 100mW Yellow Laser
Solid State DPSS Laser with 1.8 KG Weight and 85mm Beam Height 100mW Yellow Laser
Solid State DPSS Laser with 1.8 KG Weight and 85mm Beam Height 100mW Yellow Laser
Company Profile
Solid State DPSS Laser with 1.8 KG Weight and 85mm Beam Height 100mW Yellow Laser
Solid State DPSS Laser with 1.8 KG Weight and 85mm Beam Height 100mW Yellow Laser
Solid State DPSS Laser with 1.8 KG Weight and 85mm Beam Height 100mW Yellow Laser
Solid State DPSS Laser with 1.8 KG Weight and 85mm Beam Height 100mW Yellow Laser
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
