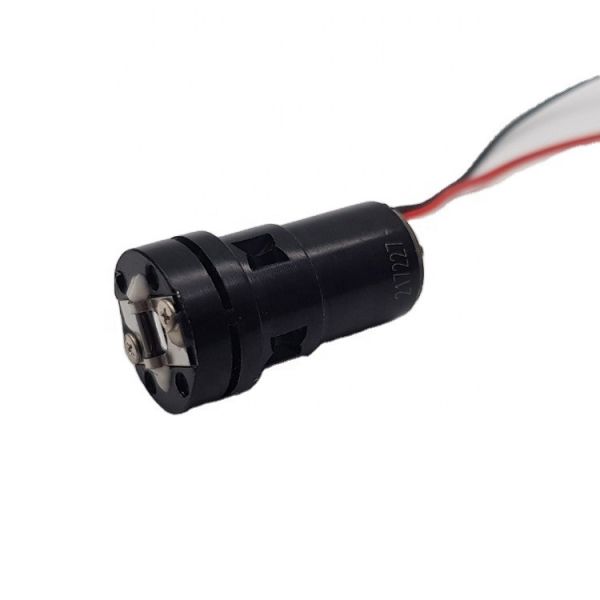

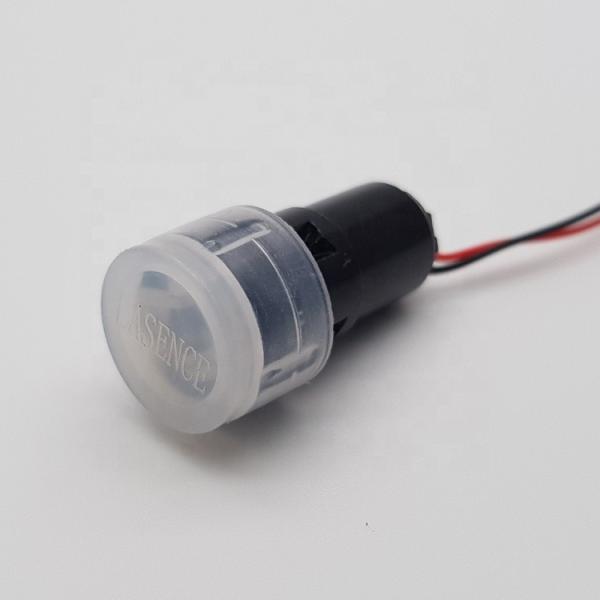

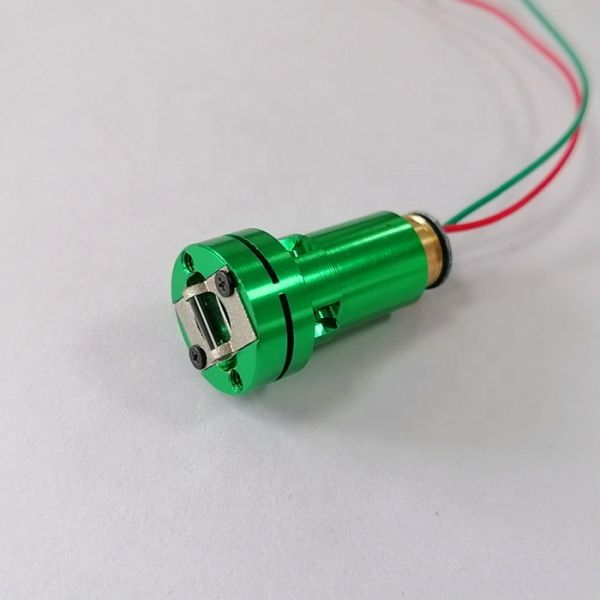

0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
Specifications
Place of Origin :
China
Condition :
New
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field maintenance and repair service, Online support
Spare Parts Type :
Laser module
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product
Brand Name :
Lasence
Key Selling Points :
High stability, wide temperature range
Showroom Location :
Germany
Applicable Industries :
Industry
Weight (KG) :
0.02 KG
Wavelength :
545nm/530nm
Output Power :
8mW
Output Power Mode :
CW
Fan Angle :
120
Linewidth at 7m :
Max 3.5 mm
Line Curvature (mm) at 10m :
±0.5
Power Type :
APC
Voltage :
2.6-3.0V
Current :
220mA
Operating Temperature :
-10 to 40℃
Packaging Details :
ESD Plastic bag, outside with carton package
Port :
Qingdao,China
MOQ :
10 pieces
Price :
$20.00/pieces 10-499 pieces
Description
Hot Sale Line Laser Modules
Lasence also develop custom lasers according to your needs. Tell us what you need, we can help you to achieve.
Products Description
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs



Features：
· Gaussian Line
530nm or 545nm or 555nm
555 is most visible
· Wide Temperature Range
· Fast Rise Time
· High Reliability
These line laser modules are used for laser level or similar application
Dimensions (Unit: mm)
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
Company Profile

545nm line laser modules

The visible green laser module is used for laser level and similar application.
0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
