Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Specifications
Place of Origin :
China
Condition :
New
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field maintenance and repair service, Online support
Spare Parts Type :
Laser module
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product
Brand Name :
Lasence
Key Selling Points :
High stability, wide temperature range
Showroom Location :
Germany
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG) :
0.02 KG
Wavelength :
532nm or 545nm
Output Power :
1-20mW optional
Output Power Mode :
CW
Fan Angle: :
10 / 15 / 20 / 30 / 45 / 60 / 75 / 90 / 120°- optional
Linewidth at 10m :
< 4.5mm
Line Curvature (mm) at 10m :
±0.5
Power Type :
APC
Voltage :
2.8-5.2V
Operating Temperature :
-30 to 50℃
RoHS Compliance Declaration :
Yes
Price :
$115.00/pieces 1-99 pieces
Description
Products Description
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage






Features
· Gaussian Line
· Wide Temperature Range
· Fast Rise Time
· High Reliability

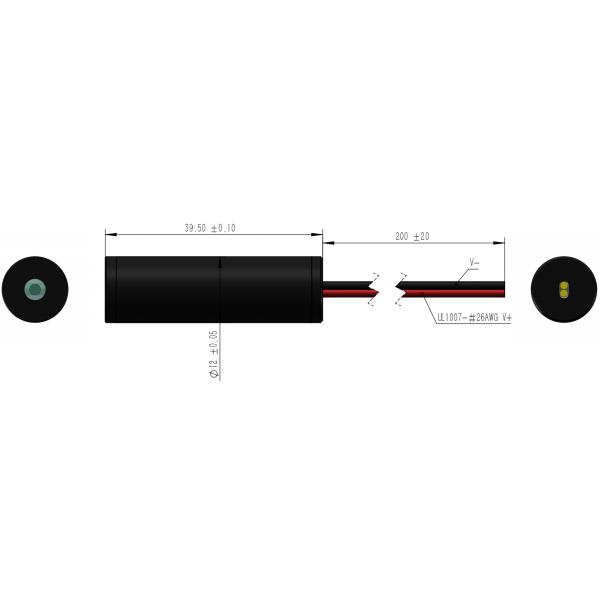

Dimensions (Unit: mm)
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage

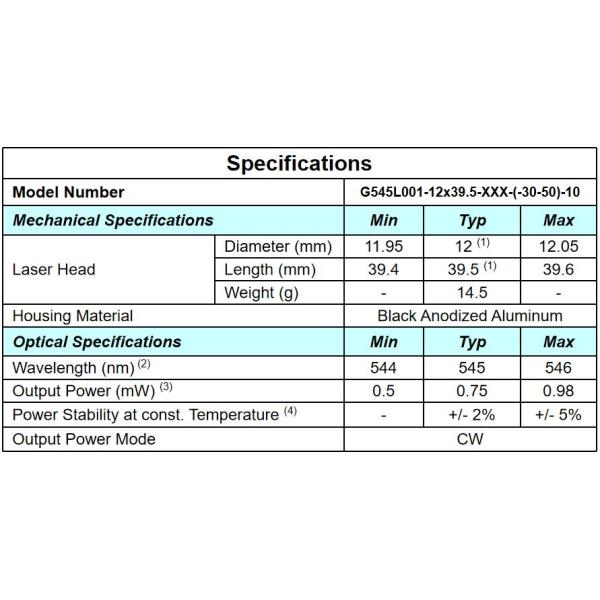

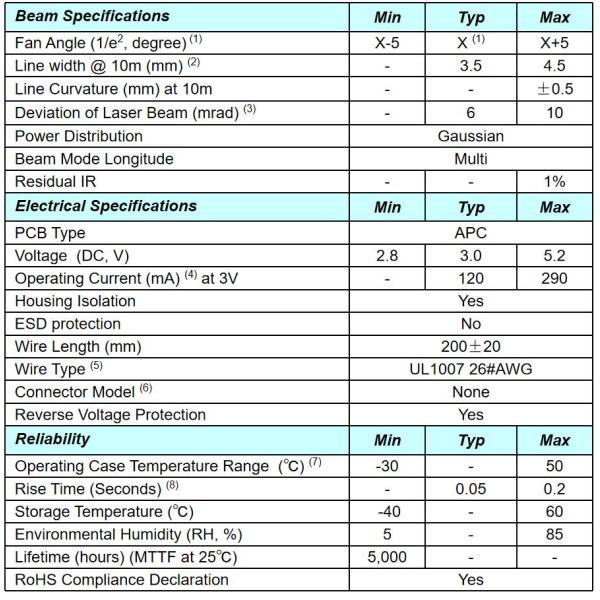

Specifications
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Company Profile
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
