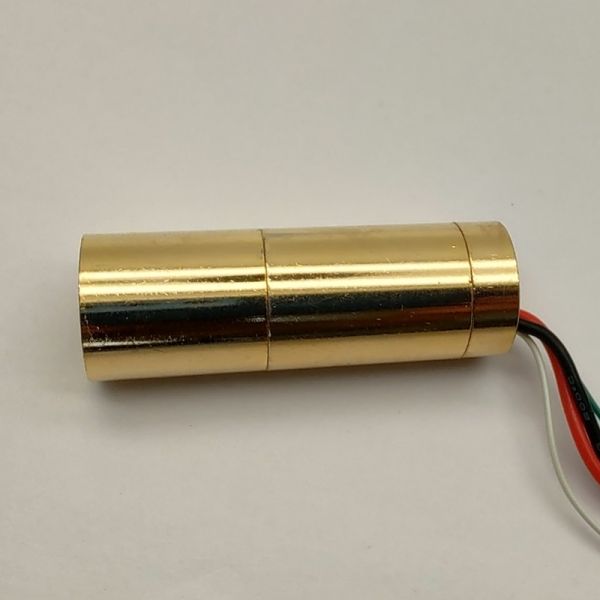

Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Specifications
Place of Origin :
Shandong, China
Condition :
New
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field maintenance and repair service, Online support
Spare Parts Type :
Laser module
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product
Brand Name :
Lasence
Key Selling Points :
High stability, wide temperature range
Showroom Location :
Germany, Colombia
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Weight (KG) :
0.2 KG
Wavelength :
555nm
Output Power :
500mW
Output Power Mode :
CW
Beam Divergence :
Max 30mrad
Beam Diameter at output window :
0.5mm
Beam Mode transverse :
muti-mode
Power Type :
APC
LD Voltage :
1.8-2.3V
Operating Temperature :
25-30℃
RoHS Compliance Declaration :
Yes
Price :
$2,099.00/pieces 1-9 pieces
Description
Products Description
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs



Features：
· DPSS Laser
· 500mW@555nm
· Wide Temperature Range
· Fast Rise Time
· High Reliability

The below datasheet is for 200mW, it can be up to 500mW LASER MODULE at 555nm, and can be 1000mW at 545nm.
Dimensions (Unit: mm)
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Specifications
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Company Profile
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser modules, line laser modules and ring laser modules, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Certifications
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Exhibition
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Working Environment
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
Payment & Delivery
Custom DPSS Laser Module 532nm 561nm 585nm 594nm for Research and Development Needs
