Specifications
Brand Name :
FLYIN/OEM/COSTA
Model Number :
SNP-AH340UT
Certification :
CE,FCC ,ROHS
Place of Origin :
China
Payment Terms :
T/T, Western Union, MoneyGram,Alibaba Trade Assurance
Supply Ability :
500 Pieces Per Month
Delivery Time :
5-10 work days
Brightness :
3400 ANSI Lumens
Resolution :
1920*1080
Contrast Ratio :
2550000：1
Display Technology :
DLP
Throw Ratio :
0.223
Description
3400 ANSI Lumens Ultra Short Throw Projector High Contrast Ratio
Product Overview

SNP-AH340UT Ultra Short Throw DLP 4K Projector featuring 3400 ANSI lumens brightness and 2,550,000:1 high contrast ratio, designed for educational and professional projection applications.

Key Features
  • Motorized Focus Lens Center Design: Precise motorized focus adjustment with centered lens for stable positioning and easy installation with electronic whiteboards
  • Ultra-Quiet Operation: Operating noise regulated below 30 decibels in standard mode for quiet demonstrations
  • Split Screen Splicing Function: Built-in split-screen capability for multiple projector setups without additional accessories
  • Versatile Connectivity: Multiple ports including 2 HDMI interfaces, 2 VGA interfaces for computers, and various system applications
  • Automatic Keystone Correction: ±40° vertical keystone correction with digital zoom, supporting 360° free angle installation
  • 3D Display Support: DLP Link 3D compatibility for stereo projection
  • DICOM Simulation Mode: High-resolution X-ray image capability for medical teaching requirements
  • High-Definition Laser Display: Stable laser light source with 1080P display chip for detailed, refined image edges
  • High Contrast & Color Gamut: 2,550,000:1 contrast ratio with fine grayscale display and REC.709 color gamut standard compliance
  • Long-Life Laser Source: ALPD laser technology with 25,000+ hour lifespan and minimal brightness attenuation
  • Ultra Short Throw Projection: 0.23:1 projection ratio - 100" screen projection from only 19cm distance
Technical Specifications
Parameter Specification SNP-AH340UT
Display Technology 显示技术 DLP
Native Resolution 分辨率 1920×1080
Brightness 亮度 3400 ANSI
Uniformity 均匀性 85%
Contrast Ratio 对比度 2,550,000:1
Throw Ratio 投射比 0.233
Aspect Ratio 宽高比 16:9 (Standard)/16:10(Compatible)/4:3 (Compatible)
Screen Size 屏幕尺寸 80-100 inch
Keystone Correction 梯形校正 V:±40° (Auto)
Light Source Type 类型 ALPD
Light Source Lifetime 寿命(H) 25000 H
Standby Power Consumption 待机功率 <0.5W
Power Consumption 电源功率 340W
Power Input 输入电压 100-240V
Power Frequency 电源频率 50/60Hz
Noise 噪音 <30dB
Speaker 喇叭 10W
Dimensions 尺寸 425*330*105mm
Weight 重量 6kg
Operating Temperature 工作温度 0~40°/35~40°( ECO)
Operating Humidity 工作湿度 20%~80%
Storage Temperature 储存温度 -20℃~60℃
Storage Humidity 储存湿度 10%~90%
High Altitude Mode 高海拔模式 Yes
Connectivity & Compatibility

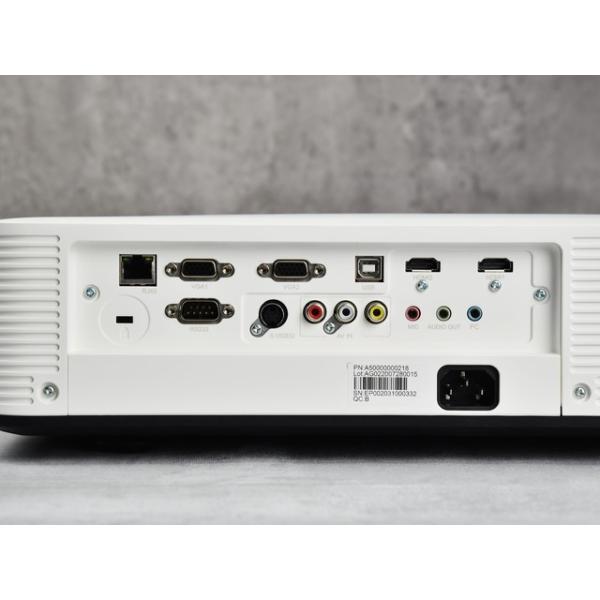

Interface Type Ports
Video Ports Input: HDMI×2; RGB×2(RGB IN 2 Share with RGB Out); Video(RCA)×1; S-Video×1;
Output: RGB×1
Audio Ports Input: Audio in(L/R)--RCA×1; Audio in(mini jack,3.5mm)×1; MIC ×1;
Output: Audio out(mini-jack,3.5mm)×1
Control Ports RS232×1; LAN(RJ45)×1; USB(type B only for debug)×1
Signal Compatibility Digital: 1080p, up to WUXGA(1920×1200@60Hz)
Analog: up to UXGA(1600×1200@60Hz)
Component Video: 1080p/1080i/720p/576p/576i/480p/480i
Composite Video: NTSC-M/NTSC 4.43/PAL/PAL-M/PAL-N/SECAM
Additional Functions
  • 18 OSD languages
  • 3D function
  • Lens centered design
  • DICOM mode
  • One-key mute
  • Screen segmentation
  • Quick switch
  • High altitude mode
  • Electric focus
  • Automatic signal search
  • Automatic keystone correction
  • Screen freeze
  • Auto black screen
