550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
550gsm PVC fabric 35mm double flap keder tent accessories for tent
Specifications
Brand Name :
Event Tent
Model Number :
K013
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
1000m
Price :
USD0.4 to USD1 per meter
Supply Ability :
600000m per month
Delivery Time :
20 to 25 days
Packaging Details :
carton roll packing
Size :
diameter 13mm
Cord :
transparent PVC, colored PVC, Φ3-Φ30；color optional
Fabric :
Panama fabric
Fabric weight :
850gsm, 750gsm, 550gsm, optional
welding :
high frequency welding
Flap :
single, double, optional
Description

550gsm PVC fabric 35mm double flap keder tent accessories for tent

Quick Detail

  1. Size: diameter 13mm
  2. Material: PVC cord, Panama fabric
  3. Flap: single or double for optional
  4. Packing: 200m/roll

Specification

Model PVC diameter Keder diameter/mm Weld/mm Flap/mm Fabric color PVC coated color Fabric weight
diameter/mm (A) (B) (C)
D/S7-10-20 6 7/7.3 10 20 White/gray/black White/gray/black 750G/M2
D/S7.3-10-20 White/gray/black White/gray/black 850G/M2
D/s7.5-10-25 6.5 7.5/8 10 25 White/gray/black White/gray/black 750G/M2
D/S8-10-25 850G/M2
D/S9-10-25 8 9/9.5 10 25 White/gray/black White/gray/black 750G/M2
D/S9.5-10-25 850G/M2
D/S11.5-10-30 10 11.5 10 30 White/gray/black White/gray/black 850G/M2
D/S12.5-10-30 11 12.5 10 30 White/gray/black White/gray/black 850G/M2
D/S13.5-10-30 12 13.5 10 30 White/gray/black White/gray/black 850G/M2
D/S14.5-10-40 13 14.5 10 40 White/gray/black White/gray/black 850G/M2

Technial specification

Item Specification Standard
Yarn anti-capillarity treated 1100D PES HT
Weight 850g/sqm EN ISO 2286-2
Width customized 　
Tensile strength (warp/weft) 3000/2638 daN/5cm DIN53.354
Tear Strength (warp/weft) 430/357 daN DIN 53.363
Adhesion 110/110 daN/5cm DIN 53.357
Finish Slide-varnish aluminum side polyester 　
Resistance to Micro-organisms Degree 0, excellent ISO20743；JISL1902
Handling temperature range -30℃ to +69℃ DINEN1876-2
Quality management system 　 ISO 9001

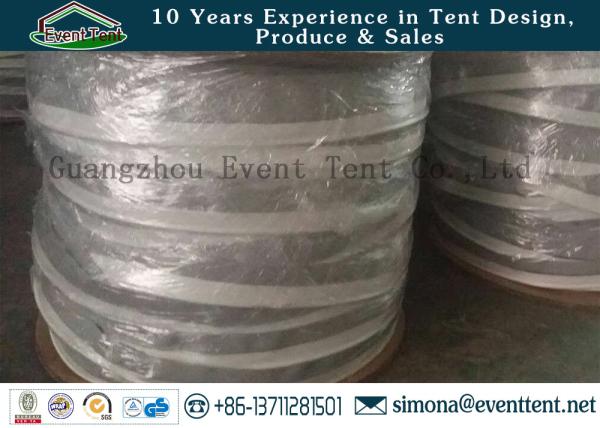

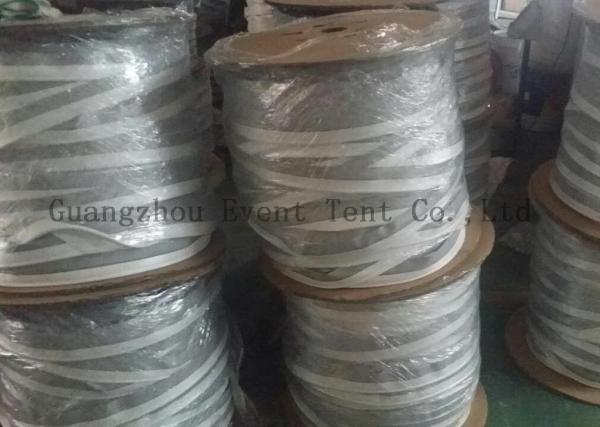

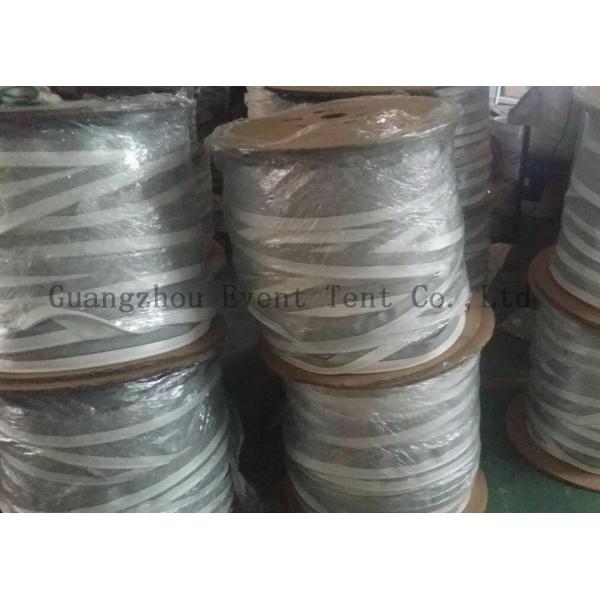

Packing

Keder diameter m/roll roll/pallet m/pallet m/container Rolling packing size/mm
7mm 200m/A roll 24 roll 4,800m 96,000m/ container 550*170
7.5mm 200m/A roll 24 roll 4,800m 96,000m/ container 550*170
8mm 200m/B roll 16 roll 3,200m 64,000m/ container 550*250
9mm-10mm 200m/C roll 12 roll 2,400m 48,000m/ container 550*330
11mm-14.5mm 200m/D roll 8 roll 1,600m 32,000m/ container 550*500

Applications

Keder is widely use in different industrial area, such as tent, advisement, sailing etc.

Competitive advanges

  • The keder is produced by advanced equipment that imported from Europe & USA. The material is EU quality standard PVC strip and famous brand PVC coated fabric.
  • All material are EU quality standard
  • Short delivery time ; we can finish the production within 15 to 30 days
  • Good quality after sales service; the keder warranty is one year, but we sure the life time is more than 8 years. if any quality problem, we can compensate the same new quantity keder for you.

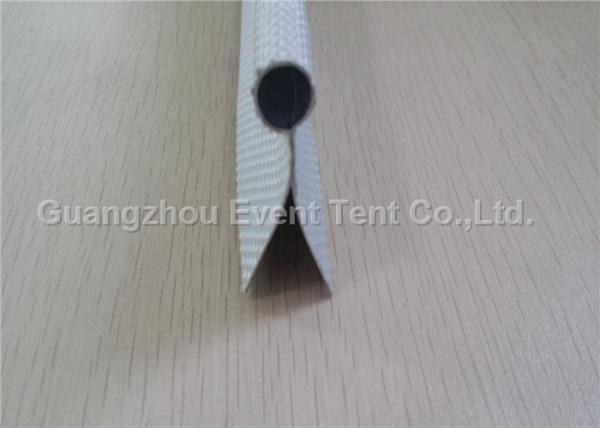

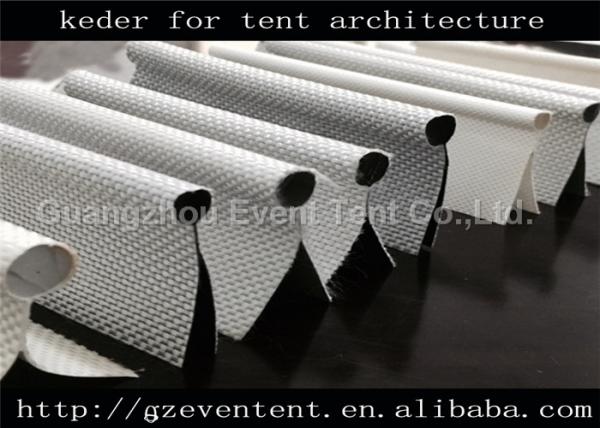

Product show:

550gsm PVC fabric 35mm double flap keder tent accessories for tent

550gsm PVC fabric 35mm double flap keder tent accessories for tent
