Middle Pressure Industrial Centrifugal Fans High Flow Air Blower 380v 420v
Middle Pressure Industrial Centrifugal Fans High Flow Air Blower 380v 420v
Middle Pressure Industrial Centrifugal Fans High Flow Air Blower 380v 420v
Middle Pressure Industrial Centrifugal Fans High Flow Air Blower 380v 420v
Middle Pressure Industrial Centrifugal Fans High Flow Air Blower 380v 420v
Middle Pressure Industrial Centrifugal Fans High Flow Air Blower 380v 420v
Middle Pressure Industrial Centrifugal Fans High Flow Air Blower 380v 420v
Middle Pressure Industrial Centrifugal Fans High Flow Air Blower 380v 420v
Specifications
Brand Name :
DAJING
Model Number :
6-30C
Certification :
CE/ISO9001/3C
Place of Origin :
HENAN PROVINCE, CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
10-60 days
Packaging Details :
Packed in wooden box, rainproof cloth, container, according to customer requirements.
Feature :
Middle Pressure
Drive :
Belt Connection
Impeller :
Backward Impeller Blade
Material :
Cast Iron
Voltage :
220v,380v,420v
Phase :
3-phase
Description

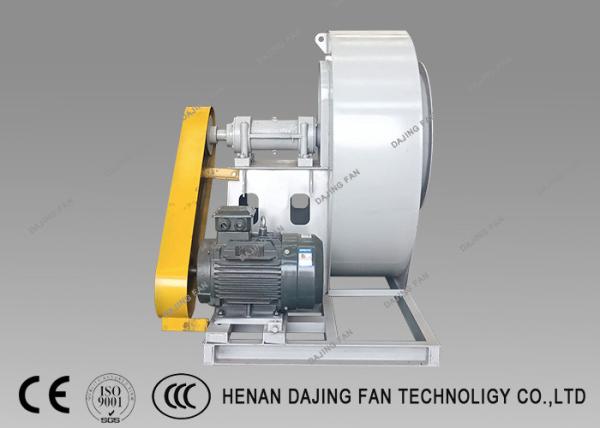

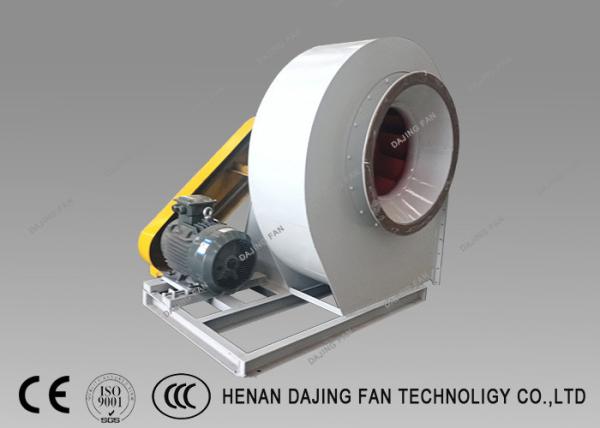

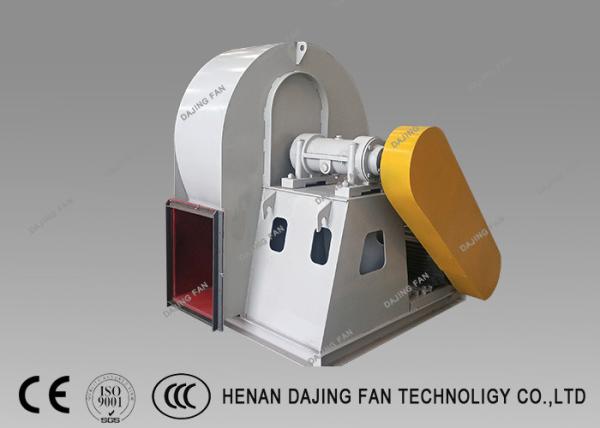

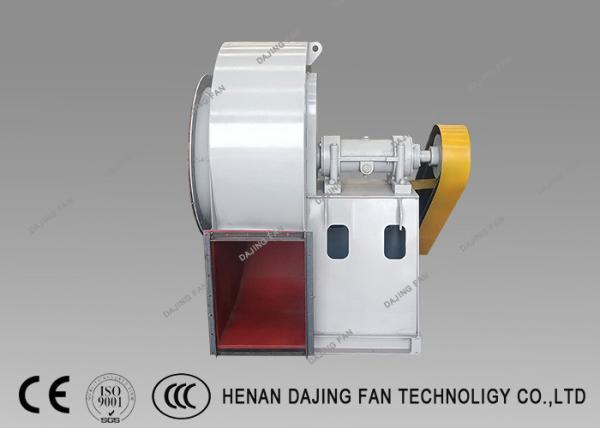

Middle Pressure Industrial Centrifugal Fans High Air Flow Blower 380v

The main features of the fan are: high fan efficiency, high total pressure, low noise, flat performance curve, wide economical use area, and the use of backward-type blades. The full-pressure efficiency of the fan at the optimum working point is 86.5% noise index ( Compared with A sound level) LS = 11.5 decibels, these two indicators are the best level compared with the current domestic industrial boilers.

Middle Pressure Industrial Centrifugal Fans High Air Flow Blower 380v
Centrifugal fan Air Flow 3000~41000 m3/h
Pressure 1800~5200 Pa
Rotating speed 2900/2400/1800 r/min
Material Carbon steel
Motor Power 5.5~75 kw
Voltage 220/380/440 v
Frequency 50/60 hz

High strength wear-resistant impeller anti-leaking bearing box.
Transmission part group consists of main shaft, bearing box, rolling bearing, pulley or coupling, etc.
Inlet and outlet flexible joints, dampers.
Inlet valve, bearing temperature and vibration dective sensers, impeller cleaning nozzle are optional.
With single suction, backward of monoblock type blades impeller have good aerodynamic performance and reliability of smooth operation.

Application field:

Industrial systems such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, environment protection, mine, metallurgy, petro-chemical, tunnel,Industrial boiler and Dust removal systems etc. , and wind tunnel.

Centrifugal fan production process:

Case Show:
