Product Overview

The Dual Conveyor Solder Ball Welding Machine is an automated laser soldering system designed for high-efficiency production environments. The system features dual conveyor lines operating with a single solder ball welding head, enabling parallel loading/unloading while maintaining continuous welding operations.

By integrating auxiliary infeed and outfeed conveyors with a rear return conveyor line, the machine significantly improves throughput, reduces operator workload, and optimizes fixture circulation.

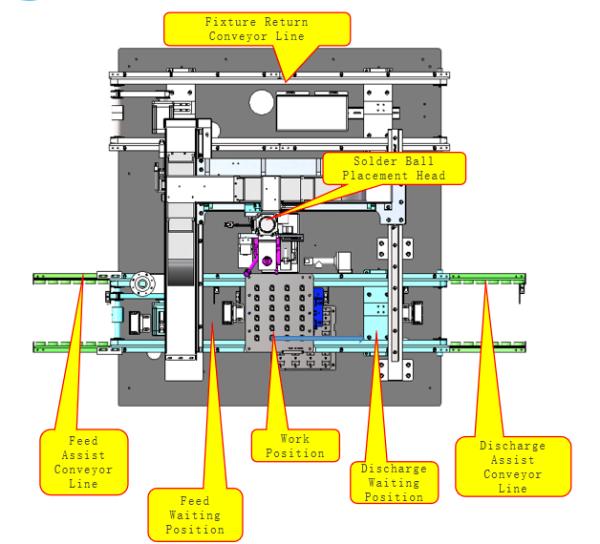

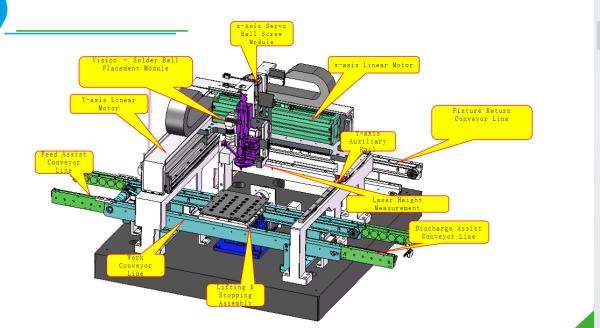

System Architecture

• Single Solder Ball Welding Head shared by two conveyor lines
• Dual Infeed Auxiliary Conveyors for fixture loading
• Central Welding Workstation for solder ball attachment
• Infeed Buffer Position for fixture queuing
• Outfeed Buffer Position for processed fixtures
• Outfeed Auxiliary Conveyor for unloading
• Rear Return Conveyor Line for fixture recirculation

Operating Workflow

• Fixtures are manually or automatically placed onto the infeed auxiliary conveyor.
• When the welding workstation is available, fixtures are transferred directly to the processing position.
• If the workstation is occupied, fixtures are temporarily held at the buffer position.
• After solder ball welding is completed, fixtures move to the outfeed buffer and then to the outfeed auxiliary conveyor.
• Processed fixtures are removed manually or automatically, and empty fixtures are returned to the infeed side via the rear return conveyor line for the next production cycle.

Key Features

• Dual Conveyor Line Design

Enables parallel material handling with a single welding head.

• Continuous Production Flow

Loading, unloading, and welding operate simultaneously to minimize downtime.

• Fixture Circulation System

Return conveyor ensures smooth and efficient fixture reuse.

• Labor-Saving Automation

Reduces manual intervention and operator dependency.

• High Equipment Utilization

Maximizes welding head efficiency while controlling system cost.

• Automation-Ready Integration

Supports connection with upstream and downstream production lines.

Typical Applications

• Solder ball welding production lines
• Semiconductor and IC packaging
• Microelectronics and sensor assembly
• High-volume automated manufacturing

Product Advantages

• Dual-line efficiency with single welding head
• Reduced idle time and higher throughput
• Optimized fixture management
• Scalable and customizable layout
• Suitable for automated production lines

Notes

Conveyor layout, buffer logic, fixture handling, and automation interfaces can be customized according to customer production requirements and factory layout.

If customization is required, you can contact Xiamen Large Automation Technology Co., Ltd.
