TV Assembly Line – LED Backlight Strip Fixation Dispensing Machine（Dispensing equipmen ensuring uniform glue volume and accurate positioning for tv led backlight module assembly processes）
TV Assembly Line – LED Backlight Strip Fixation Dispensing Machine（Dispensing equipmen ensuring uniform glue volume and accurate positioning for tv led backlight module assembly processes）
Specifications
Brand Name :
Large-auto
Model Number :
SLBDJ-0400S
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
8-10 work days
Application :
LED backlight strip fixation dispensing for TV backplates
Applicable Panel Size :
32–55 inch
Dispensing Method :
Spot dispensing, dual-track dispensing
Positioning Accuracy :
±0.1 mm
Cycle Time (Takt Time) :
≤ 18 s / pcs (6-strip configuration)
Operation Mode :
Manual loading / Manual unloading
Operating Area Height :
850 ± 50 mm (adjustable)
Overall Dimensions (L × W × H) :
3400 × 7400 × 2400 mm
Power Supply :
AC 220 V / 50 Hz
Air Supply :
0.6 MPa
Machine Weight :
Approx. 2000 kg
Description
TV Assembly Line – LED Backlight Strip Fixation Dispensing Machine
Product Overview
This system is designed for adhesive dispensing and fixation of LED backlight strips in TV backplate assembly processes.
By integrating robotic pick-and-place handling with high-precision dispensing valves, the machine ensures accurate glue placement, stable bonding, and high production efficiency for large-size TV panels.
Product Highlights

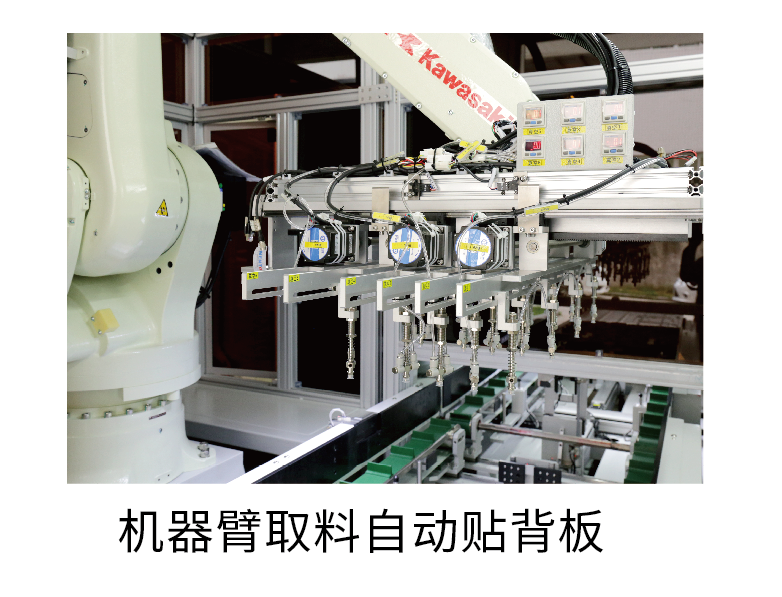

  • Robotic Arm Pick-and-Place
  • TV Assembly Line – LED Backlight Strip Fixation Dispensing Machine（Dispensing equipmen ensuring uniform glue volume and accurate positioning for tv led backlight module assembly processes）
    Automated handling of TV backplates improves consistency and reduces manual intervention.

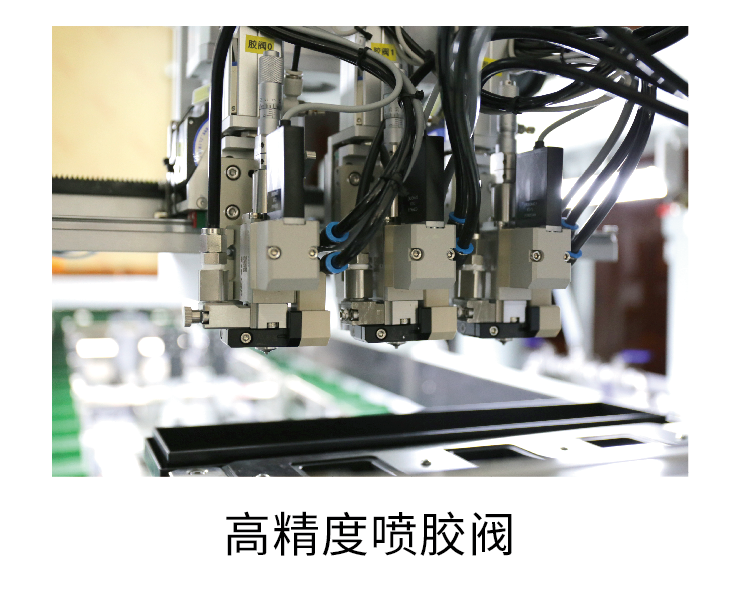

  • High-Precision Adhesive Dispensing
  • TV Assembly Line – LED Backlight Strip Fixation Dispensing Machine（Dispensing equipmen ensuring uniform glue volume and accurate positioning for tv led backlight module assembly processes）
    Equipped with precision dispensing valves to ensure uniform glue volume and accurate positioning.
  • Wide Panel Compatibility
    Supports TV backplates from 32 to 55 inches, suitable for multiple product platforms.
  • Vision-Assisted Positioning
    High-accuracy positioning system ensures precise alignment of LED backlight strips.
  • Stable & Reliable Performance
    Designed for continuous operation in mass production TV assembly lines.
  • Production Line Integration Ready
    Compatible with standard conveyor systems for easy integration into existing TV assembly lines.
  • Typical Applications
  • TV LED backlight module assembly
  • TV backplate adhesive fixation
  • Large-size display production lines
