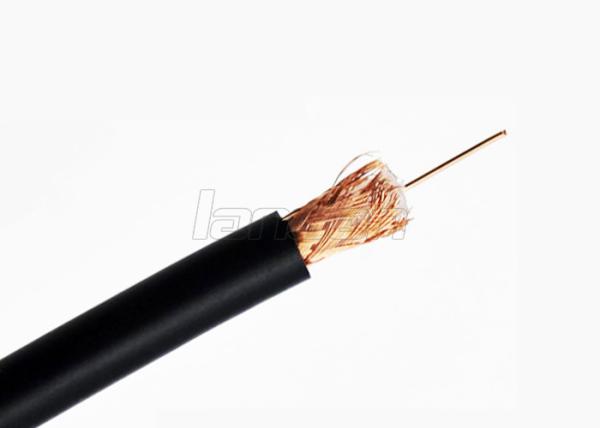

Copper Rg58 Coax Jumper Cables , Pigtail Designed TV Antenna Coaxial Cable
Copper Rg58 Coax Jumper Cables , Pigtail Designed TV Antenna Coaxial Cable
Copper Rg58 Coax Jumper Cables , Pigtail Designed TV Antenna Coaxial Cable
Copper Rg58 Coax Jumper Cables , Pigtail Designed TV Antenna Coaxial Cable
Specifications
Brand Name :
OEM/ ODM/ Lansan
Model Number :
RG58
Certification :
CE/ RoHS/ ETL/ ISO
Place of Origin :
China
MOQ :
15000 Meters
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
100000 Meters/ Day
Delivery Time :
12-14 Work Days
Packaging Details :
100 Meters/ Box
Conductor :
Copper
Conector :
BNC
Material Shape :
Round Wire
Application :
CCTV Security
Transport Package :
Box Packaging
name :
tv antenna cable
Description

Copper Rg58 Coaxial Jumper Cable / Pigtail Designed for Antennas Coaxial Cable

Application

  • GPS antennas, gsm antennas, marine antennas.
  • Be fixed with SMA, BNC, TNC, N type connectors.
  • Be widely applied to Antennas, CDMA, GMS, DAS and other communication syestems.


Parameter

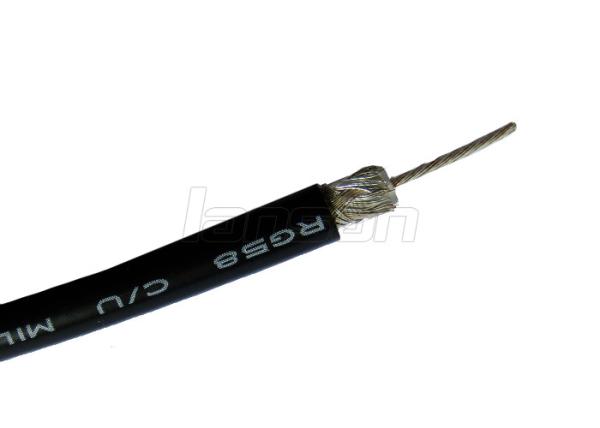

RG58 Coaxial Cable
Construction
Item Material Diameter(mm)
Inner Conductor TC / BC / CCS 1*0.9 / 19*0.18
Dielectric Solid PE 2.95
Shield TC / BC/ CCA Braid(80,96,112,128) 3.45
Jacket PVC 4.95
Electrical Characteristics Attenuation @20ºC (dB/100M)
Impedance(Ω) 50 @100MHz 15.2
Velocity of Propagation(%) 66 @500MHz 42.6
Shielding Effectiveness(dB) ≥85 @900MHz 53.0
VSWR(dB) 1.25 @1000MHz 56.0
Operating Temperature(ºC) -30 to +70 @2000MHz 79.0
----- ----- @2500MHz 95.5

Copper Rg58 Coax Jumper Cables , Pigtail Designed TV Antenna Coaxial Cable

Product tags

pigtail coaxial cable

,

tv antenna coaxial cable

,

tv antenna coaxial cable connection
