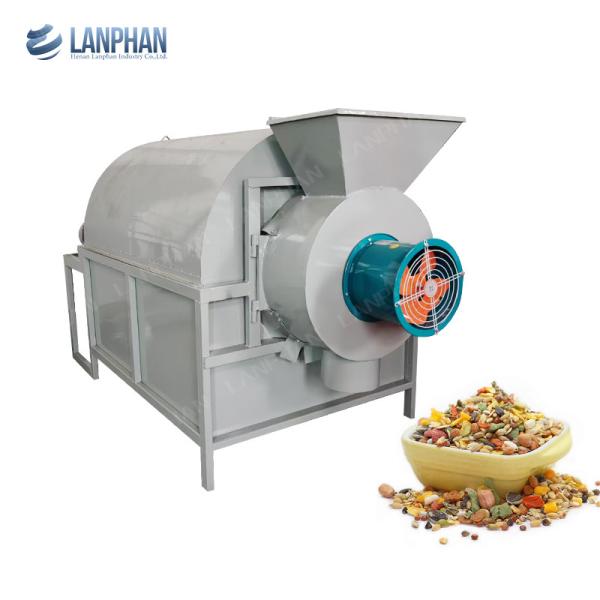

Rotary Drum Dryer Wood Rotary Dryer Sawdust Rotary Drum Drying Equipment Industrial Drum Dryer
Rotary Drum Dryer Wood Rotary Dryer Sawdust Rotary Drum Drying Equipment Industrial Drum Dryer
Rotary Drum Dryer Wood Rotary Dryer Sawdust Rotary Drum Drying Equipment Industrial Drum Dryer
Rotary Drum Dryer Wood Rotary Dryer Sawdust Rotary Drum Drying Equipment Industrial Drum Dryer
Rotary Drum Dryer Wood Rotary Dryer Sawdust Rotary Drum Drying Equipment Industrial Drum Dryer
Rotary Drum Dryer Wood Rotary Dryer Sawdust Rotary Drum Drying Equipment Industrial Drum Dryer
Specifications
Brand Name :
Lanphan
Model Number :
EDD-200
Certification :
contact us
Place of Origin :
China，Henan
MOQ :
1 Unit
Price :
$2799/unit
Payment Terms :
L/C, T/T, Paypal...
Supply Ability :
600 Units per Month
Delivery Time :
5-7 work days
Packaging Details :
wooden box package
Product Type :
Rotary Drum Dryer
Condition :
New
Warranty :
1 Year
Voltage :
380V
Power :
1500W-15000KW
Speed :
6-12rpm
Dimension(l*w*h) :
3000*1200*1850mm
Application :
Food Processing, Chemicals Processing, Plastics Processing
Description

Rotary Drum Dryer Wood Rotary Dryer Sawdust Rotary Drum Drying Equipment Industrial Drum Dryer

Model Overall dimensions
(including fan)		 Capacity (KG) Drum diameter (mm) Drum size (mm) Speed (rpm) Power (KW) Heating power (KW)
EDD-200 2800*1100*1450mm 200 800 800*1800*3 6-12 1.5 30
EDD-300 3600*1100*1450mm 300 800 800*2600*3 6-12 2.2 30-40
EDD-500 4000*1300*1600mm 500 1000 1000*2800*3 5-9 3 40-50
EDD-1000 4600*1500*1700mm 1000 1200 1200*3400*4 4-7 4 60-80
EDD-2000 5800*1800*2000mm 2000 1500 1500*4400*5 3-5 7.5 80-100
EDD-3000 7600*1800*2000mm 3000 1500 1500*6000*5 3-5 11 120-150
EDD-5000 9000*2300*2400mm 5000 1800 1800*6600*8 3-5 15 180-200

Rotary Drum Dryer​ Description
Rotary Drum Dryer Wood Rotary Dryer Sawdust Rotary Drum Drying Equipment Industrial Drum Dryer

Rotary Drum Dryer​ Application

Rotary Drum Dryer Wood Rotary Dryer Sawdust Rotary Drum Drying Equipment Industrial Drum Dryer

Rotary Drum Dryer​ Details

Rotary Drum Dryer Wood Rotary Dryer Sawdust Rotary Drum Drying Equipment Industrial Drum Dryer

Feature
1. It can be widely used in river sand, sludge, coal slime, sawdust, sand, tofu dregs, chicken manure, organic fertilizer, feed, Chinese medicine dregs, wine lees, vinegar lees and other fields of material drying;
2. With hot air as the drying medium and a circulating drying process, the material is heated evenly, dehydrated fully, and has good quality after drying;
3. The heating system of the dryer is relatively advanced, and the converted heat energy dries the material without pollution.
4. It is equipped with automatic online temperature and humidity measurement devices, which greatly improves the degree of automation and has high drying uniformity;
5. It can automatically control the working process, automatically stop the machine, and is simple to operate, greatly reducing labor costs.
6. There are various heating methods, including electric heating, coal heating, gas heating, wood combustion, biomass pellet heating, etc.
