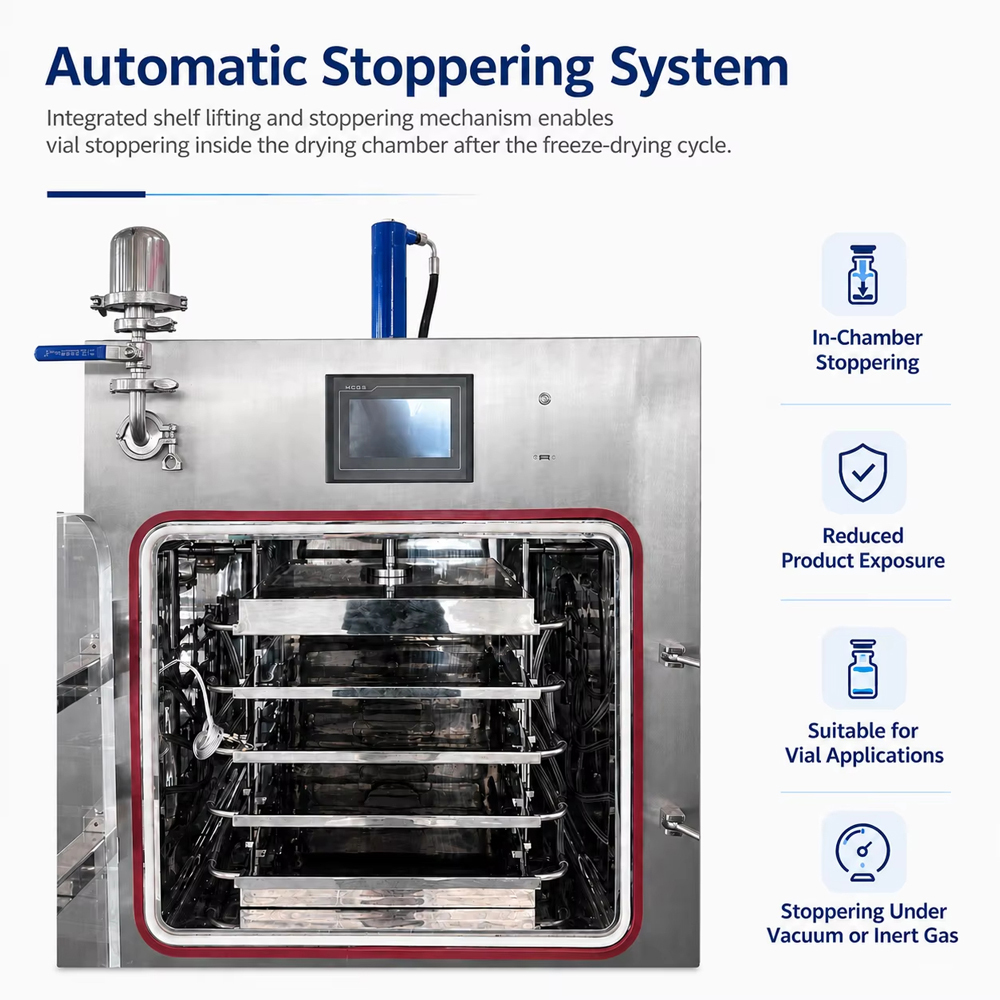

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
Specifications
Model Number :
LGJ-100
Main Material :
SS304
MOQ :
1 unit
Delivery Time :
15 working days
Vacuum degree :
<10 Pa
Payment Terms :
T/T
Condition :
New
Cold trap temperature :
-75℃
Price :
$21300/unit
Capacity :
15kg/batch
Power(w) :
7500W
Supply Ability :
5 units per month
Type :
Pilot Freeze Dryer
Warranty :
One Year
Certification :
contact us
Place of Origin :
Henan, China
Dimension(l*w*h) :
1140x1720x1910mm
Packaging Details :
wooden box package
Weight :
742Kg
Brand Name :
Lanphan
After-sales service provided :
Online support
Description

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

TECHNICAL SPECIFICATIONS

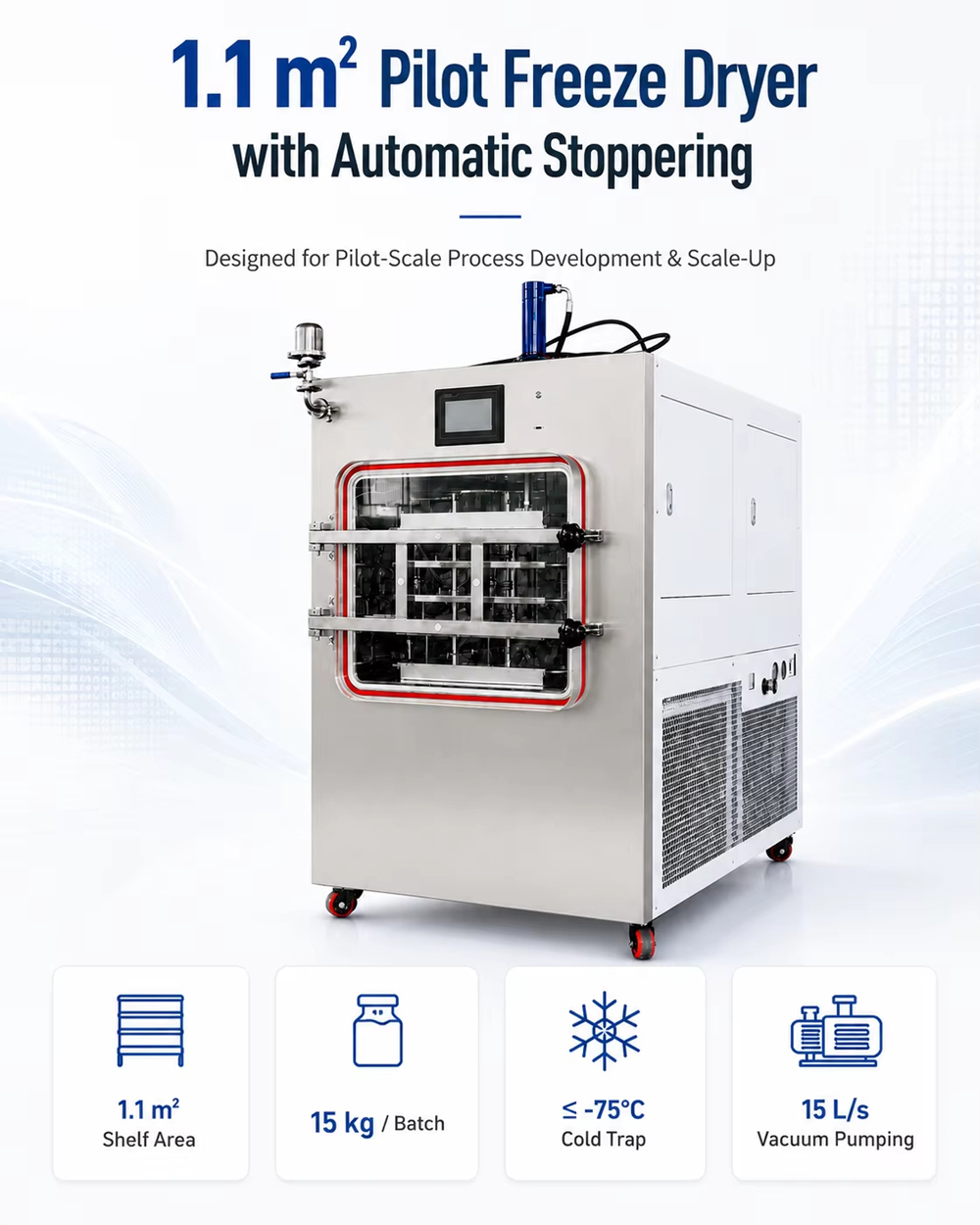

Freeze-Drying Area 1.1 m2

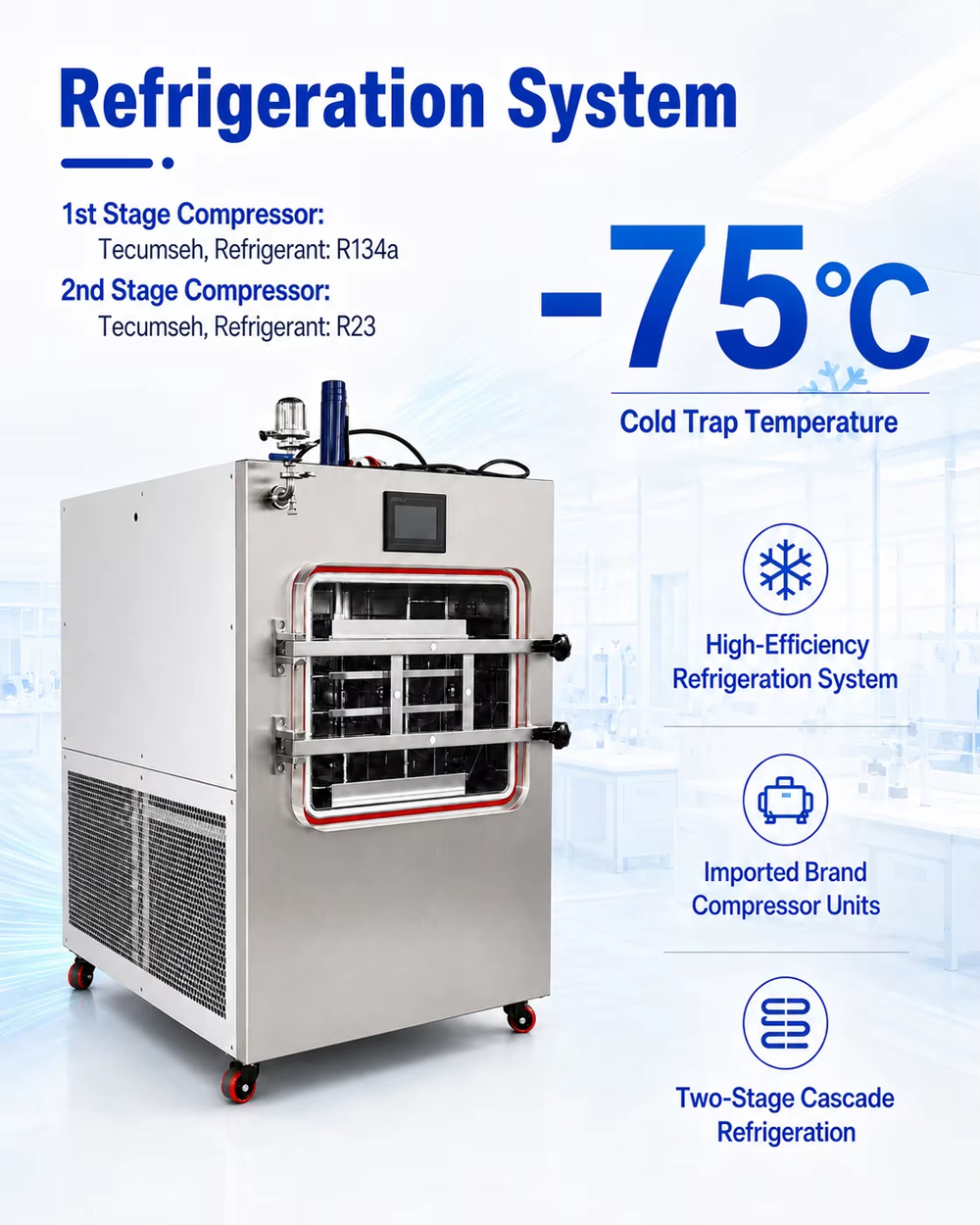

Condenser Temperature(No-load) ≤-75℃
Batch Capacity 15 kg/batch
Ultimate Vacuum (No-load) < 10 Pa

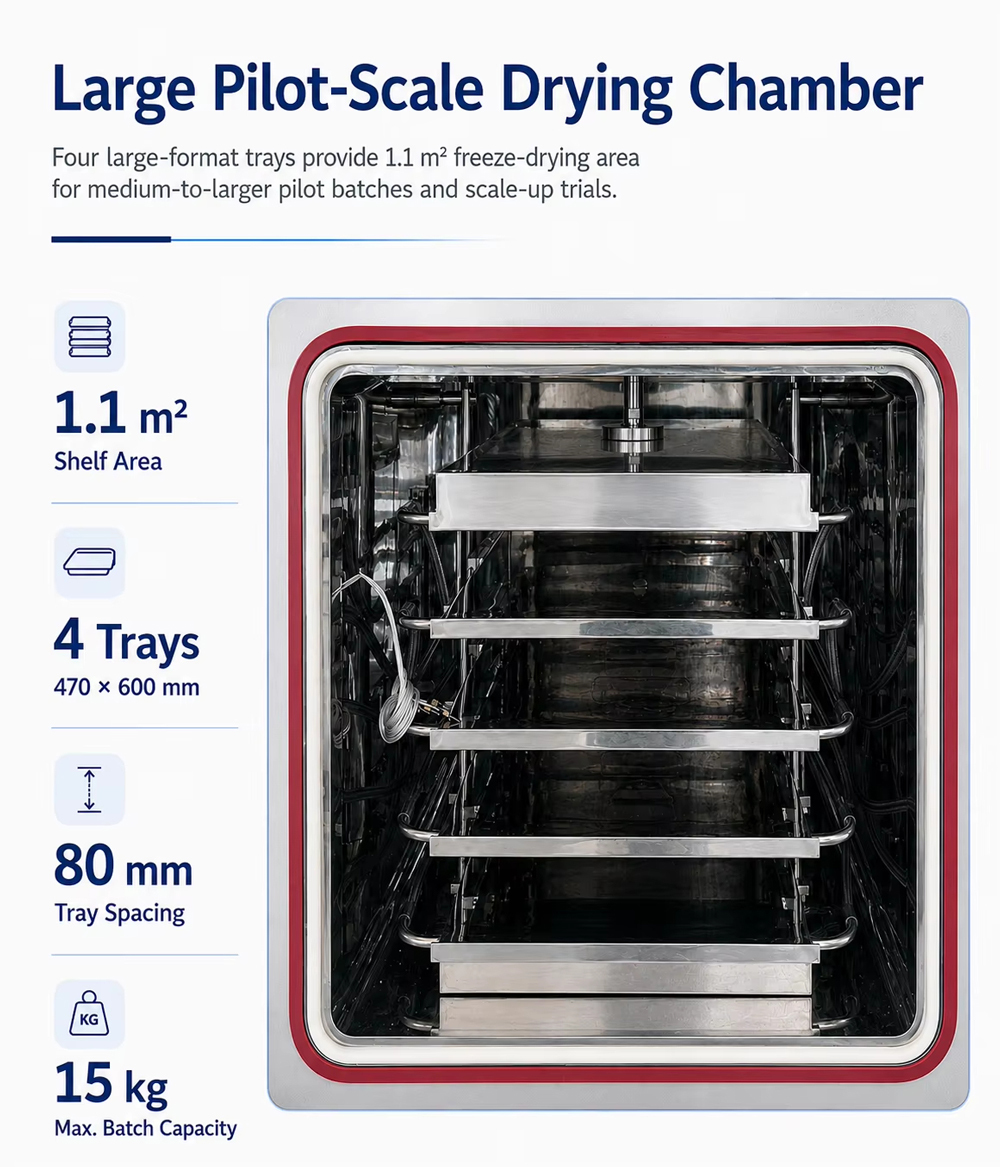

Tray Size 470*600 mm
Number of Trays 4 trays
Tray Spacing 80 mm
Pumping Speed 15 L/s
Ice Capture Capacity > 15 kg
Noise Level <80 dB
Power 7500 W
Main Material 304 Stainless Steel
Power Supply 3-phase 5-wire 380V, optional 220V
Overall Dimensions 1140*1720*1910 mm
Net Weight 742 kg

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

Uniform Temperature Control & Sample Integrity:** Utilizes silicone oil heat-transfer fluid circulation technology; shelf temperature uniformity is maintained within ±0.5°C, eliminating edge effects and ensuring consistent quality across the entire batch.
Smart End-Point Detection:** Features built-in Pressure Rise Test and eutectic point analysis systems to automatically and accurately determine when drying is complete, preventing over-drying and increasing efficiency by 30%.

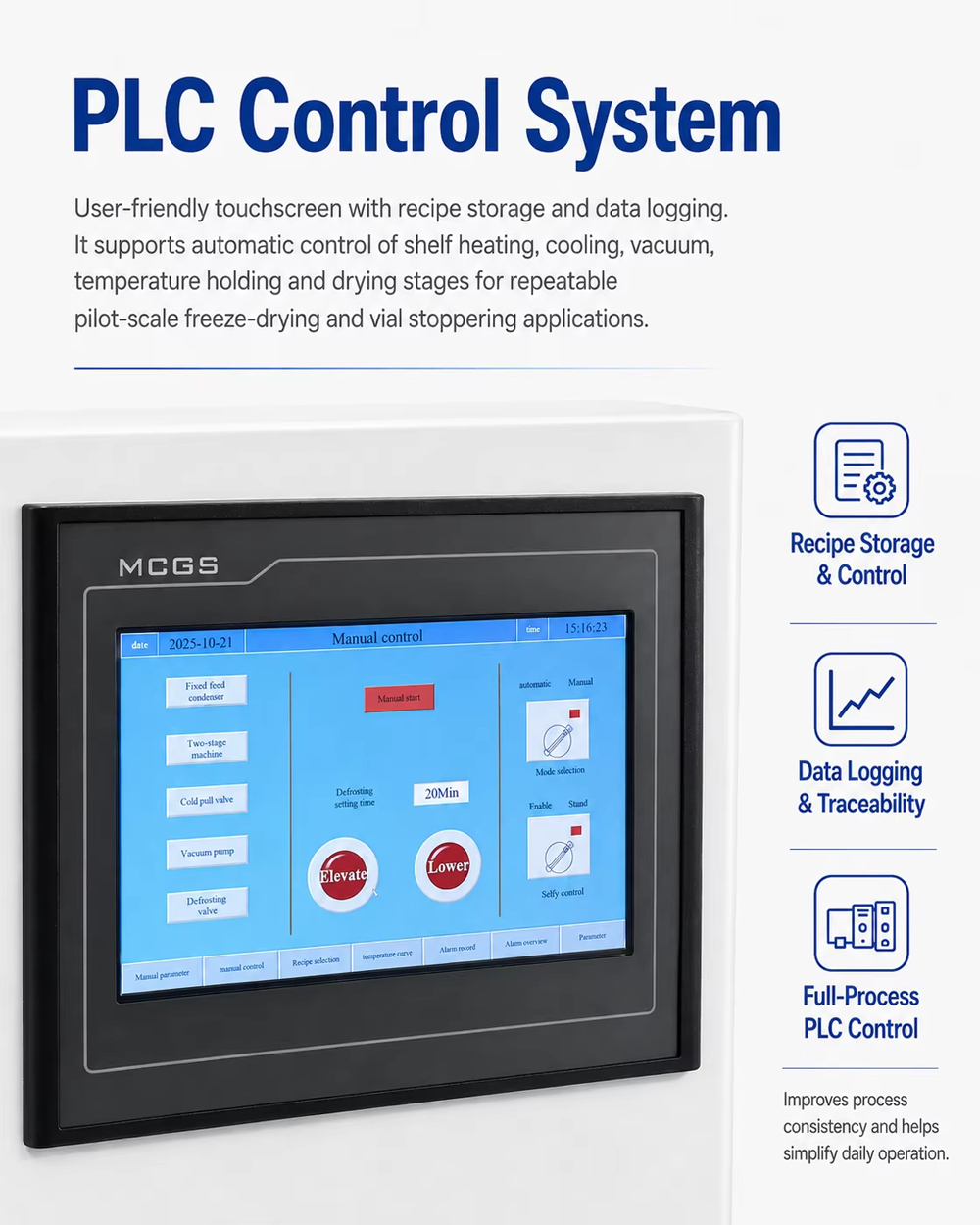

One-Touch Process Recipe Management:** Stores over 100 freeze-drying recipes, with each recipe supporting up to 40 temperature/vacuum program segments; allows seamless switching between automatic and manual modes for simplified operation.
Comprehensive Safety & Alarm Systems:** Includes power-failure protection, over-temperature/over-pressure alarms, vacuum anomaly alerts, and vacuum pump oil backflow prevention to safeguard your valuable samples.

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer


-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
