Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
Specifications
Model Number :
LGJ-100
Main Material :
SS304
MOQ :
1 unit
Delivery Time :
15 working days
Vacuum degree :
<10 Pa
Supply Ability :
5 units per month
Type :
Pilot Freeze Dryer
Payment Terms :
T/T
Condition :
New
Cold trap temperature :
-75℃
Price :
$21300/unit
Capacity :
15kg/batch
Power(w) :
7500W
Certification :
contact us
Weight :
742Kg
Place of Origin :
Henan, China
Dimension(l*w*h) :
1140x1720x1910mm
Packaging Details :
wooden box package
Warranty :
One Year
Brand Name :
Lanphan
After-sales service provided :
Online support
Description

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

TECHNICAL SPECIFICATIONS

Freeze-Drying Area 1.1 m2
Condenser Temperature(No-load) ≤-75℃
Batch Capacity 15 kg/batch
Ultimate Vacuum (No-load) < 10 Pa
Tray Size 470*600 mm
Number of Trays 4 trays
Tray Spacing 80 mm
Pumping Speed 15 L/s
Ice Capture Capacity > 15 kg
Noise Level <80 dB
Power 7500 W
Main Material 304 Stainless Steel
Power Supply 3-phase 5-wire 380V, optional 220V
Overall Dimensions 1140*1720*1910 mm
Net Weight 742 kg

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

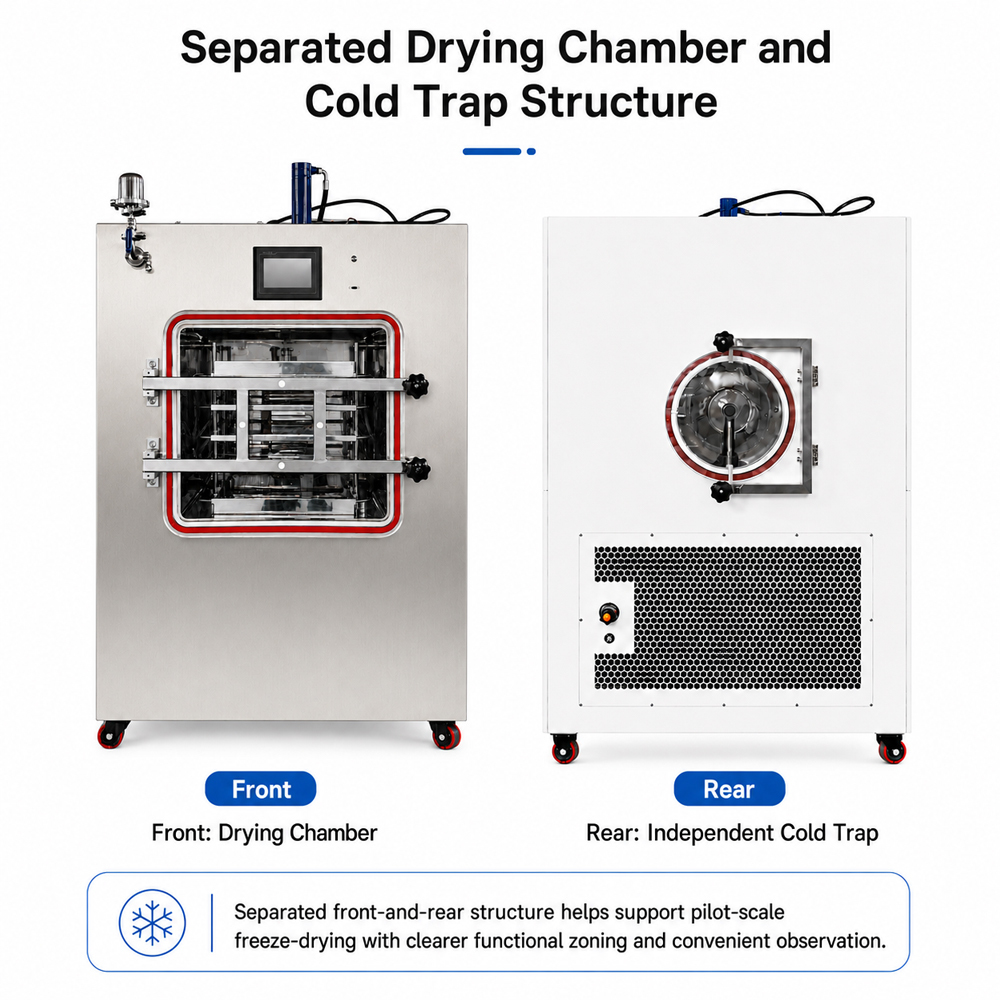

1. Drying Chamber & Cold Trap
Materials: Both the chamber and cold trap are constructed from high-quality 316L stainless steel, offering exceptional corrosion resistance.
2. Intelligent Control & Data Acquisition System
Features an industrial-grade 7- or 10-inch touchscreen paired with PLC.
Real-time Curves: Displays and records real-time data for shelf temperature, product temperature, cold trap temperature, and vacuum levels.
3. Refrigeration & Vacuum Systems
Imported Compressors: Uses eco-friendly refrigerants and offers rapid cooling; the cold trap can reach -50°C in just over ten minutes.
Dual-Gauge Vacuum Measurement: Equipped with capacitance manometers and Pirani gauges to ensure high-precision vacuum measurement and control.

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control


Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
