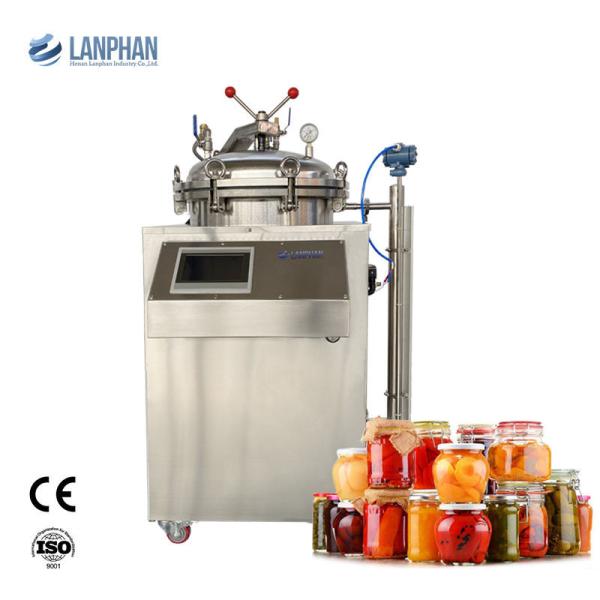

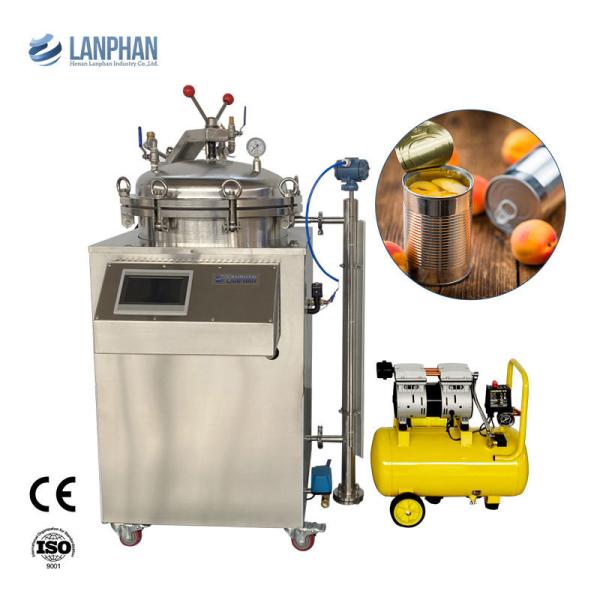

Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
Specifications
Capacity :
100L 150L
Working Pressure :
0.15-0.2Mpa
Voltage :
220V
Brand Name :
Lanphan
Model Number :
100L 150L
Certification :
CE ISO
Place of Origin :
Henan, China
MOQ :
1 unit
Price :
$2300
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram
Supply Ability :
50 units per month
Delivery Time :
7-10 working days
Packaging Details :
packed in wooden box
Application :
Mushroom Growing, Cannned Food, clinical experiments, Mushroom Substrate...
Sterilization method :
Steam & Water bath
Processing capacity :
25kg 40kg/ batch
Working Temperature :
80-125℃
Product Name :
Autoclave Sterilizer
Description
Pouch Canned Food Beverage Retort Autoclave Steam Sterilizer Machine Fully Automatic
Working Principle

The retort sterilizer operates through a systematic process to ensure complete sterilization of packaged products:

  1. Loading of Products: Products are loaded into the processing chamber
  2. Sealing of the Chamber: The chamber is sealed to prevent steam and pressure escape
  3. Heating: Temperature is raised by injecting steam or high-temperature medium
  4. Pressurization: Pressure is increased to create necessary sterilization conditions
  5. Sterilization and Holding Time: Products are held at 121°C-135°C and 0.7-1.2 MPa for specified duration
  6. Depressurization: Internal pressure is gradually reduced to normal levels
  7. Removal of Products: Sterilized products are removed, now resistant to microbial contamination
Technical Specifications
Model S75 S100 WB75E WB100E WB150E
Sterilization Method Steam Steam Steam & Water Bath Steam & Water Bath Steam & Water Bath
Chamber Volume 75L 100L 75L 100L 150L
Processing Capacity 25kg/batch 40kg/batch 25kg/batch 40kg/batch 65kg/batch
Basket Size Ø370×540 (one) Ø370×360 (two) Ø370×540 (one) Ø370×360 (two) Ø470×360 (two)
Inner Barrel Size Ø400×600mm Ø400×800mm Ø400×600mm Ø400×800mm Ø500×800mm
Working Temperature 80-125℃
Working Pressure 0.15-0.2 MPa
Rated Power 4.5KW 4.5KW 6KW 12KW 15KW
Voltage 220V 220V 220V 380V 380V
Overall Dimension 720×890×1100 720×900×1330 665×890×1100 665×890×1520 765×990×1560
Key Features
  • High-Temperature and High-Pressure Treatment: Operates at 121°C to 135°C and 0.7 to 1.2 MPa to eliminate microorganisms, bacteria, spores, and yeast
  • Sealed Packaging Compatibility: Processes food in sealed containers like cans or plastic pouches to prevent recontamination
  • Precise Sterilization Time: Customizable processing duration based on food type and packaging requirements
  • Versatile Application: Suitable for various foods including vegetables, fruits, meats, fish, soups, jams, and sauces
Product Images
Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization Fully Automatic Retort Sterilizer with 100L 150L Capacity and Steam & Water Bath Sterilization
