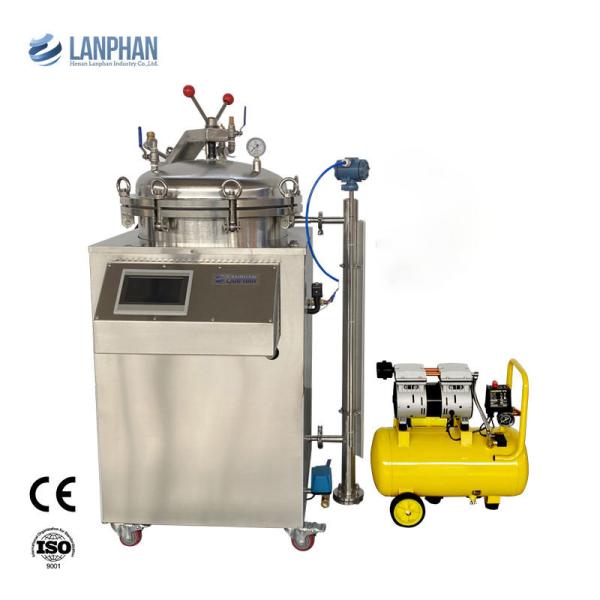

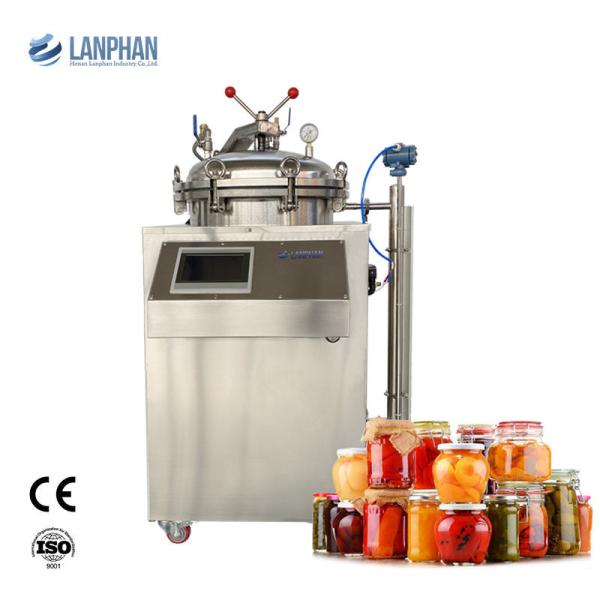

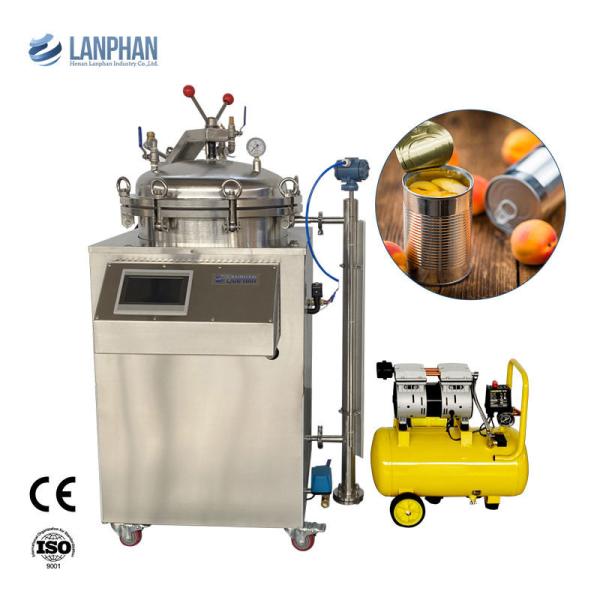

Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
Specifications
Capacity :
75L 100L
Working Pressure :
0.15-0.2Mpa
Voltage :
220V
Brand Name :
Lanphan
Model Number :
S75 S100 WB75E WB100E WB150E
Certification :
CE ISO
Place of Origin :
Henan, China
MOQ :
1 unit
Price :
$2300
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram
Supply Ability :
50 units per month
Delivery Time :
7-10 working days
Packaging Details :
packed in wooden box
Application :
Mushroom Growing, Cannned Food, clinical experiments, Mushroom Substrate...
Sterilization method :
Steam & Water bath
Processing capacity :
25kg 40kg/ batch
Working Temperature :
80-125℃
Product Name :
Autoclave Sterilizer
Description
Industrial Vertical Autoclave 100 Litres Water Spray Retort Equipment For Bottle
Retort Sterilizer Specifications
Model S75 S100 WB75E WB100E WB150E
Sterilization method Steam Steam Steam & Water bath Steam & Water bath Steam & Water bath
Chamber Volume 75L 100L 75L 100L 150L
Processing capacity 25kg/batch 40kg/batch 25kg/batch 40kg/batch 65kg/batch
Basket size Ø370*540(one) Ø370*360(two) Ø370*540(one) Ø370*360(two) Ø470*360(two)
Inner barrel size Ø400*600(mm) Ø400*800(mm) Ø400*600(mm) Ø400*800(mm) Ø500*800(mm)
Working Temperature 80-125℃
Working Pressure 0.15-0.2Mpa
Rated Power 4.5KW 4.5KW 6KW 12KW 15KW
Voltage 220V 220V 220V 380V 380V
Overall dimension 720*890*1100 720*900*1330 665*890*1100 665*890*1520 765*990*1560
Key Features
  • High-Temperature and High-Pressure Treatment: Creates an environment of 121°C to 135°C and 0.7 to 1.2 MPa pressure to eliminate microorganisms, bacteria, spores, and yeast, ensuring long-term preservation and sterility.
  • Sealed Packaging: Food is placed in sealed containers (cans or plastic pouches) to prevent recontamination and maintain freshness.
  • Precise Sterilization Time: Processes food at high temperature and pressure for specific durations based on food type and packaging requirements.
  • Versatile Application: Suitable for various food types including vegetables, fruits, meats, fish, soups, jams, sauces, and more.

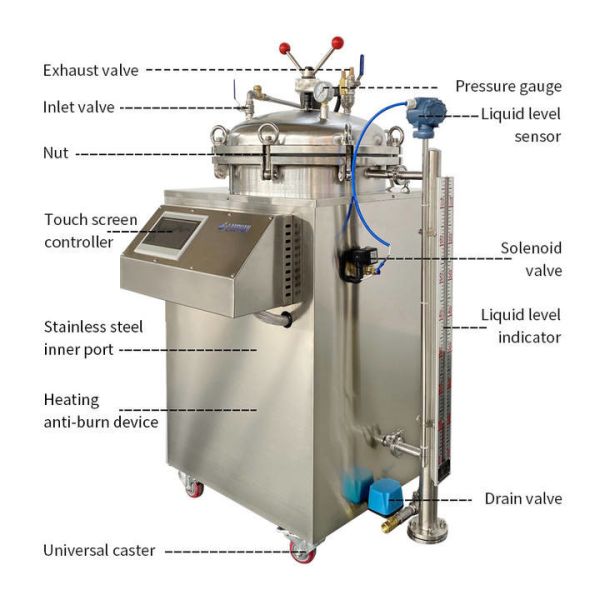

Working Principle
Operational Process
  1. Loading of Products: Products (canned foods, packaged foods in bags or bottles) are loaded into the processing chamber.
  2. Sealing of the Chamber: The chamber is securely sealed to prevent steam and pressure escape under high-temperature conditions.
  3. Heating: The sterilizer heats up by injecting steam or high-temperature medium to raise internal temperature.
  4. Pressurization: Pressure is increased by injecting steam or medium to create necessary sterilization conditions.
  5. Sterilization and Holding Time: Products are held at 121°C to 135°C and 0.7 to 1.2 MPa pressure for specified duration to eliminate microorganisms.
  6. Depressurization: Internal pressure is gradually reduced to normal levels after sterilization.
  7. Removal of Products: Chamber is opened and sterilized products are removed, now sterile and protected from microbial contamination.

This high-temperature and high-pressure treatment effectively eliminates microorganisms within products, extending shelf life while maintaining quality and taste. Widely used in food industry, healthcare, and various other sectors.

Product Images
Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization Industrial 100L Capacity Autoclave Sterilizer with Steam & Water Bath for High Pressure Sterilization
