3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min
3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min
3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min
3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min
3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min
3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min
3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min
3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min
Specifications
Brand Name :
Lanphan
Model Number :
LPSD-3Pro
Place of Origin :
China
MOQ :
1 unit
Price :
$5,200.00 - $6,500.00/unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
600 Units/Month
Delivery Time :
3-7 work days
Packaging Details :
wooden carton package
Product name :
Centrifugal Spray Dryer
Type :
Milk PowderCentrifugal Spray Dryer
After-sales service provided :
Online support
Condition :
New
Warranty :
12 months
Material :
Stainless Steel
Weight :
150kg
Dimension(l*w*h) :
1100mm*900mm*1600mm
Application :
Food Processing
Description

3L Stainless Steel 36000r/min Milk Powder Centrifugal Spray Dryer industrial

Centrifugal Spray Dryer

Product name 3L Milk Powder Centrifugal Spray Dryer
Air inlet temperature control 30~300℃
Air outlet temperature control 30~140℃
Evaporated water 1500ml/h~3000ml/h
The largest feed rate 3000ml/h(adjustable)
Feeding way Peristaltic pump adjustment
Nozzle speed 36000r/min(adjustable)
Nozzle diameter 1.00mm/0.04inch(optional)
Dryer time 1.0 ~ 1.5 S
Total power 7KW /220V
Draught fan 0.75KW 140m3/h
Electric Heater Power 6KW
Package dimension (L*W*H) 1100*900*1600(mm) / 43.31*35.43*62.99(inch)
Package Weight 150KG/330.69lbs

Working principle:

After the air passes through the filter and heating device, it enters the hot air distributor at the top of the drying chamber. The hot air passing through the hot air distributor enters the drying chamber evenly and rotates in a spiral shape. At the same time, the feed liquid is sent to the centrifugal spray head at the top of the drying chamber. The feed liquid is sprayed with effective mist droplets, which greatly increases the surface area of the feed liquid in contact with the hot air, quickly evaporates the moisture, and dry the finished product in a very short time. The finished product is collected by the collection cylinder at the bottom of the dryer, and the exhaust gas is discharged by a centrifugal fan.

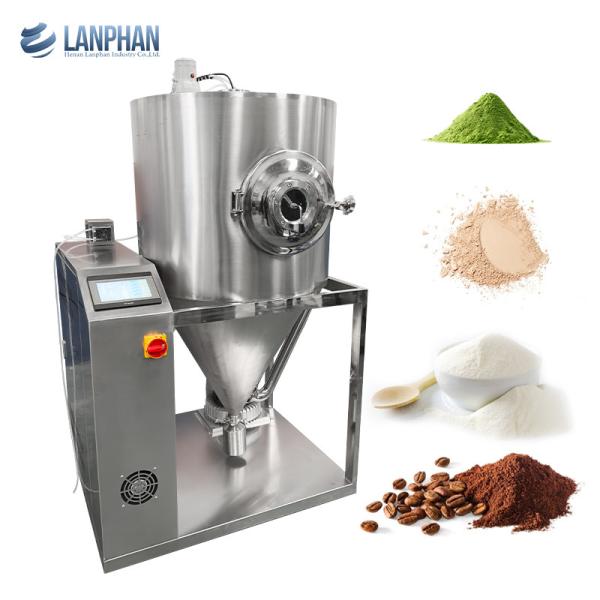

Centrifugal Spray Dryer Description

3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min

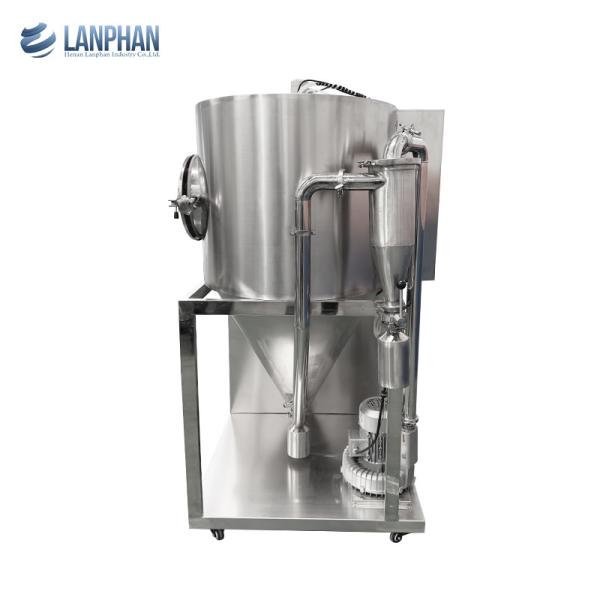

Centrifugal Spray Dryer Structure

3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min

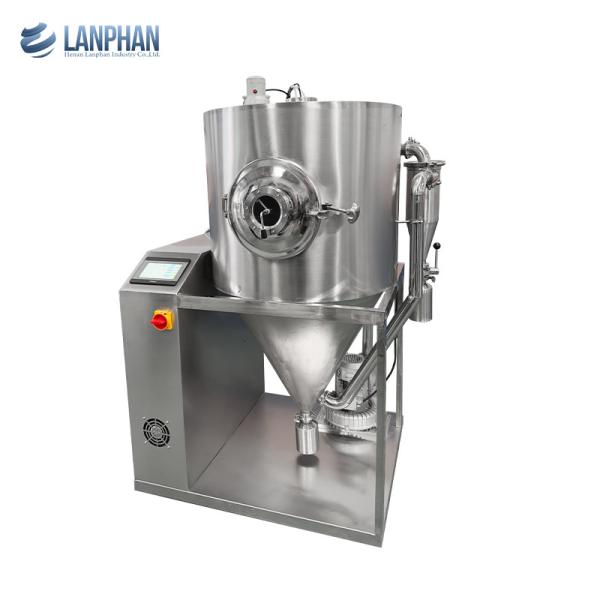

Centrifugal Spray Dryer Details

3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min

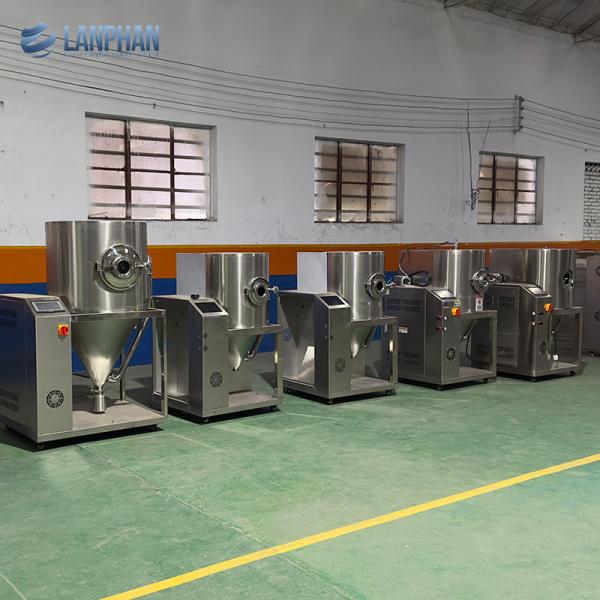

Centrifugal Spray Dryer Factory

3L Stainless Steel Milk Powder Centrifugal Spray Dryer 36000r/Min
