Specifications
Brand Name :
Lanphan
Model Number :
LS-HD
Certification :
CE ISO
Place of Origin :
Henan, China
MOQ :
1 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets per Month
Delivery Time :
10-15 days
Packaging Details :
Wooden Box or Customized Packing
Product Name :
Autoclave
Voltage :
220V/50Hz
working pressure :
0.22MPa
Max working pressure :
0.23 Mpa
Adjustment of temperature :
105~134℃
Heat average :
≤1℃
Description

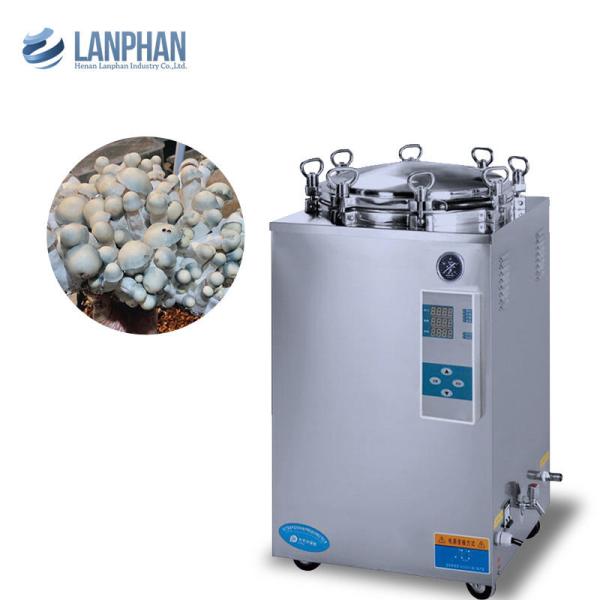

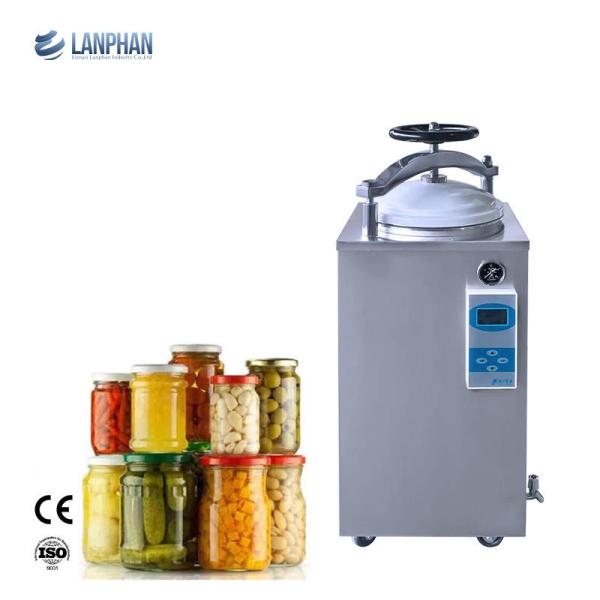

Hospital Digital Display 75L 100L 150L Steam Vertical Autoclave

Vertical Autoclave Parameter

Model technical data LS-35HD(automatic) LS-50HD(automatic) LS-75HD(automatic) LS-100HD(automatic)
Chamber volume 35L(φ318×450)mm 50L(φ340×550) mm 75L(φ400×600) mm 100L(φ440×650) mm
working pressure 0.22MPa
Working temperature 134℃
Max working pressure 0.23 Mpa
Heat average ≤1℃
Timer 0~99min or 0~99hour59min
Adjustment of temperature 105~134℃
Power 2.5Kw/AC220V.50Hz 3Kw/AC220V.50Hz 4.5Kw/AC220V.50Hz
Overall dimension 470×450×1020(mm) 520×500×1150(mm) 550×530×1180 (mm) 580×560×1290 (mm)
Transport dimension 540×540×1140(mm) 580×580×1250(mm) 610×610×1280(mm) 640×640×1360(mm)
G.W/N.W 81Kg/63Kg 94Kg/ 74Kg 113Kg/ 93Kg 125Kg/ 105Kg


Vertical High Pressure Sterilizer Description

A vertical high-pressure sterilizer is a device used for sterilization and disinfection, widely applied in medical, laboratory, and industrial settings. It utilizes high-pressure steam to eliminate bacteria, viruses, and other microorganisms, ensuring thorough aseptic treatment of items and equipment.

A typical vertical high-pressure sterilizer consists of a sealed chamber, heating elements, and a control system. Its basic working principle involves heating water to generate high-pressure steam, placing the items inside the chamber, sealing the chamber, and heating the steam through the heating elements to reach the desired sterilization temperature. High-pressure steam rapidly transfers heat and penetrates the surfaces and pores of the items, achieving the microbial killing effect. The control system monitors and adjusts parameters such as steam pressure, temperature, and sterilization time to ensure the safety and effectiveness of the sterilization process.

Vertical high-pressure sterilizers offer several advantages, including:

1. Efficient sterilization: High-pressure steam can rapidly kill microorganisms, including heat-resistant bacteria and spores.
2. Versatility: Suitable for various types of items and equipment, such as instruments, glassware, and culture media.
3. Thorough asepsis: Achieves a high level of sterilization within a short period, ensuring complete aseptic treatment of items.
4. Convenience and ease of use: The equipment is relatively simple to operate, equipped with safety control systems to prevent injuries from steam and high temperatures.

It is important to follow proper operating procedures and safety regulations when using a vertical high-pressure sterilizer to ensure the safety of operators and the environment while achieving the desired sterilization effectiveness.

Hospital Steam Vertical Autoclave Digital Display 75L 100L 150L High PressureHospital Steam Vertical Autoclave Digital Display 75L 100L 150L High PressureHospital Steam Vertical Autoclave Digital Display 75L 100L 150L High Pressure
