High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory
High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory
High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory
High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory
Specifications
Luminous Intensity :
23/ 38/ 9 LM
Warranty :
3 Years
Power Dissipation :
200mW
Forward Voltage :
1.8-2.4/2.8-3.4 /2.8-3.4v
Operating Temperature :
-40℃~85℃
Forward Current :
150mA
Reverse Voltage :
5V
Size :
3.2*3.0*0.6mm
Lifetime :
50000h
Application :
Indoor & Outdoor Lighting
Chip brand :
San'an chip / Epistar chip
Brand Name :
BOSMFC
Model Number :
3535 RGB SMD LED
Certification :
Rohs, Reach
Place of Origin :
China
MOQ :
10000pcs
Payment Terms :
T/T,Western Union,paypal
Supply Ability :
500KK/month
Delivery Time :
5-15 days
Packaging Details :
Reel+Anti-static bag+carton
Storage Temperature :
-40℃~100℃
Color :
RGB light
Wavelength :
620-635 / 515-525 / 460-473 nm
Description

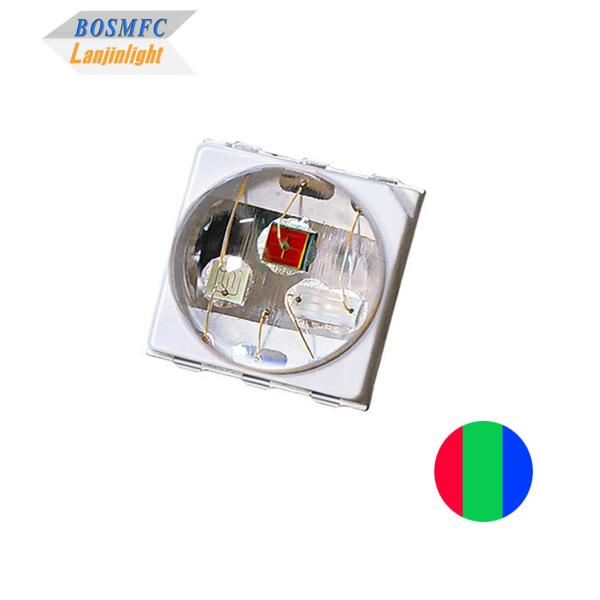

High Power 1.5W 3535 RGB LED Lamp
Full color spectrum LED solution from a 20-year professional LED manufacturer
Product Features
  • Premium chip materials from well-known brands
  • Energy-saving and environmentally friendly design
  • Extended operational lifespan
  • Advanced heat dissipation technology
  • Minimal light attenuation over time
  • Simple installation process
  • Enhanced anti-static protection
Technical Specifications
3030 Top SMD LED Electrical Optical Characteristics (Ta=25°C)
Parameter Symbol Color Min Typ Max Unit Test Condition
Wavelength λd Red 620 --- 635 nm





IF=150mA
Green 515 --- 525
Blue 460 --- 470
Luminous Intensity Iv Red
23
LM
Green
38
Blue
9
Forward Voltage VF Red 1.8 --- 2.4 V
Green 2.8 --- 3.4
Blue 2.8 --- 3.4
Viewing Angle

--- 120 --- deg
Reverse Current IR

--- 5 uA
Operation Temperature: -40~+85℃
Size: 3.7×3.5×1.85mm
Storage Temperature: -40~+100℃
Packing: 1000pcs/reel
High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory
Application Areas
  • Automotive lighting systems
  • Bicycle tail lights
  • Medical equipment lighting
  • Phototherapy devices
  • Germicidal lighting solutions
  • Plant growth and aquarium lighting
  • Photography lighting equipment
  • Projection system lighting

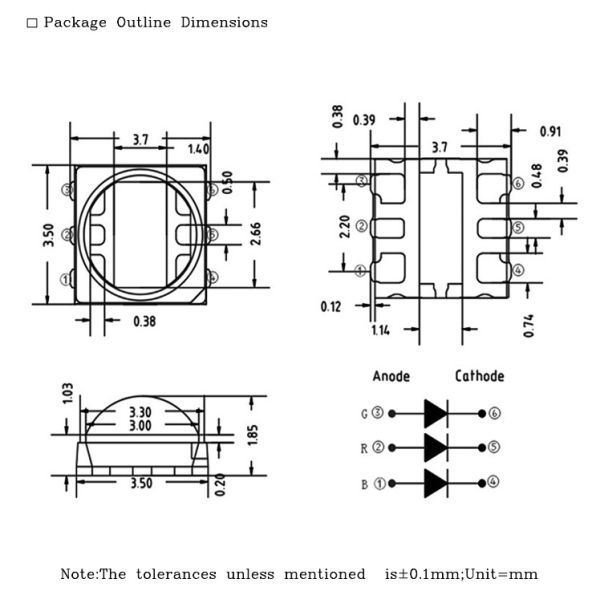

Material Composition
High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory
Company Information

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory
Packaging & Shipping
Inner Packaging: Anti-static Bag Vacuum Packaging
Outer Packaging: Standard export carton packing
High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory
Frequently Asked Questions
Q1: Are you a factory?
A1: Yes, we are a professional LED manufacturer in Dongguan city with 18 years of experience, specializing in SMD LEDs, through-hole LEDs, and LED displays.
Q2: Could you please send me samples to confirm the quality?
A2: Of course, we can provide free samples for our clients to confirm product quality.
Q3: How can I get a quotation from you?
A3: Please provide details about your requirements including product parameters, application, contact information, and quantity. Our professional team will reply within one hour.
Q4: How do you handle shipping?
A4: (1) For small and lightweight packages, we typically use DHL, UPS, TNT or other express services. (2) For larger shipments, we use air or sea freight. (3) We can also accommodate customer-specified shipping methods.
Q5: How do I place an order?
A5: You can check shipping costs and discount information online and place orders , or contact us for order details - we respond within 30 minutes.
Q6: What payment terms are available?
A6: We accept T/T, PayPal, Western Union, and Secure Payment.
Q7: What is the lead time?
A7: Lead time depends on order quantity. Typically, production takes 10-15 working days. Standard samples can be delivered within 3 days.
