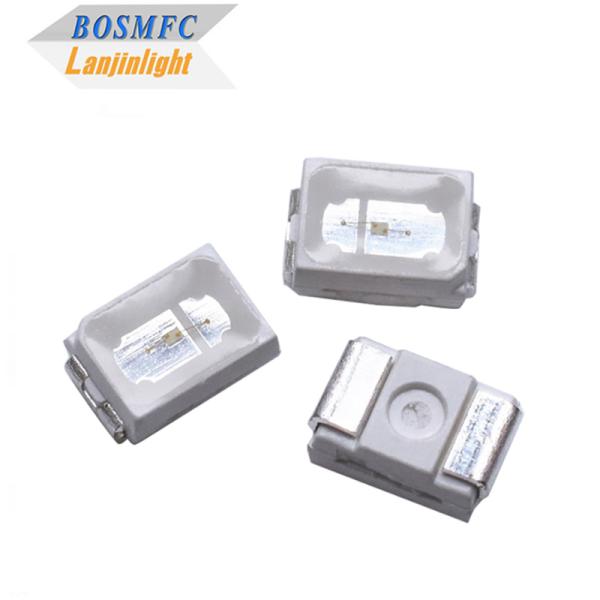

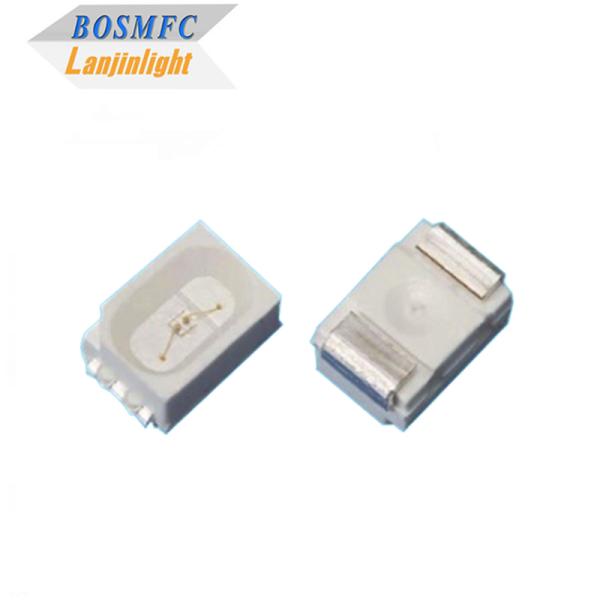

3020 UV LED 365nm Diode SMD LED Chip for UV printing machine
3020 UV LED 365nm Diode SMD LED Chip for UV printing machine
3020 UV LED 365nm Diode SMD LED Chip for UV printing machine
3020 UV LED 365nm Diode SMD LED Chip for UV printing machine
3020 UV LED 365nm Diode SMD LED Chip for UV printing machine
3020 UV LED 365nm Diode SMD LED Chip for UV printing machine
Specifications
Brand Name :
BOSMFC
Model Number :
3020 UV SMD LED
Certification :
Rohs, Reach
Place of Origin :
China
MOQ :
10,000pcs
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
500KK/month
Delivery Time :
5-15 days
Packaging Details :
4000pcs/reel, Reel+Anti-static bag+carton
Application :
UV printing machine
Color :
UVA Light
Wavelength :
365~375nm
Forward Current :
5mA
Forward Voltage :
3.0-3.6v
Size :
3.0*2.0*0.8mm
Warranty :
2 Years
Chip brand :
San'an chip / Epistar chip
Package :
4000pcs/reel
Lifetime :
50,000h
Operating Temperature :
-40℃~85℃
Storage Temperature :
-40℃~100℃
Description

3020 UV LED 365nm Diode SMD LED Chip for UV printing machine

Features:

  1. Pure gold wires bonding
  2. Long life span 50,000 hours
  3. Pb free and radiationless
  4. Low-temp & lead free reflow soldering
  5. Efficient heat dissipation
  6. Energy-saving and environmentally friendly

Technical Parameters:

Electrical optical characteristics :(Ta=25°C)

Parameter Symbol Color Min Typ Max Unit Test Condition
Dominant Wavelength λd UV 365 --- 375 nm IF=20mA
Power dissipation Pt UV --- 315 --- mW IF=20mA
Forward voltage VF UV 3.0 --- 3.6 V IF=20mA
Viewing angle --- 120 --- deg IF=20mA
Reverse current IR --- ---- 5 uA IF=20mA
Operation Temperature －40~+85℃ Size 3.0*2.0*0.8mm
Storage Temperature －40~+100℃ Packing 4000pcs/bag

3020 UV LED 365nm Diode SMD LED Chip for UV printing machine3020 UV LED 365nm Diode SMD LED Chip for UV printing machine

Applications:

  1. Flashlight • Curing
  2. Printing
  3. Coating
  4. Adhesive
  5. LED flashlight
  6. Bio-analysis/authenticity
  7. Crime inspection
  8. Oil leak detection
  9. Fluorescence photography
  10. Counterfeit detection/security

Materials:

3020 UV LED 365nm Diode SMD LED Chip for UV printing machine

Company information:

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

3020 UV LED 365nm Diode SMD LED Chip for UV printing machine

Packing and Shipping:

Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing.

3020 UV LED 365nm Diode SMD LED Chip for UV printing machine

3020 UV LED 365nm Diode SMD LED Chip for UV printing machine

FAQ:

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .free samples will be available.We can
also make samples according to your requirements.

Q2: What’s the delivery time?

A: It usually takes about 5-7 days to produce an order. But the exact delivery time might be different for different orders or at
different time.

Q3:What's your warranty terms?

A: The warranty for all our Led products is 2 years.

Q4: How does your factory do regarding quality control?

A: Quality is priority.We always believe Quality is our marketing and attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for
shipment.
