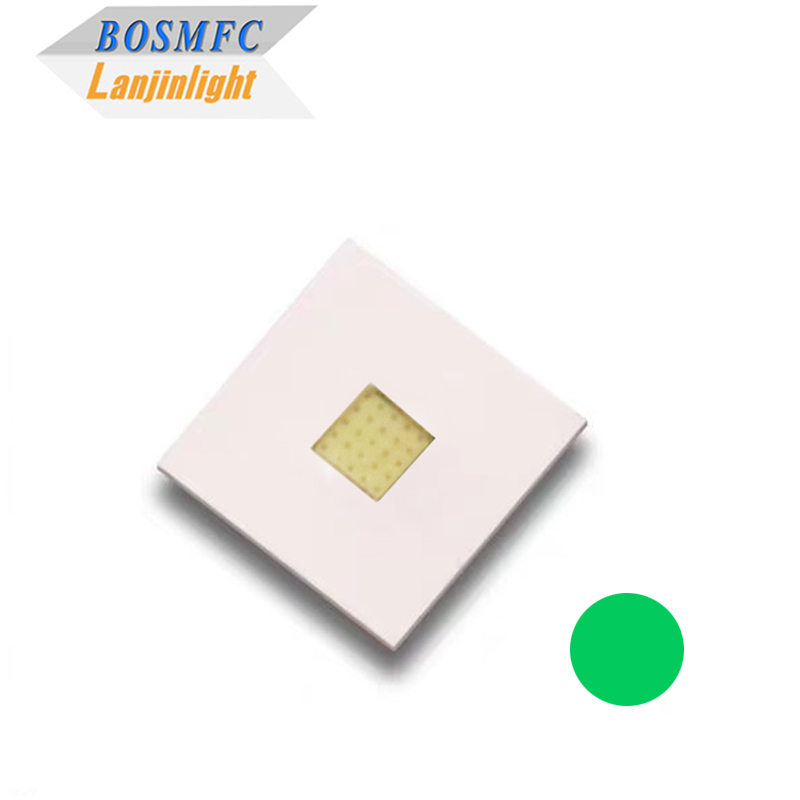

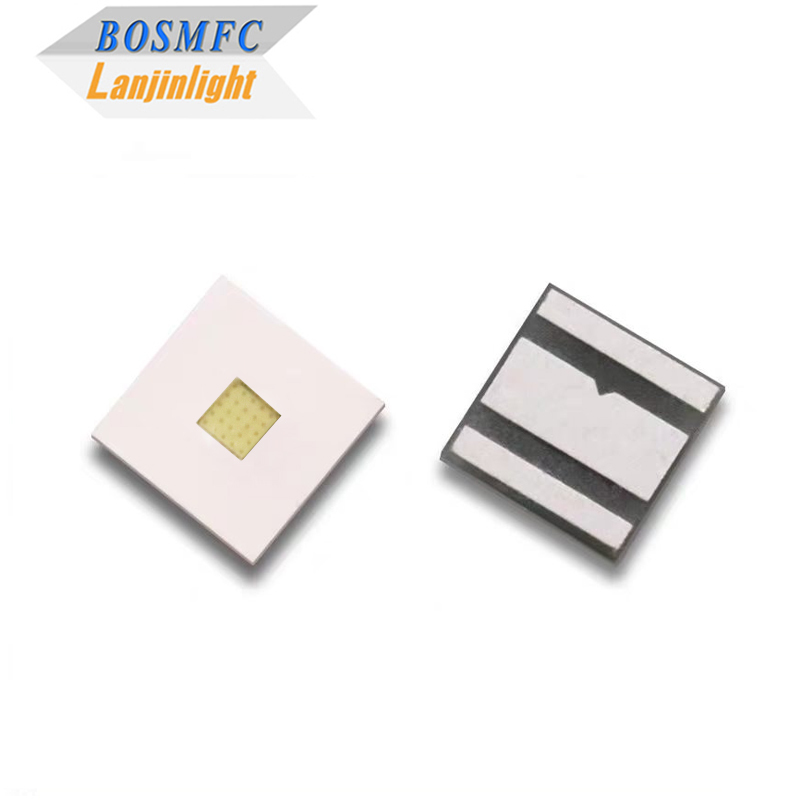

5W Green Light High Power 3535 SMD LED for Automated Optical Inspection
5W Green Light High Power 3535 SMD LED for Automated Optical Inspection
5W Green Light High Power 3535 SMD LED for Automated Optical Inspection
5W Green Light High Power 3535 SMD LED for Automated Optical Inspection
Specifications
MOQ :
1000pcs
Packaging Details :
1000pcs/reel, Reel+Anti-static bag+carton
Viewing Angle :
120°
Warranty :
3 Years
Model Number :
5w 5050 high power LED
Emitting color :
green light
Delivery Time :
5-15 days
Lifespan :
50,000 Hours
Brand Name :
BOSMFC
Power :
5W
Supply Ability :
500KK/month
Storage Temperature(℃) :
-40 - +100
Payment Terms :
T/T,Western Union,paypal
Operating Temperature(℃) :
-40 - +85
Certification :
Rohs, Reach
Forward Current :
700-1000mA
Place of Origin :
China
Forward Voltage :
2.8-3.4v
Package :
1000pcs/reel
Description
5W Green Light High Power LED 3535 SMD for Automated Optical Inspection
Product Overview

This 5W green high-power LED in 3535 SMD package is specifically designed for Automated Optical Inspection systems. With its 525nm wavelength, it provides excellent contrast for detecting soldering defects. The compact size enables dense array configurations for uniform illumination, while high brightness and reliability ensure fast, accurate inspection, reducing false calls and improving throughput in production lines.

Key Features
  • High flux per LED
  • High reliability and long lifespan
  • Low voltage DC operation
  • RoHS & REACH certification
Technical Parameters
Electrical optical characteristics (Ta=25°C):
Color Size (mm) Wavelength (nm) Luminous Intensity (LM) Forward Voltage (V) Forward Current (mA) Viewing Angle
Red 3.5*3.5*0.7 620-635 130-180 1.8-2.4 700 120°
Green 3.5*3.5*0.7 515-525 300-400 2.8-3.6 700 120°
Blue 3.5*3.5*0.7 460-473 60-100 2.8-3.6 700 120°
Yellow 3.5*3.5*0.7 584-596 120-180 1.8-2.4 700 120°
Orange 3.5*3.5*0.7 600-612 80-130 1.8-2.4 700 120°
White 3.5*3.5*0.7 2,800K-12,000K 400-600 2.8-3.6 700 120°
5W Green Light High Power 3535 SMD LED for Automated Optical Inspection
Applications
  • Semiconductor front-end: Wafer surface defect inspection (scratches, particles, cracks), photoresist uniformity check
  • Packaging processes: Die-bond positioning accuracy, wire-bond arc height and solder joint AOI
  • PCB/substrate assembly: Solder wetting inspection, gold/aluminum wire bonding integrity
  • Precision industrial vision: Metal part dimension measurement, scratch and contamination detection
  • Specialty lighting: Industrial macro-photography fill-light, laboratory microscopy, and integration into linear/ring light modules for production lines
Materials
5W Green Light High Power 3535 SMD LED for Automated Optical Inspection
Company Information

Dongguan Lanjin Optoelectronics Co., Ltd., established in 2005, is a professional manufacturer specializing in light emitting diodes, LED digital displays, SMD LEDs, through-hole LEDs, and LED PCB assembly services. Operating from a 2,500 square meter factory with modern purification, constant temperature, and humidity anti-static production workshops.

Our company has passed ISO9001:2015 international Quality Management System certification and is currently applying for ISO14001 Environmental Management System certification. With 18 years of development, we have achieved 2 national invention patents, 12 practical new-type patents, and 2 software invention patents. All products comply with EU RoHS standards.

Lanjin has absorbed advanced manufacturing technology from Japan, Korea, and Western Europe. With high starting point and quality market positioning, we have developed high-temperature resistance and long-life LEDs widely used in communication equipment, switching power supplies, decorative lighting, multi-speakers, DVD players, and other electronics.

Lanjin is committed to the principle of "Quality and customer first," providing customized services according to customer demands. LED lights the world, Lanjin lights your life!

5W Green Light High Power 3535 SMD LED for Automated Optical Inspection
Packing and Shipping

Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing

5W Green Light High Power 3535 SMD LED for Automated Optical Inspection 5W Green Light High Power 3535 SMD LED for Automated Optical Inspection
Frequently Asked Questions
Q1: Are you a manufacturer?
A1: Yes, we are an ISO-certified LED factory based in Dongguan, China, with over 20 years of experience since 2005.
Q2: How can I request a quote?
A2: Simply send us your LED requirements via message or email, and our sales team will respond with a detailed quotation promptly.
Q3: Can I get samples for evaluation?
A3: Yes, we offer free samples according to your specifications. Shipping charges may apply for international delivery.
Q4: What is your typical lead time?
A4: Sample orders: 3-5 working days. Customized products: 5-7 working days. Mass production: 10-15 working days after sample approval.
Q5: Do you offer discounts for large orders?
A5: Yes, we provide tiered discounts based on order quantity and customization level. Please contact us for a tailored quote.
Q6: What is the order process for LED products?
A6:
  1. Share your application and requirements with us.
  2. We provide a quotation based on your needs or our recommendations.
  3. After sample confirmation, you place a formal order with a deposit.
  4. We begin production and keep you updated on progress.
