Description

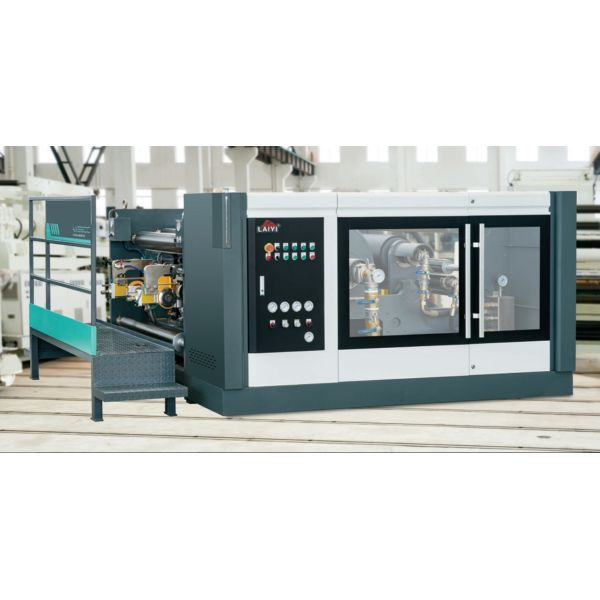

Specially designed Grid Release Film Extrusion Laminating Machine

Advanced Extrusion Laminating Solution for Grid Release Film Manufacturing

The Specially Designed Grid Release Film Extrusion Laminating Machine is engineered for the production of high-quality grid release films used in adhesive materials, self-adhesive labels, medical products, protective films, graphic applications, and industrial composite materials.


By combining advanced extrusion coating technology with precision laminating systems, the machine applies a uniform polyethylene (PE) or functional resin layer onto release paper, PET film, BOPP film, or other substrates while maintaining excellent release performance, dimensional stability, and surface quality.

Designed for high-speed operation and superior product consistency, this extrusion laminating machine provides an ideal solution for manufacturers seeking efficient production, lower operating costs, and premium release film quality.

Technical Specifications
Product Width 1100mm / 1300mm / 1600mm / 1800mm / 2000mm
Substrate PET Film
Polymer LDPE / LLDPE / HDPE / PP
Machinery Speed Maximum 300m/min
Unwind Diameter φ1200mm
Rewind Diameter φ1300mm

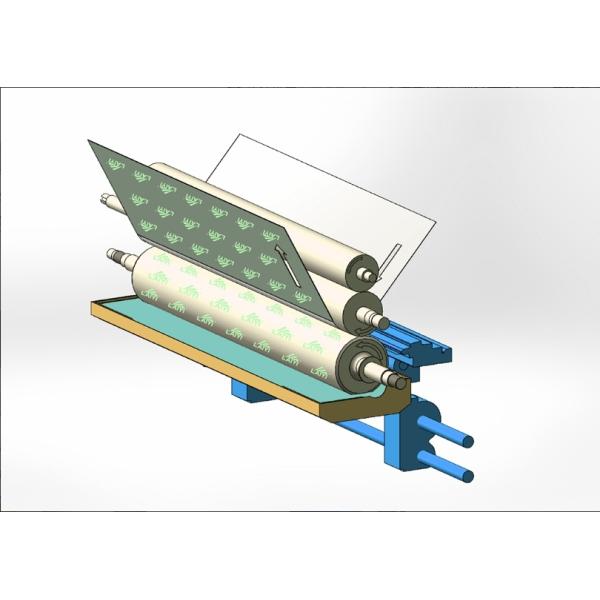

Machine Components
Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine
Performance & Advantages

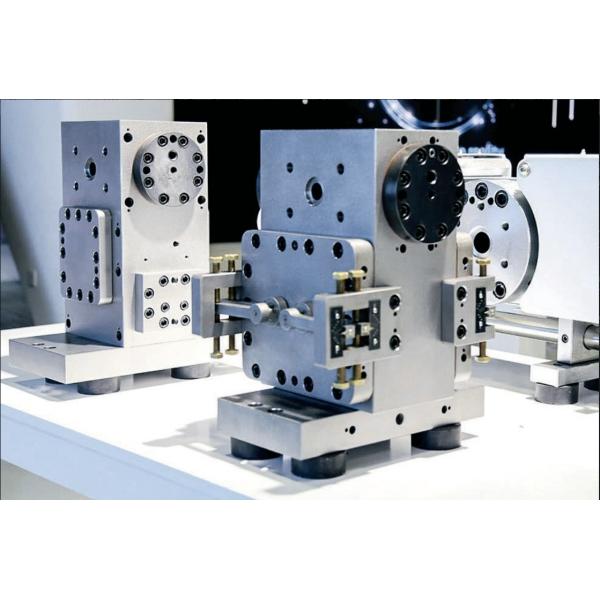

  • Utilizes patented screw technology with high revolving speed, high shear, and high mixing capabilities for superior performance
  • Maintains temperature difference between die lips and polymer below 30°C, significantly enhancing peeling strength
  • Features centrifugally cast alloy layer on barrel inner wall and screw surface for 3x longer service life compared to standard screws
  • Advanced automatic splicing capability at full 300m/min speed without line speed reduction
  • Wear-resistant and energy-efficient design for reduced maintenance and lower operating costs
Applications

The Grid Release Film Extrusion Laminating Machine is widely used for producing:

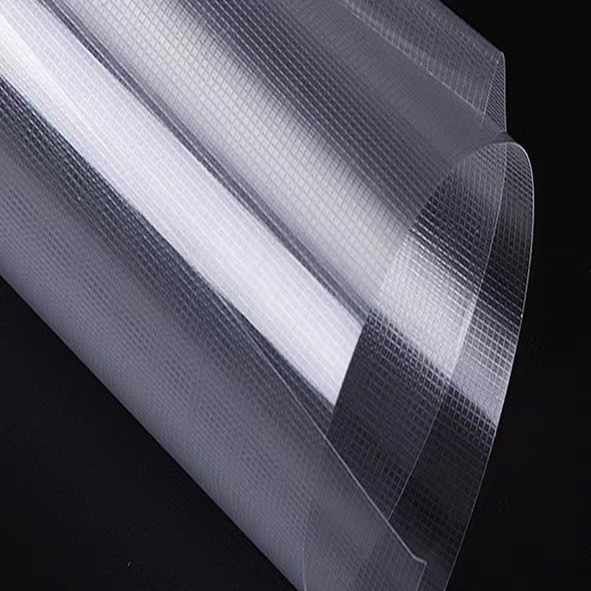

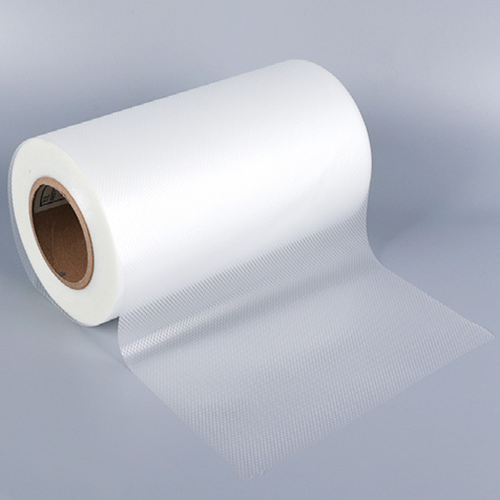

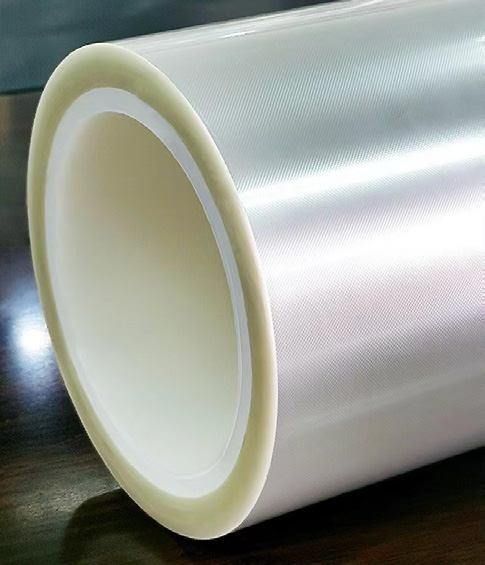

  • Grid Release Film
  • Self-Adhesive Label Release Film
  • Transfer Film Release Liners
  • Medical Adhesive Release Film
  • Protective Film Release Liners
  • Graphic Film Release Materials
  • Industrial Composite Release Film
  • Double-Sided Tape Release Film
  • Automotive Adhesive Release Film
  • Electronic Material Release Film
Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine Specially designed Grid Release Film Extrusion Laminating Machine
