8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing
8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing
8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing
8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing
8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing
8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing
Specifications
Brand Name :
Haida
Model Number :
8040-HD
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Tube Wall :
Normal wall, thin wall, ultra-thin wall
Specification of needle tube :
0.1～4.0mm
Set load :
1.0～100N Accuracy: ±0.01N
Loading speed :
1mm/min(0.1～200mm/min adjustable)
Span range :
5～50mm Accuracy: ±0.01mm
Deflection test :
0～10mm Accuracy: ±0.001mm
Dimension(W*D*H) :
460*380*450mm
Controller :
LCD Controller Type
Power :
AC220V/50Hz
Weight :
28kg
Description
8040-HD Medical Needle Tip Strength and Piercing Force Tester
The 8040-HD Medical Needle Tip Strength and Piercing Force Tester is designed to evaluate the puncture force performance of syringe tips, determining whether the sharpness meets standard requirements. This instrument is also known as a Syringe Puncture Force Tester.
Product Features
  • Tests puncture force performance of syringe tips
  • Evaluates needle sharpness against standard requirements
  • Professional medical testing equipment
Technical Parameters
Feature Description

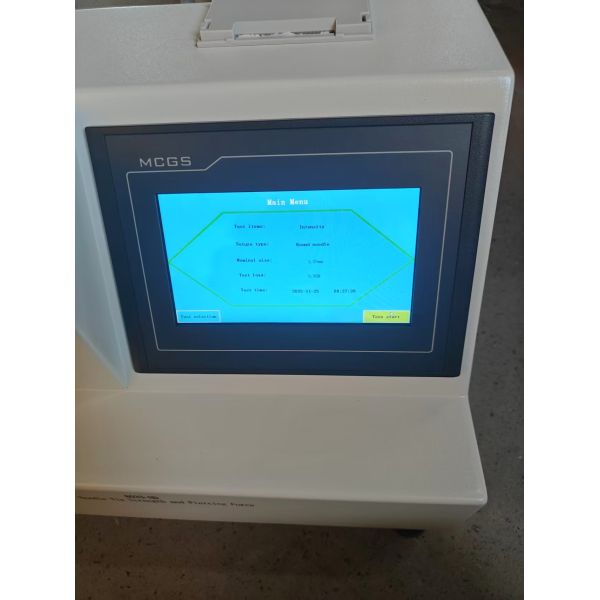

Display 7-inch K600+ core/dot matrix 65-color, 800*480 resolution touch screen with dynamic loading force value display via PLC control system
User Interface Selectable: Chinese / English / Chinese-English switchable
Control & Data Acquisition Digital closed-loop control, AD sampling speed of 500KHz, internal resolution of 500,000
Data & Protection High-precision clock chip, power-off storage; Overload alarm and automatic shutdown protection
Touch Controls Nominal specification, Test item, Applied load, Print, Test, Up, Down, Time, Calibration
Printing Built-in printer outputs test results
About Haida International Equipment Co., Ltd
Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida International Equipment Co., Ltd specializes in the production and R&D of various material physical properties testing equipment. We maintain our own independent research and development center and operate four testing equipment production lines: textile, footwear, leather, and mask. In 2006, our textile, footwear, leather, and mask testing equipment officially entered production and began serving the international market.
8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing 8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing 8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing
Why Choose Haida?
Design & Production
  • Solution consultation for each order
  • Recommendation of the most cost-performance machines
  • Research and development of specialized models for specific requirements
Shipping & Delivery
  • One-stop service from production to delivery
  • Complete delivery to your door including installation and training
  • Comprehensive technical support
Warranty
  • 1-year warranty with lifetime technology support
After-Sale Service
  • Response within 2 hours
  • Combined video inspection and on-site service
Frequently Asked Questions
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we offer technical support and replacement parts. If necessary, our engineers may provide on-site service at your location.
Q: What is the order process?
A: Inquiry → Quotation → Requirement confirmation → Order confirmation → Payment → Production → Testing and debugging → Packing → Document confirmation → Delivery arrangement → Product shipment → Customer receipt → After-sales service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory. We will help arrange hotel accommodations and provide airport pickup service.
Q: Do you accept customization service?
A: Yes, we offer both standard machines and customized equipment according to your specific requirements. Please share your needs with us, and we will do our best to meet them.
