High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment
High Voltage Tracking Resistance Test Machine / Glow Wire Test Equipment
Specifications
Brand Name :
Haida
Model Number :
6007-HD
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Test Channels :
5 independent test groups
Voltage Stability :
±1%
Test Voltage Range :
100V-6000V (continuously adjustable)
Output Voltage Mode :
AC/DC (switchable)
Voltage Regulator :
Output: 0-250V adjustable; Capacity: 5kVA
Test Duration :
6 hours
Droplet Interval :
Adjustable: 0-99.99 seconds/minutes/hours
Chamber Volume :
900L × 650W × 950H (mm); 0.56 m³
Power Supply :
AC 220V,50Hz,1KVA
Description

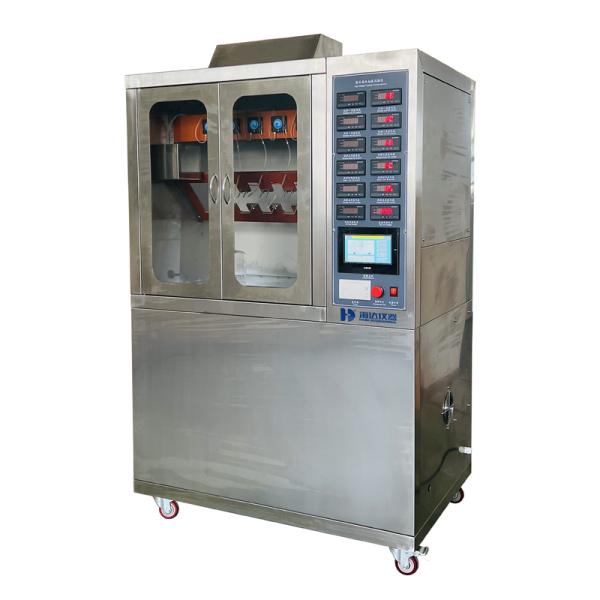

High Voltage Tracking Resistance Tester
Product Description


This instrument is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. It simulates severe environmental conditions by applying liquid contaminants and inclined samples under power frequency (45Hz-65Hz) to assess the tracking and erosion resistance grades of electrical insulation materials.

Test Standard

The tester strictly complies with GB/T 6553-2014 and IEC 60587:2007 standards.
Product Specifications
Model 6007-HD
Test Channels 5 independent test groups.
Voltage Stability ±1%
Test Voltage Range 100V-6000V (continuously adjustable)
Output Voltage Mode AC/DC (switchable)
Voltage Regulator Output: 0-250V adjustable; Capacity: 5kVA
Test Transformer Capacity: 5kVA; Max. output voltage: AC 6000V
High-Precision Stabilizer Output: AC 220V; Power: 6000W; Accuracy: ±1%
Electrodes Material: 304 stainless steel, thickness: 0.5mm; Electrode spacing: 50.0mm ±0.1mm
Overcurrent Protection Trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Tracking Criteria Per GB/T 6553-2014 Clause 4.1.2: Voltage applied (2.5kV/3.5kV/4.5kV) with contaminant flow; current must remain below 60mA for 6 hours to pass.
Test Duration 6 hours.
Droplet Interval Adjustable: 0-99.99 seconds/minutes/hours
Droplet System High-precision peristaltic pump (LEAF); Flow rate: 0.00185-20 mL/min; Speed: 0.1-50 rpm; Accuracy: <0.5%.
Test Solution Mixture of ammonium chloride, isooctylphenoxy polyethoxy ethanol (nonionic wetting agent), and deionized water. Resistivity: (3.95 ±0.05) Ω·m at (23±1)°C
Filter Paper Standard dimensions; Thickness: 0.15-0.17mm
Chassis Material SUS304 stainless steel (brushed finish)
Contaminant Tank 316 stainless steel with sealed design.
Chamber Volume 900L × 650W × 950H (mm); 0.56 m³
Overall Dimensions 1300L × 700W × 1800H (mm)
Control System PLC + touchscreen; Automated report generation; Built-in thermal printer for real-time results.
Design Features Integrated structure with control panel on the right
Glass-view door for observation
Top-mounted exhaust fan for fume extraction post-test
