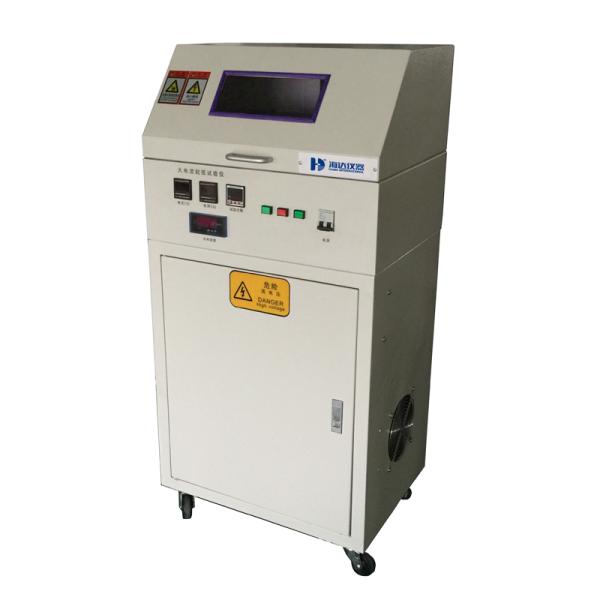

Lab High-Current Arc Tester / Flammability Testing Equipment
Lab High-Current Arc Tester / Flammability Testing Equipment
Specifications
Brand Name :
Haida
Model Number :
6009-HD
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Test Voltage :
220V-240V
Electrode Separation Speed :
254mm ±25mm per second
Arc Frequency :
Approximately 40 arcs per minute
Power Supply :
AC 220V,50Hz,1KVA
Test Electrodes 1 :
Fixed Electrode: Solid copper conductor (Ø3.5mm) with a 30° beveled tip
Test Electrodes 2 :
Moving Electrode: Stainless steel rod (Ø3mm) with a 60° conical tip
Description
High-Current Arc Resistance to Ignition Tester
Product Description


This tester is designed to evaluate the arc resistance performance of electrical/electronic products, household appliances, and their materials. It simulates leakage currents between live parts of opposite polarity or between live parts and grounded metal components, measuring and assessing the arc resistance of insulating materials under specified voltages.

Test Standard


IEC 60950, GB/T 4943.

Product Specifications
Model 6009-HD
Test Voltage 220V-240V
Electrode Separation Speed 254mm ±25mm per second
Arc Frequency Approximately 40 arcs per minute.
Test Electrodes Fixed Electrode: Solid copper conductor (Ø3.5mm) with a 30° beveled tip
Moving Electrode: Stainless steel rod (Ø3mm) with a 60° conical tip
Electrodes are positioned at a 45° angle to the horizontal plane; tip curvature radius <0.1mm.
Short-Circuit Current Adjustable inductive load to achieve a power factor of 0.5 and short-circuit current of 33A
Key Features Integrated test chamber and load box (upper section for testing, lower for load). Enclosure: Painted steel with stainless steel/brass components. Electrodes: Copper (fixed) and stainless steel (moving), resistant to high temperatures and corrosion.
Power Supply AC 220V, 50Hz

Lab High-Current Arc Tester / Flammability Testing Equipment

About us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Lab High-Current Arc Tester / Flammability Testing Equipment
Lab High-Current Arc Tester / Flammability Testing Equipment
Lab High-Current Arc Tester / Flammability Testing Equipment
Lab High-Current Arc Tester / Flammability Testing EquipmentLab High-Current Arc Tester / Flammability Testing Equipment


Why choose us?Lab High-Current Arc Tester / Flammability Testing Equipment
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
