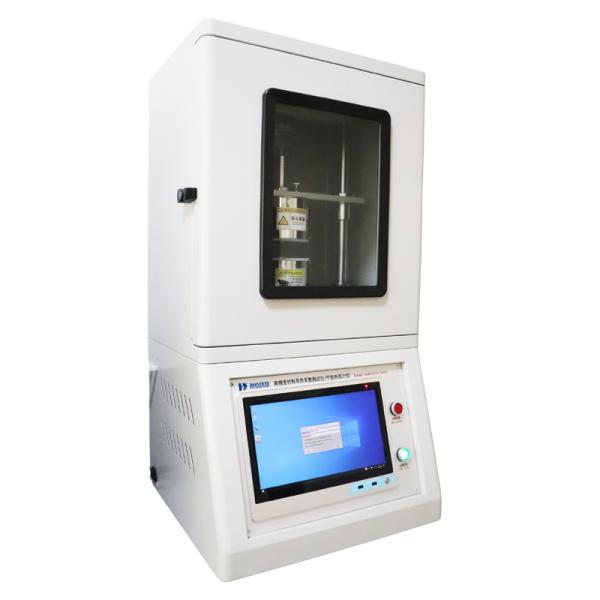

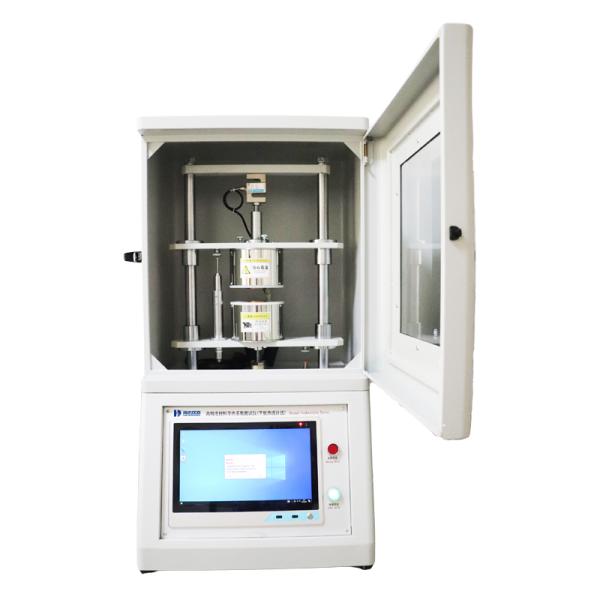

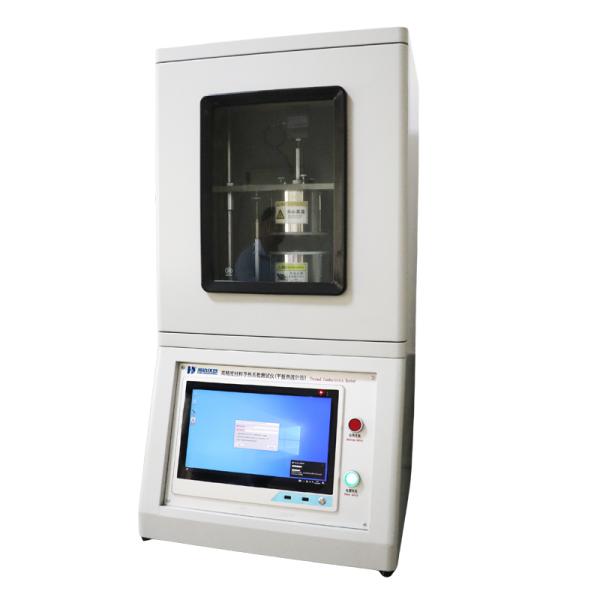

HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method
HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method
HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method
HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method
HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method
HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method
Specifications
Brand Name :
Haida
Model Number :
60086-HD
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Usage :
Quality Control and Testing
Ozone Produced Mode :
Ozone generator or UV absorption method
Test Mode A :
Room temperature
Dispaly :
Digital
Test Speed :
Adjustable
Product :
rubber testing equipment
Screw Speed :
0~150 r.p.m
Frenquency Range :
0 . 5-600HZ
Outside Dimension :
280×290×450 mm
Control Method :
Computer automatic test
Optical Magnification :
100 times
Constant Temperature :
50℃± 0.5℃ and 100℃± 0.5℃
Temperature Rang :
normal temperature~200℃
Electric Heating Power :
AC220V±10%50HzAC220V±10%50Hz
Testing Standards :
ASTM, ISO, GB, JIS, etc.
Cylinder :
Diameter 9.5504±0.0076mm
Probe Diameter A :
7.5 mm
Injection Capacity :
40*65 cm³
Air Supply :
0.6MPa
Specification :
20-88HRA, 20-100HRB, 20-70HRC
Description
HD-60086
Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)

Thermal Conductivity Tester adopts the internationally popular method of heat flow meter to detect thermal conductivity and thermal resistance, with computer to realize fully automatic detection and generation of experimental report. The instrument adopts to add stable hot surface temperature on one side of the specimen, the heat is transferred to the cold surface through the specimen, and the transferred heat flow is measured to calculate the thermal conductivity and thermal resistance. Adopting imported sensors and computer technology, it is characterized by good measurement accuracy, high reliability and good repeatability. Especially suitable for low thermal conductivity measurement (accurate to 0.1mw). It can be used for testing plastics, rubber, thermal insulation materials, aerogel panels, vacuum glass, etc. It is widely used in colleges and universities, scientific research institutes, quality inspection, factories and mines.

HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method

Technical Paramet

​

Item
Parameters
Thermal conductivity range
0.0001 ~ 1W / m-k, can be measured accurately to 0.1mw / m-k
0.001 ~ 300W / m-k. computer automatically switch range
Measuring accuracy
1%
Specimen size
50*50 ~ 150*150, 150*150 ~ 300*300(mm) optional (standard configuration), the thickness is not greater than 50mm.
Sample state
Can test solid material, powder material
Measuring time
15~20 min
Hot surface temperature range
RT~ 99.9 ºC (standard configuration), RT ~ 299.9 ºC, RT ~ 499.9 ºC optional
Hot surface temperature control
Plate heater, bi-directional SCR control, temperature control accuracy 0.1ºC
Cold surface temperature range
0 ~ 99.9 ºC (standard configuration), -10 ~ 99.9 ºC, according to user requirements to determine the lower temperature
Cold surface temperature control
Water-cooled to ensure the stability of the cold surface temperature (precision thermostatic water tank, temperature adjustable),
temperature control accuracy of 0.1 ºC
Specimen clamping pressure range
0 ~ 1000N, resolution 0.1N
Sample thickness range
Measure automatically, 0 ~ 50mm, resolution 1um
Heat flow meter
Imported original heat flow meter
Data storage
Computerized automatic testing and storage printing and storage of experimental data
Machine dimension
(L*W*H)550*450*1500mm
Machine weight
Approx. 100KG
Water bath dimension
(L*W*H)300*350*530mm
Water bath weight
Approx. 35KG
Power
1∮ AC 220V 1KW
Standards
GB/T10295-2008, ASTM E1530, ASTM C518-04, ISO 8301, DIN EN 12664
