Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing
Specifications
Brand Name :
Haida
Model Number :
60084-HD
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Usage :
Quality Control and Testing
Transformer Capacity :
1000VA
Runway :
Length 100mm
Impact Angle :
90 degree
Temperature Tester :
Room temperature to 200°C
Dimension :
650mm×400×830mm
Current Measurement Range :
10pA~1mA
Fixture Load :
2.5N
Ozone Produced Mode :
Ozone generator or UV absorption method
Test Mode A :
Room temperature
Dispaly :
Digital
Test Speed :
Adjustable
Application :
Industrial
Display Mode :
touch screen display
Ball Weight :
357,533,1042,2280 g
Swing Range :
R300mm
Timing Range :
0-10000h
Abrasion Wheel :
2
Specimen Holder :
Inner groove width 12mm
Load :
1kg,(or specified)
Cutting Speed :
100~3000mm/min adjustable
Horizontal :
500mm * 250mm * 500m
Description

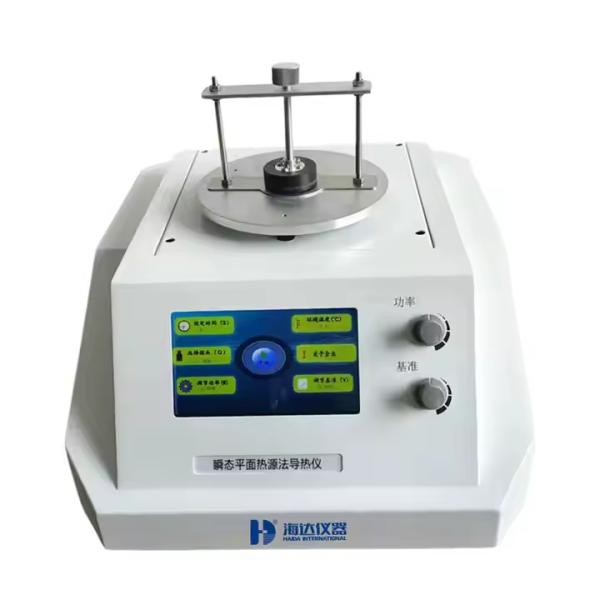

HD-DRL-S Thermal Conductivity Tester(TPS Method)

Description:

Thermal conductivity tester based on transient plane heat source technology (TPS). This product is independently developed by AVIC Dingli Instruments. It has stable test performance and strong data processing and analysis capabilities. It can be used to measure the thermal conductivity of various types of materials.

Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing

Technical Paramet

​

Thermal conductivity range 0.00001~300W/(m*K)
Measuring temperature range RT~130ºC
Probe diameter Probe No. 1: φ7.5mm;
Probe No. 2: φ15mm
Measuring time 5~160 seconds
Sample temperature rise < 15ºC
Sample size Probe No. 1 sample: ≥7.5*7.5*3.75mm;
Probe No. 2 sample: ≥15*15*7.5mm
Note: Probe No. 1 measures thinner low-conductivity materials. If the surface of the sample to be measured is smooth and sticky, the sample can be stacked
Test sample power P Probe No. 1 power: 0<P<1w;
Probe No. 2 power: 0<P<20w
Accuracy of measurement results ±3%
Control mode Computer and software, software can export PDF Report, can export EXECL data
Protection system Circuit with overload protection prompt
Sample testing clamps Powder sample test container, liquid sample test cup, solid sample test fixture for optional
Power AC 220V±10%, 50/60 Hz, 500W
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask TestingMultiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask TestingMultiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask TestingMultiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing

​​​

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask TestingMultiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask TestingMultiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing


Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing

Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing

Multiple Properties Thermal Conductivity Tester For Rubber Plastic Test Equipment / Mask Testing

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
